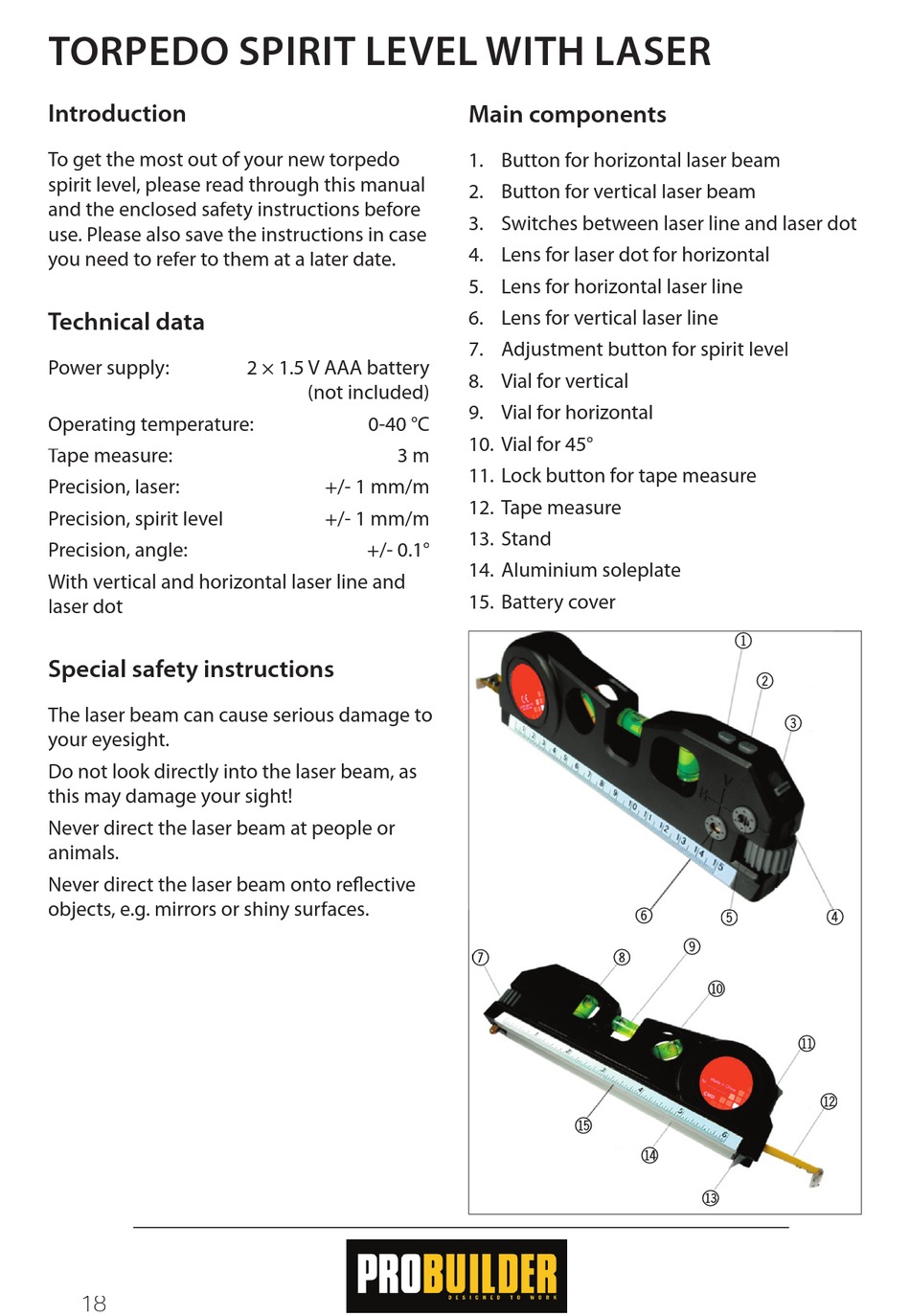

TORPEDO SPIRIT LEVEL WITH LASER
Introduction
To get the most out of your new torpedo
spirit level, please read through this manual
and the enclosed safety instructions before
use. Please also save the instructions in case
you need to refer to them at a later date.

Technical data

Power supply:
Operating temperature:
Tape measure:
Precision, laser:
Precision, spirit level
Precision, angle:
With vertical and horizontal laser line and
laser dot

Special safety instructions

The laser beam can cause serious damage to
your eyesight.
Do not look directly into the laser beam, as
this may damage your sight!
Never direct the laser beam at people or
animals.
Never direct the laser beam onto re� ective
objects, e.g. mirrors or shiny surfaces.
18
2 × 1.5 V AAA battery
(not included)
0-40 °C
3 m
+/- 1 mm/m
+/- 1 mm/m
+/- 0.1°

Main components

1. Button for horizontal laser beam
2. Button for vertical laser beam
3. Switches between laser line and laser dot
4. Lens for laser dot for horizontal
5. Lens for horizontal laser line
6. Lens for vertical laser line
7. Adjustment button for spirit level
8. Vial for vertical
9. Vial for horizontal
10. Vial for 45°
11. Lock button for tape measure
12. Tape measure
13. Stand
14. Aluminium soleplate
15. Battery cover
6 6
8
7 7
bq
1
2
3
5 5
9 9
bl
bm
bp
bo bo
4 4
bn bn
