• Lock the eccentric lever (5) position by lowering it down.
• The mount with the IR illuminator should be located as close as possible
to the body of the riflescope lens.
• In case of loosening or insufficient fixing of the IR-illuminator on the
riflescope, raise the eccentric lever (5) and tighten the adjustment
screw by 1-2 turns. Then lower the lever and check the fixation of the
IR-illuminator on the riflescope. If necessary, repeat the above steps until
the required degree of fixation of the IR-illuminator is achieved.
Switching on and adjusting the IR illuminator
• Turn on the IR illuminator by pressing the button (7) on the side of the
illuminator housing.
• Turn the knob (8) of the IR illuminator to adjust the lighting power.
• To adjust the light spot position in the riflescope field of view, loosen the ring
(9) of the IR illuminator by turning it in the direction of the arrow, see Fig. 2.
• Use the hinge system of the IR illuminator lens, to achieve the required
position of the light spot in the riflescope field of view. Once well
adjusted, fix the IR illuminator ring (8).
• Turn off the IR illuminator by pressing the IR button.

Maintenance

Clean the outer surface with a cloth slightly soaked in synthetic detergent.
Flick the dust off the lenses with a soft brush. If necessary, clean the lens
with a soft cotton cloth moistened with ethyl alcohol or special multi-layer
lens liquid.
Condensation may form on optical surfaces when moving the illuminator
from cold to warm. It is a common occurrence and the condensate should
disappear within an hour.
3
ENGLISH

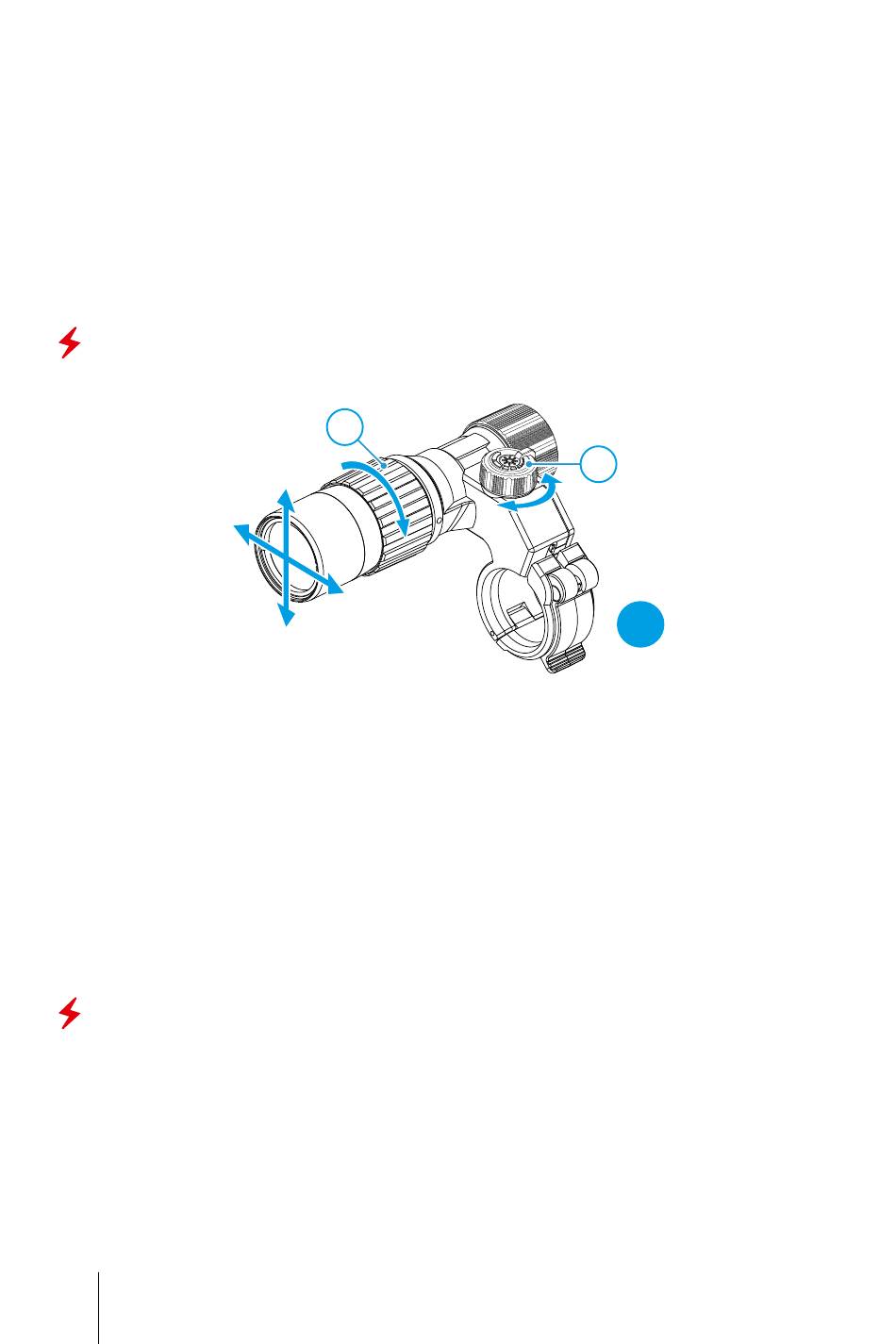

9 Ring
8
Knob
Fig.
2
