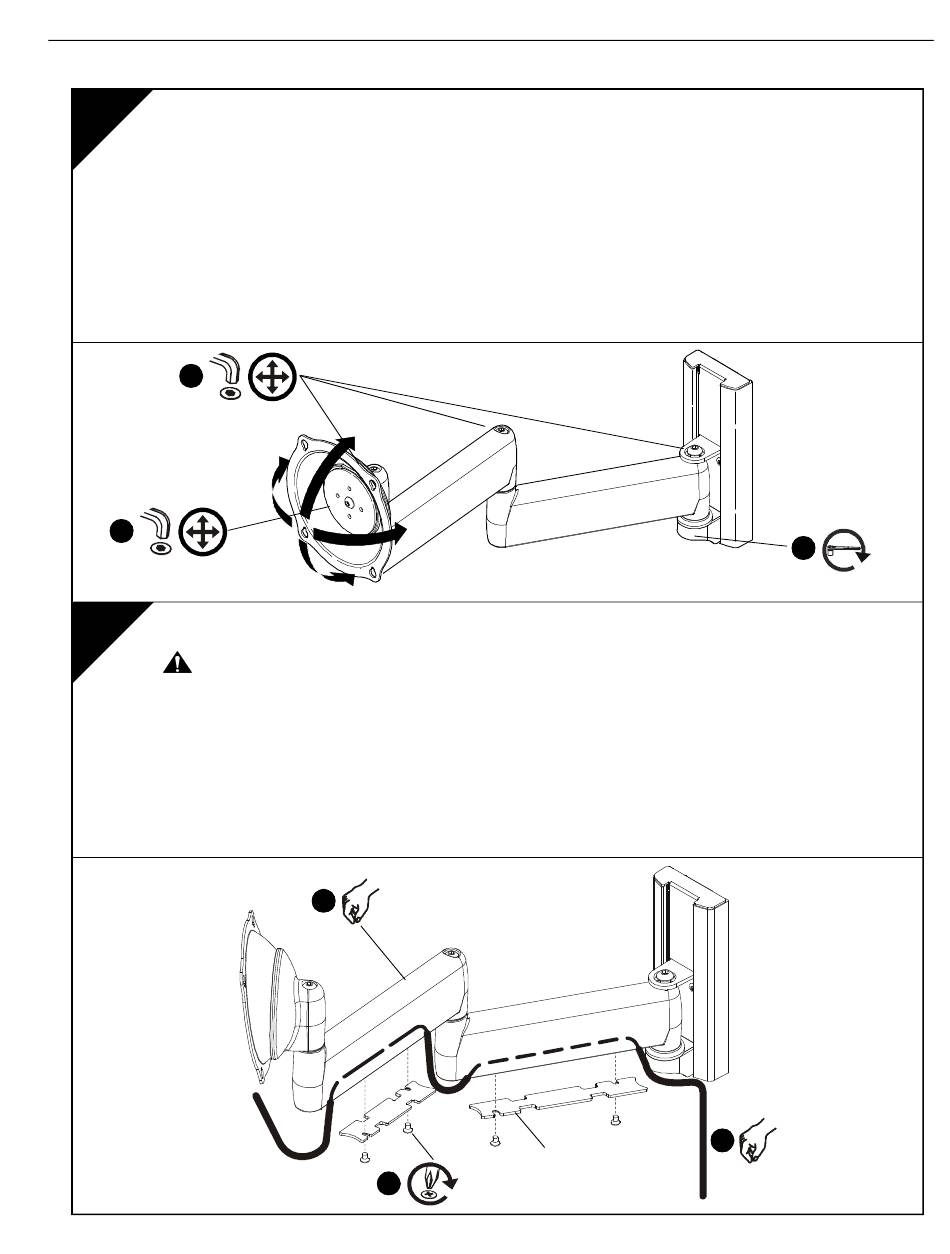

ADJUSTMENT

1. To adjust pitch tension, slightly loosen or tighten adjustment screw as required using hex key (K).
NOTE:
If display is mounted to swing arm (A) then first disconnect all cables and remove display
(Refer to "INSTALL DISPLAY").
2. To adjust extension and swivel tension, slightly loosen or tighten adjustment screws as required using hex
keys (K, S).
2
1

CABLE MANAGEMENT

5
CAUTION:
pinched by installation of covers (D) or screws (J).
1. Move swing arm (A) to fully extended position.
2. Carefully position cables in cavity located in lower portion of each arm.
3. Using Phillips screwdriver, install covers (D) using screws (J).
Ensure that adequate cable slack exists for movement of display, and that cables will not be
1
A
3
D x2
J x4
iCMPDA1
2
9/16" (14.2mm)
2
