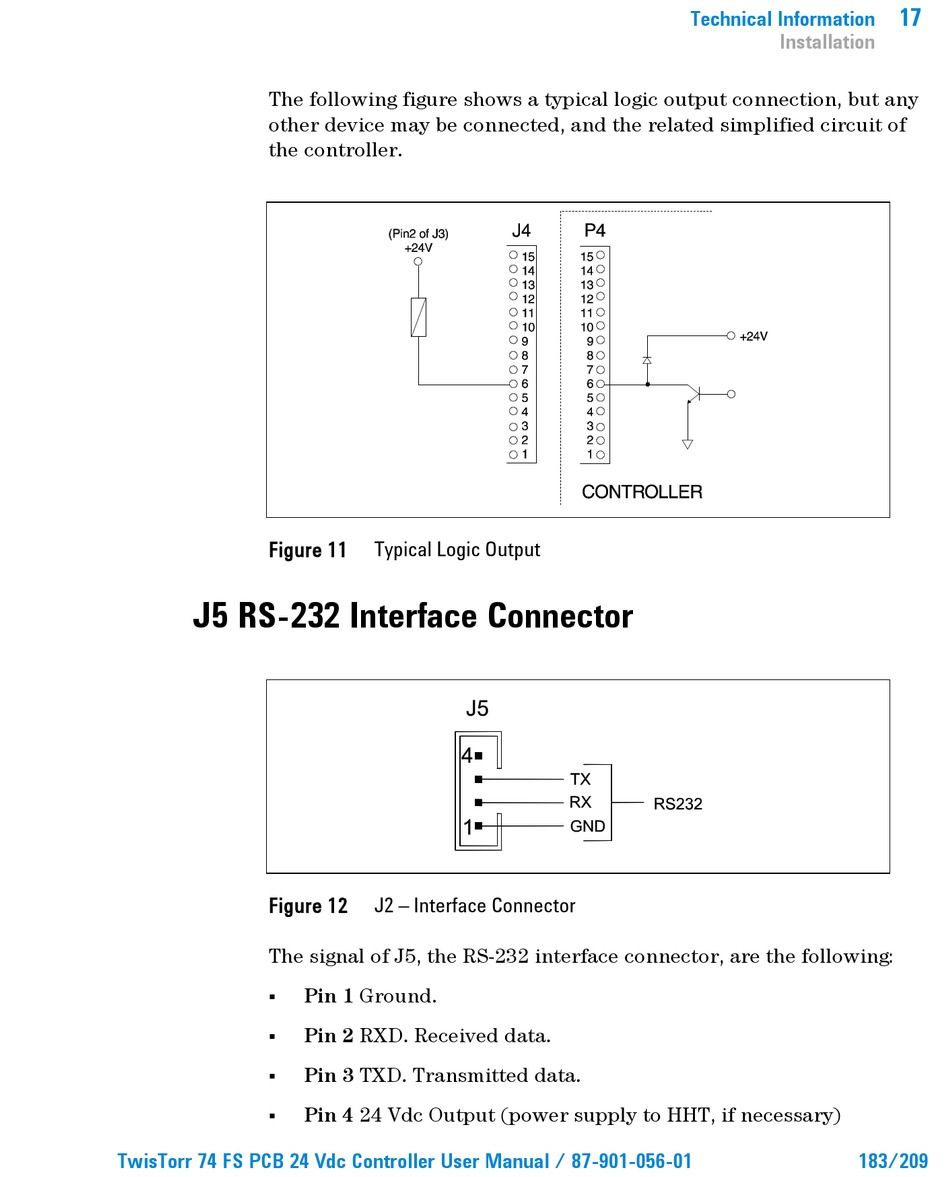

The following figure shows a typical logic output connection, but any
other device may be connected, and the related simplified circuit of
the controller.
Figure 11

J5 RS-232 Interface Connector

Figure 12
The signal of J5, the RS-232 interface connector, are the following:




TwisTorr 74 FS PCB 24 Vdc Controller User Manual / 87-901-056-01
Typical Logic Output
J2 – Interface Connector
Pin 1 Ground.
Pin 2 RXD. Received data.
Pin 3 TXD. Transmitted data.
Pin 4 24 Vdc Output (power supply to HHT, if necessary)
