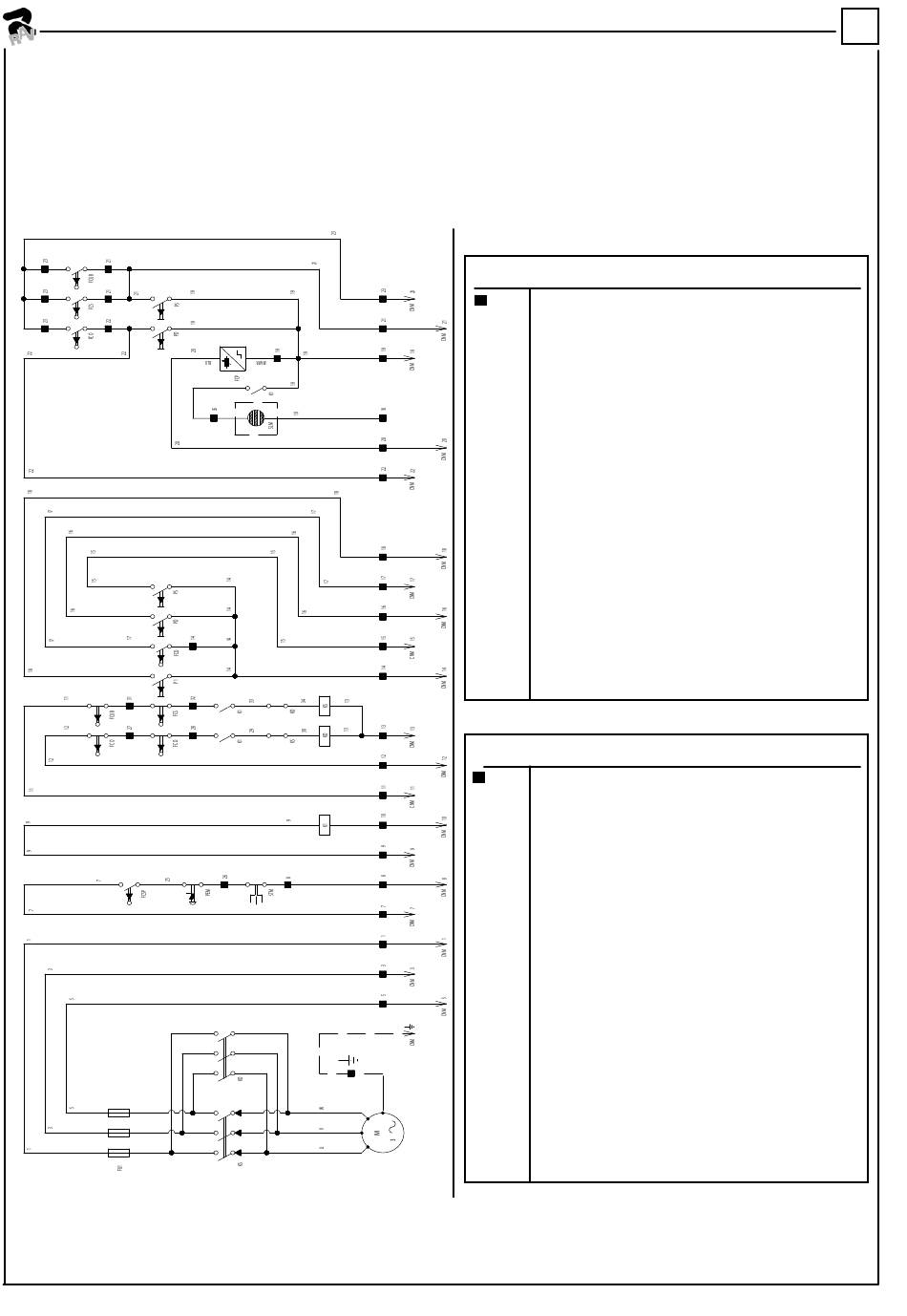

11.2 IMPIANTO ELETTRICO QUADRO SECONDARIO
11.2 WIRING DIAGRAM SECONDARY BOARD
11.2 ELEKTRISCHEN ANLAGE -
ZUSATZSCHALTTAFEL
30
11.2 INSTALLATION ELECTRIQUE -
TABLEAU SECONDAIRE
11.2 INSTALACIÓN ELECTRICA CUADRO SECUNDARIO
REF.
NOMENCLATURA
-
MORSETTO
TR
TRASFORMATORE 200VA Vp 0/230/400 Vs 0/18 0/24
KL
CONTATTORE DI LINEA
SC
COMMUTTATORE SELEZIONE COPPIE COLONNE
KSF
RELE' CONTROLLO SEQUENZA FASI
K3/4
RELE' EMERGENZA
K2
RELE' COMANDO DISCESA
K1
RELE' COMANDO SALITA
PRD
PONTE RADDRIZZATORE
PLC
CONTROLLO LOGICO PROGRAMMABILE
PEM
PULSANTE EMERGENZA A FUNGO
PD
PULSANTE DISCESA
M I/O
INGRESSO/USCITA
L2
SPIA ROSSA EMERGENZA E BLOCCO
L1
SPIA BIANCA SEQUENZA FASI CORRETTA
IG
INVERTITORE GENERALE 1-0-2 (40A)
FU5
FUS. PROTEZIONE 24Vdc PLC 5x20 1A 250V RAPIDO
FU4
FUSIBILE PROTEZIONE SECONDARIO TR (18V)
5x20 4A 250V RAPIDO
FU3
FUSIBILE PROTEZIONE SECONDARIO TR (24V)
5x20 4A 250V RAPIDO
FU2
FUS. PROTEZIONE PRIMARIO TR 10.3x38 2A 500V aM
FU0
TERNA FUS. PROT. LINEA 14x51 32A 500V aM
D
DIODO 1N 4003
CNF9
CONNET. CANNON 15-POLI, INTERCONNS. CONSOLLE
CNF5/6/7/8 CONNETTORE FEMMINA COLONNA SATELLITI
C
CONDENSATOTE ELETTROLITICO 4700 microF 50V
REF.
DENOMINATIONS
-
TERMINAL
TR
TRANSFORMER 200VA Vp 0/230/400 Vs 0/18 0/24
KL
LINE CONTACTOR
SC
PAIR POST SELECTION SWITCH
KSF
PHASE SEQUENCE CONTROL RELAY
K3/4
EMERGENCY RELAY
K2
DOWN CONTROL RELAY
K1
UP CONTROL RELAY
PRD
RECTIFIER JUMPER
PLC
LOGIC PROGRAMMABLE CONTROLLER
PEM
EMERGENCY PUSH-BUTTON (MUSH-ROOM SHAPE)
PD
DOWN BUTTON
M I/O
INPUT /OUTPUT MODULE
L2
BLOCK AND EMERGENCY RED WARNING LIGHT
L1
CORRECT PHASE SEQUENCE WHITE WARNING LIGHT
IG
MAIN INVERTER 1-0-2 (40A)
FU5
PROTECTION FUSE 24Vdc PLC 5x20 1A 250V QUICK
FU4
SECONDARY PROTECTION FUSES TR (18V)
5x20 4A 250V QUICK
FU3
SECONDARY PROTECTION FUSES TR (24V)
5x20 4A 250V QUICK
FU2
PRIMARY PROTECTION FUSES TR 10.3x38 2A 500V aM
FU0
TRIPLET OF MOTOR LINE FUSES 14x51 32A 500V aM
D
DIODE 1N 4003
CNF9
CANNON 15-POLE FEMALE CONNECTOR, INTERCONNS.
CNF5/6/7/8 FEMALE CONNECTOR TO SATELLITE POSTS
C
ELECTROLYTIC CAPACITOR 4700 microF 50V
0525-M027-0
11
