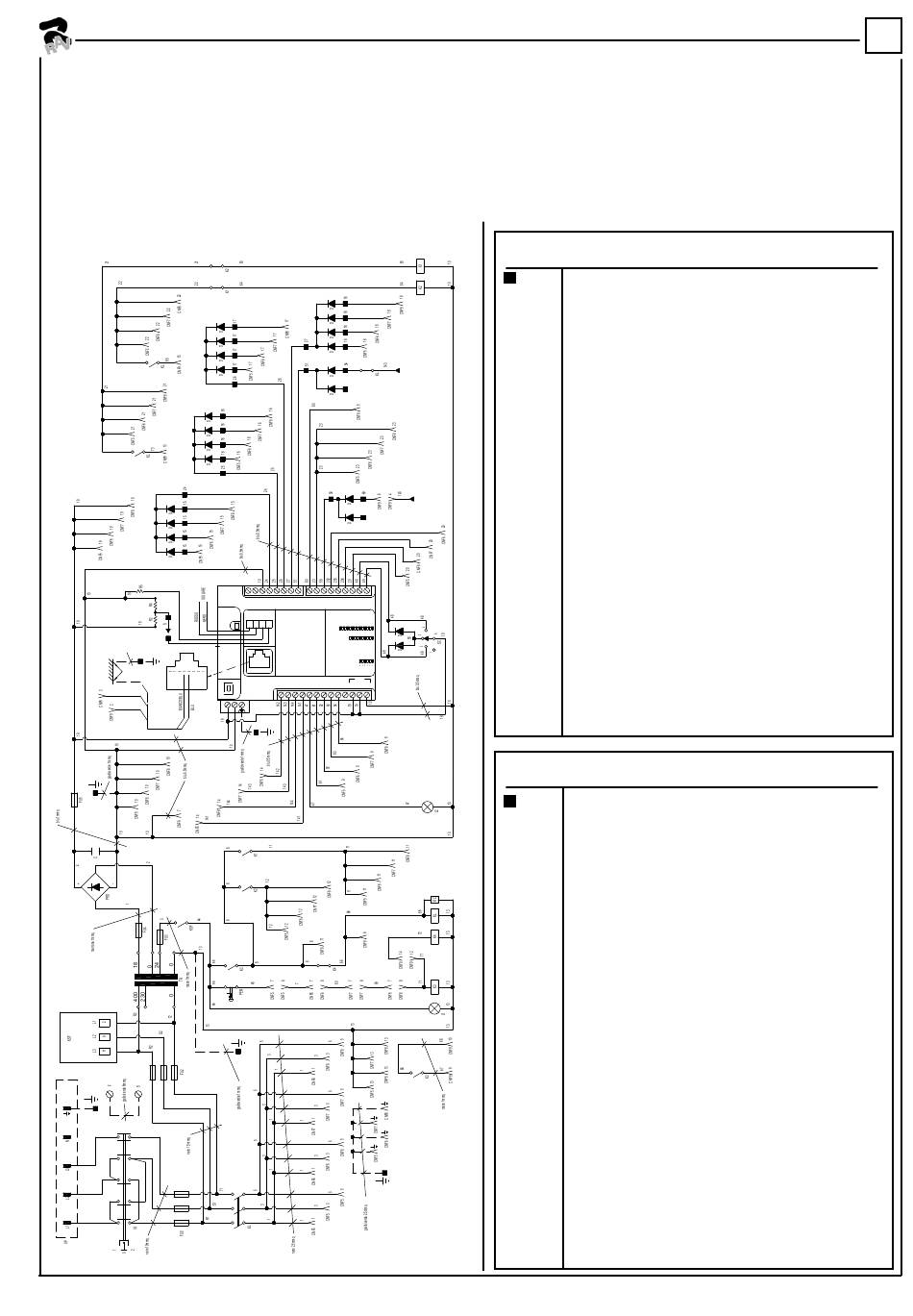

11.1 IMPIANTO ELETTRICO PANNELLO C6-C8
11.1 WIRING DIAGRAM PANEL C6-C8
11.1 ELEKTROANLAGE ANLAGE - TAFEL C6-C8
11.1 INSTALLATION ELECTRIQUE - TABLEAU C6-C8
11.1 INSTALACIÓN ELECTRICA CUADRO C6-C8
NERO
NC
- + + -
RUN
STOP
NERO
ROSSO
giallo/verde 1mmq
VITE CNF0
SCHERMO
BIANCO/BLU
BLU
24V
0V
O 1
O 1
202
203
204
20
NC
COM
I0
I1
I2
I3
I4
I5
I6
I7
I8
I9
I10
I11
I12
I13
Analog IN
AI1
AI0
IN
0
1
2
3
4
5
6
7
8
9
10
11
12
13
0
1
2
3
4
5
6
7
8
9
OUT
DC IN
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
Q8
Q9
V+
V+
V-
REF.
NOMENCLATURA
-
MORSETTO
XP
SPINA A PARETE 32A 3P+N+T
TR
TRASFORMATORE 200VA Vp 0/230/400 Vs 0/18 0/24
KL
CONTATTORE DI LINEA
SC
COMMUTTATORE SELEZIONE COPPIE COLONNE
S
PONTICELLO RICONOSCIMENTO COME SLAVE
R5
RESISTENZA 1/4W 220 Ohm
R4
RESISTENZA 1/4W 5,6K
R2
RESISTENZA 1/4W 10K
RC
FILTRO ANTIDISTURBO
KSF
RELE' CONTROLLO SEQUENZA FASI
K3/4
RELE' EMERGENZA
K2
RELE' COMANDO DISCESA
K1
RELE' COMANDO SALITA
PRD
PONTE RADDRIZZATORE
PLC
CONTROLLO LOGICO PROGRAMMABILE
PEM
PULSANTE EMERGENZA A FUNGO
L2
SPIA ROSSA EMERGENZA E BLOCCO
L1
SPIA BIANCA SEQUENZA FASI CORRETTA
IG
INVERTITORE GENERALE 1-0-2 (40A)
FU5
FUS. PROTEZIONE 24Vdc PLC 5x20 1A 250V RAPIDO
FU4
FUSIBILE PROTEZIONE SECONDARIO TR (18V)
5x20 4A 250V RAPIDO
FU3
FUSIBILE PROTEZIONE SECONDARIO TR (24V)
5x20 4A 250V RAPIDO
FU2
FUS. PROTEZIONE PRIMARIO TR 10.3x38 2A 500V gl
FU0
TERNA FUS. PROT. LINEA 14x51 32A 500V aM
D
DIODO 1N 4003
CNF9
CONNET. CANNON 15-POLI, INTERCONNS. CONSOLLE
CNF5/6/7/8 CONNETTORE FEMMINA COLONNA SATELLITE
C
CONDENSATOTE ELETTROLITICO 4700 microF 50V
REF.
DENOMINATIONS
-
TERMINAL
XP
32A 3P+N+T PLUG
TR
TRANSFORMER 200VA Vp 0/230/400 Vs 0/18 0/24
KL
LINE CONTACTOR
SC
PAIR POST SELECTION SWITCH
S
SLAVE CONNECTION
R5
1/4W 220 Ohm RESISTANCE
R4
1/4W 5,6K RESISTANCE
R2
1/4W 10K RESISTANCE
RC
NOISE FILTER
KSF
PHASE SEQUENCE CONTROL RELAY
K3/4
EMERGENCY RELAY
K2
DOWN CONTROL RELAY
K1
UP CONTROL RELAY
PRD
RECTIFIER JUMPER
PLC
LOGIC PROGRAMMABLE CONTROLLER
PEM
EMERGENCY PUSH-BUTTON (MUSH-ROOM SHAPE)
L2
BLOCK AND EMERGENCY RED WARNING LIGHT
L1
CORRECT PHASE SEQUENCE WHITE WARNING
LIGHT
IG
MAIN INVERTER 1-0-2 (40A)
FU5
PROTECTION FUSE 24Vdc PLC 5x20 1A 250V QUICK
FU4
SECONDARY PROTECTION FUSES TR (18V)
5x20 4A 250V QUICK
FU3
SECONDARY PROTECTION FUSES TR (24V)
5x20 4A 250V QUICK
FU2
PRIMARY PROTECTION FUSES TR 10.3x38 2A 500V gl
FU0
TRIPLET OF MOTOR LINE FUSES 14x51 32A 500V aM
D
DIODE 1N 4003
CNF9
CANNON 15-POLE FEMALE CONNECTOR, INTERCONNS.
CNF5/6/7/8 FEMALE CONNECTOR TO SATELLITE POSTS
C
ELECTROLYTIC CAPACITOR 4700 microF 50V
0525-M027-0
11
29
