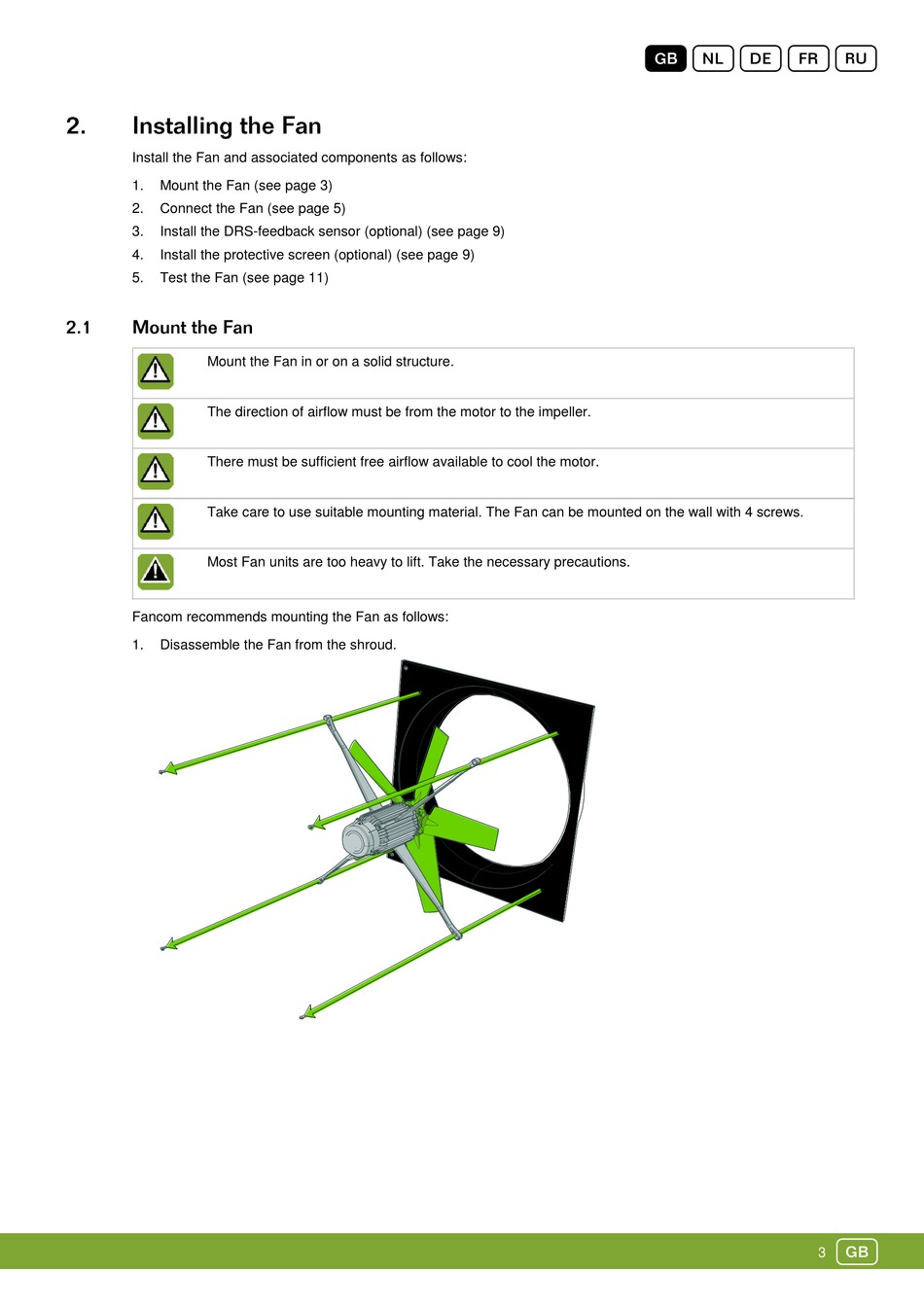

Fancom FAN COMPLETE Anleitung Seite 6

Install the Fan and associated components as follows:
1. Mount the Fan (see page 3)
2. Connect the Fan (see page 5)
3. Install the DRS-feedback sensor (optional) (see page 9)
4. Install the protective screen (optional) (see page 9)
5. Test the Fan (see page 11)
Mount the Fan in or on a solid structure.
The direction of airflow must be from the motor to the impeller.
There must be sufficient free airflow available to cool the motor.
Take care to use suitable mounting material. The Fan can be mounted on the wall with 4 screws.
Most Fan units are too heavy to lift. Take the necessary precautions.
Fancom recommends mounting the Fan as follows:
1. Disassemble the Fan from the shroud.
Gndfr
g
3
