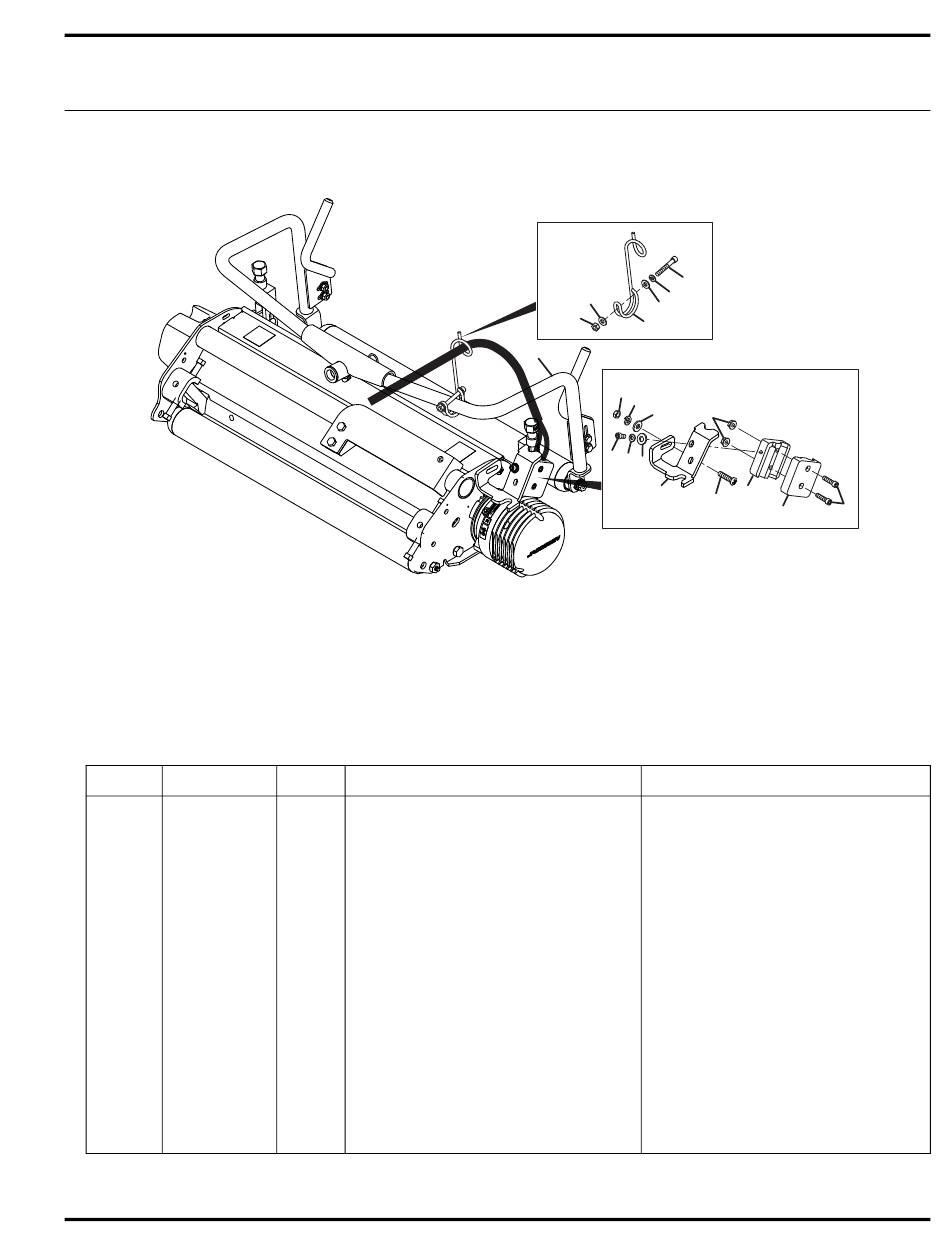

21.1 Floating Head Motor Clamp
Item Part No.
4244463
1
2 4244850
3 434029
4 445784
5 4246112
6 434011
7 446130
8 453023
9 434054
10 443102
11 4244893
12 404022
Qty. Description
1 Clamp, Front Cordset Connector
1 Clamp, Rear Cordset Connector
2 Screw, 1/4-20 x 1" Hex Socket
2 Nut, 1/4-20 Whizlock Flange
1 Bracket, Clamp
1 Screw, 1/4-20 x 5/8" Socket Head
3 Lockwasher, 1/4 Heavy
4 Flat Washer, 1/4
1 Screw, 1/4-20 x 1-3/4" Socket Head
2 Nut, 1/4-20 Hex
1 Support, Cable
1 Screw, 1/4-20 x 1" Truss Head
9
8
7
8
10
11
B
10
7
8 4
6 7
8
5
12
Serial Numbers/Notes
> Change from previous revision
ECLIPSE
Serial No. All
2
3
1
