Installation Instructions

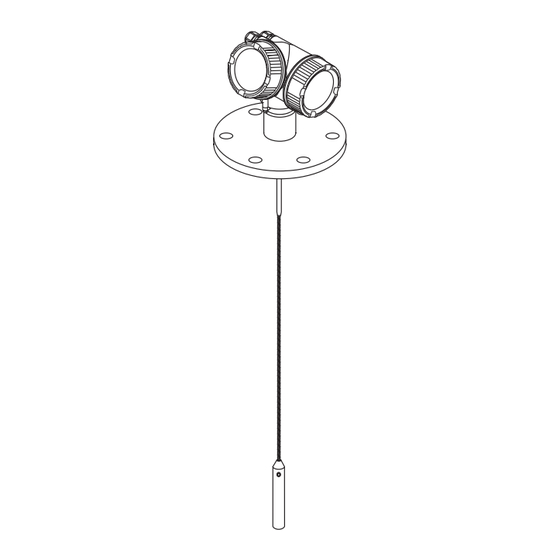

Levelflex FMP5x
Replacing main electronic module
EA0041F/00/A2/06.10
71118651
This Installation Instruction is valid for the following Spare-part-Set:
Order Number
Original Spare Part Set
XPF0001-###...
1 × main electronic module for Levelflex FMP5x
Determining approval and authorized personnel category:
1. Determine the approval and authorized category of personnel using the option in the table.
2. Any person who carries out repairs is responsible for safety during the work, the quality of work completed and safety of the device after repair.
Without approval
Approval
Competence level
1, 2, 3
1 = Trained specialist at customer site, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser (return device to manufacturer)
* = It is recommended that devices with a design approval be repaired by skilled professionals who have been trained by E+H.
!
Note!
For Levelflex FMP5x devices, only use spare part sets which are listed on the label spare part list in the cover of terminal compartment.
We recommend that the Installation Instruction be ketp with the packaging at all times.
If the order-code of the electronic module is not listed completely or there is no label spare part list in the cover, check the order number of the
"
electronic module with the aid of the serial number in the device viewer (www.endress.com/deviceviewer).
The specific device details (order-code, spare-parts, documentation etc.) are displayed by the input of the serial number in the device viewer.
Spare parts for: Levelflex FMP50
Ser.-no.:
Pos. no.
Spare part
1
Sensor
Main electr.
2
IO module
3
4
Cover (front)
5
Cover (right)
6
Display
6
4
Additional information: www.endress.com/deviceviewer
Label spare part list in the cover
The order code on the label of the electronics module shall be identical to the
order code on the spare part list or on the original electronic module.
Spare parts for: Levelflex FMP50
8A21AC098AF4
Ser.-no.:
Pos. no.
Spare part
Spare no./structure
1
Sensor
FMP51-###...
2
Main electr.
XPF0001-###...
3
IO module
71108591
4
Cover (front)
71110281
Cover (right)
5
71110291
Display
6
Not ordered
2
3
6
5
4
1
Additional information: www.endress.com/deviceviewer
Compare label on the plate of the electronic modul with the label the spare part list
With approval
(e.g. IECEx, ATEX, FM, CSA, TIIS, NEPSI)
1*, 2, 3
8A21AC098AF4
Spare no./structure
FMP51-###...
XPF0001-###...
71108591
71110281
71110291
Not ordered
2
3
5
1
CDI
WP SIM
DISPLAY
Main electronic: FMP50/51/52/53/54/56/57/FF
Spare part:
XPF0001-###...
FW
ex works 02.01.03
FW update #1
FW update #2
Schild-Deckel_FMP
Nameplate with serial number for determing the order code with device viewer:
Made in Germany, 79689 Maulburg
Levelflex
Order code:
Ser.no.:
Dev.Rev.: 1
Ext. ord. cd.:
AB
LN =
Ta: -40...+80 °C
Mat.: Viton,
FW: 01.00.00 Dev.Rev.: 1
Schild-Elektr_Modul
Nameplate
FMP56-1061/0
D1000101131
FMP56-AAACAALAABGDE+
11.5...35 V DC / 2-wire
4...20 mA HART
10000 mm
MWP:
16 bar
M20x1.5 / M16x1.5
Ta > 60 °C:
PPS,
316L, 316, 304, 318LN
ex works
X =
Date:
N12895
71118651
IP68 / 66 NEMA 4X / 6P
if modification
see sep. label
2010-03
250002796-A
Typenschild
