I N T E G R AT E D

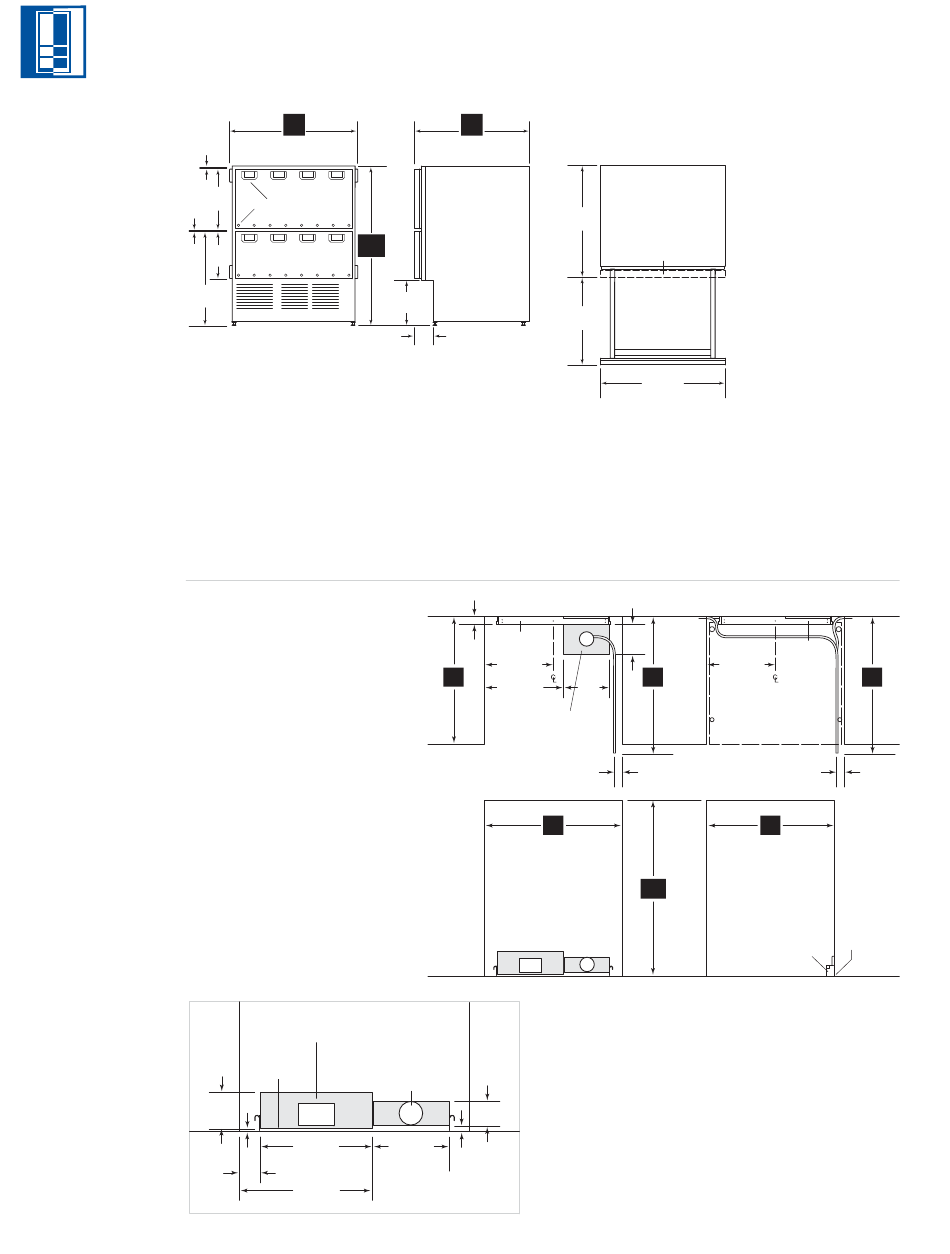

O V E R A L L D I M E N S I O N S
Models ICB700BR, ICB700BFI and ICB700BCI
mm
B A S E U N I T S
13
Model ICB700BR
mm
All Refrigerator
Model ICB700BFI
All Freezer
with Ice Maker
518
mm
Model ICB700BCI
Refrigerator | Freezer
with Ice Maker
S P E C I F I C A T I O N S
Overall Dimensions
Width 686 mm
Height 876 mm
Depth 610 mm
Finished Opening
Width 686 mm
Height 876 mm
I N S T A L L A T I O N
Models ICB700BR, ICB700BFI
Depth 635 mm*
and ICB700BCI
*The depth of the unit
Models without an ice maker
is 610 mm from the
will not require the water line
front of the unit to its
connection.
back. Your design may
necessitate moving the
unit back or cabinets
forward to achieve a
flush fit. This will
require a minimum
rough opening depth
of 635 mm.
8
I N S TA L L AT I O N S P E C I F I C AT I O N S
686
mm
10
(UNIT DIMENSION)
337
DRAWER
mm
MOUNTING DETAIL
876
mm*
260
mm
FRONT VIEW
13 mm + _ ADJUSTMENT IN LEVELING LEGS
*
*PLACEMENT OF THE
ANTI-TIP BRACKET
SHOULD BE 610 mm
FROM THE FRONT OF THE
UNIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
LOCATE ELECTRICAL WITHIN
SHADED AREA
ANTI-TIP LOCATE WATER LINE
BRACKET (REAR ENTRY) WITHIN
SHADED AREA
114
E
mm
330 mm
6
mm
64 mm
394 mm
610
mm
(UNIT DIMENSION)
248
mm
102
mm SIDE VIEW
TOP VIEW
ANTI-TIP
38
BRACKET*
mm
343 mm
635
mm
394 mm
WATER LINE
BOTTOM ENTRY
LOCATION
686
mm
E
FRONT VIEW
76
W
mm
229 mm
19
mm
610
mm
DRAWER CLOSED
495
mm*
657 mm
TOP VIEW
* DRAWER PANEL THICKNESS NOT INCLUDED
TOP VIEW
152
W
mm
343 mm
686
mm
229
WATER LINE
mm
SIDE ENTRY
LOCATIONS
38 mm
876
mm
W
SIDE VIEW
ANTI-TIP
BRACKET
686
mm
38 mm
635
mm
WATER LINE
SIDE ENTRY
ANTI-TIP LOCATION
BRACKET
