I N T E G R AT E D I N S TA L L AT I O N I N S T R U C T I O N S

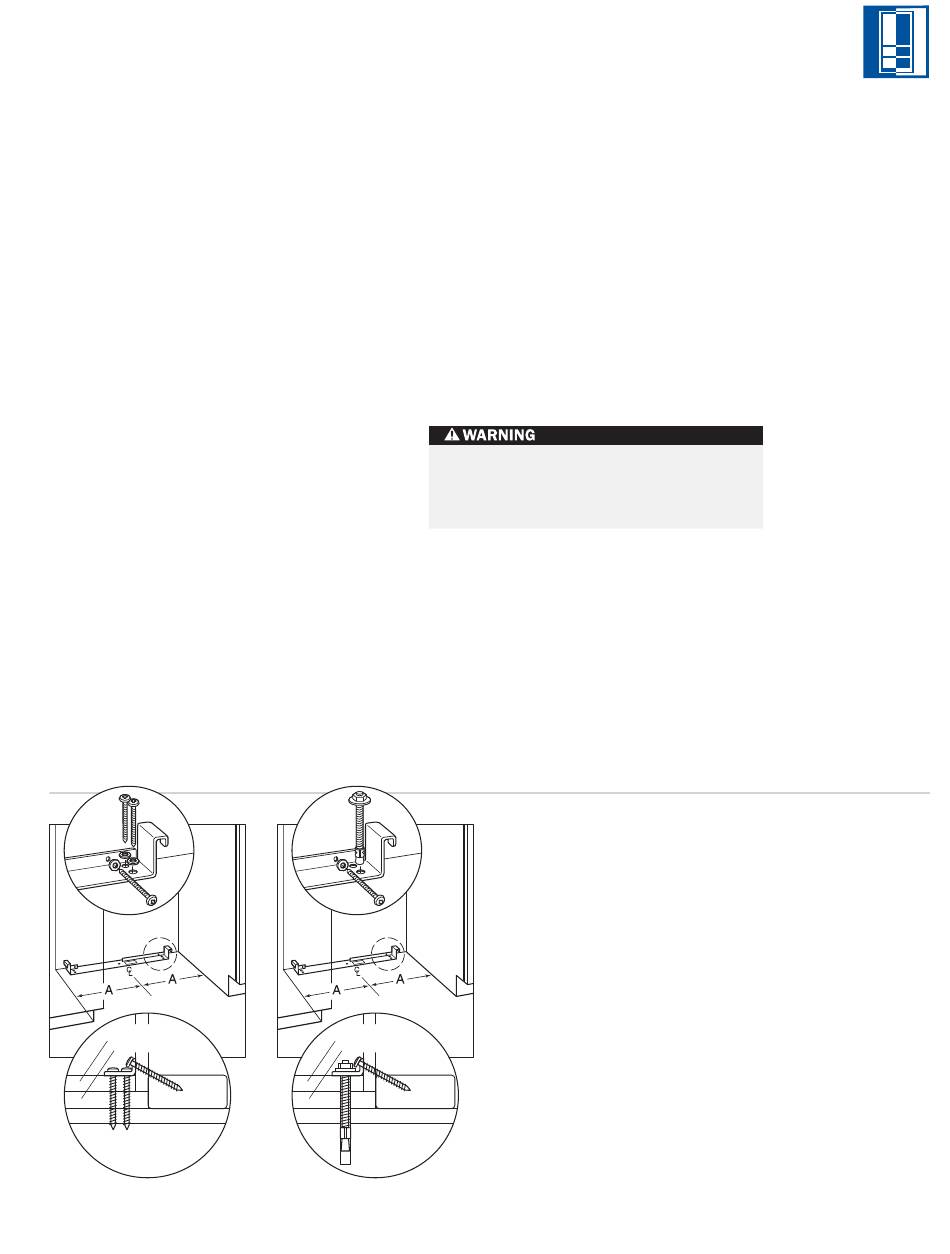

A N T I - T I P B R A C K E T
W O O D F L O O R A P P L I C AT I O N S
Use the six #12 x 63,5 mm wood screws and
the six #12 flat washers provided. Drill pilot
holes 5 mm diameter maximum, and be sure
that the screws penetrate through the flooring
material and into the wall plate a minimum of
19 mm. Be sure that the screws hold tight.
Refer to illustration 1 below.
Finished Flooring
Underlayment
Wall Plate
Subflooring
WOOD FLOOR
Illus. 1
I N S TA L L AT I O N
C O N C R E T E F L O O R A P P L I C AT I O N S
Use the two #10 x 95,25 mm concrete wedge
anchors, two # 12 x 63,5 mm wood screws and
two #12 flat washers provided. Be sure that the
anchors and screws hold tight. Refer to
illustration 2 below.
IMPORTANT NOTE: In some installations the
subflooring or finished floor may require
angling the wood screws used to fasten the
anti-tip bracket to the back wall. Refer to
illustrations 1 and 2.
Finished Flooring
Underlayment
Wall Plate
Subflooring
38
mm
CONCRETE
min
FLOOR
Illus. 2
Make sure that there are no electrical
wires or plumbing in the area which the
screws could penetrate.
S P E C I F I C A T I O N S
Dimension A
686 mm Wide Units
914 mm Wide Units
343 mm
457 mm
