4. Installation

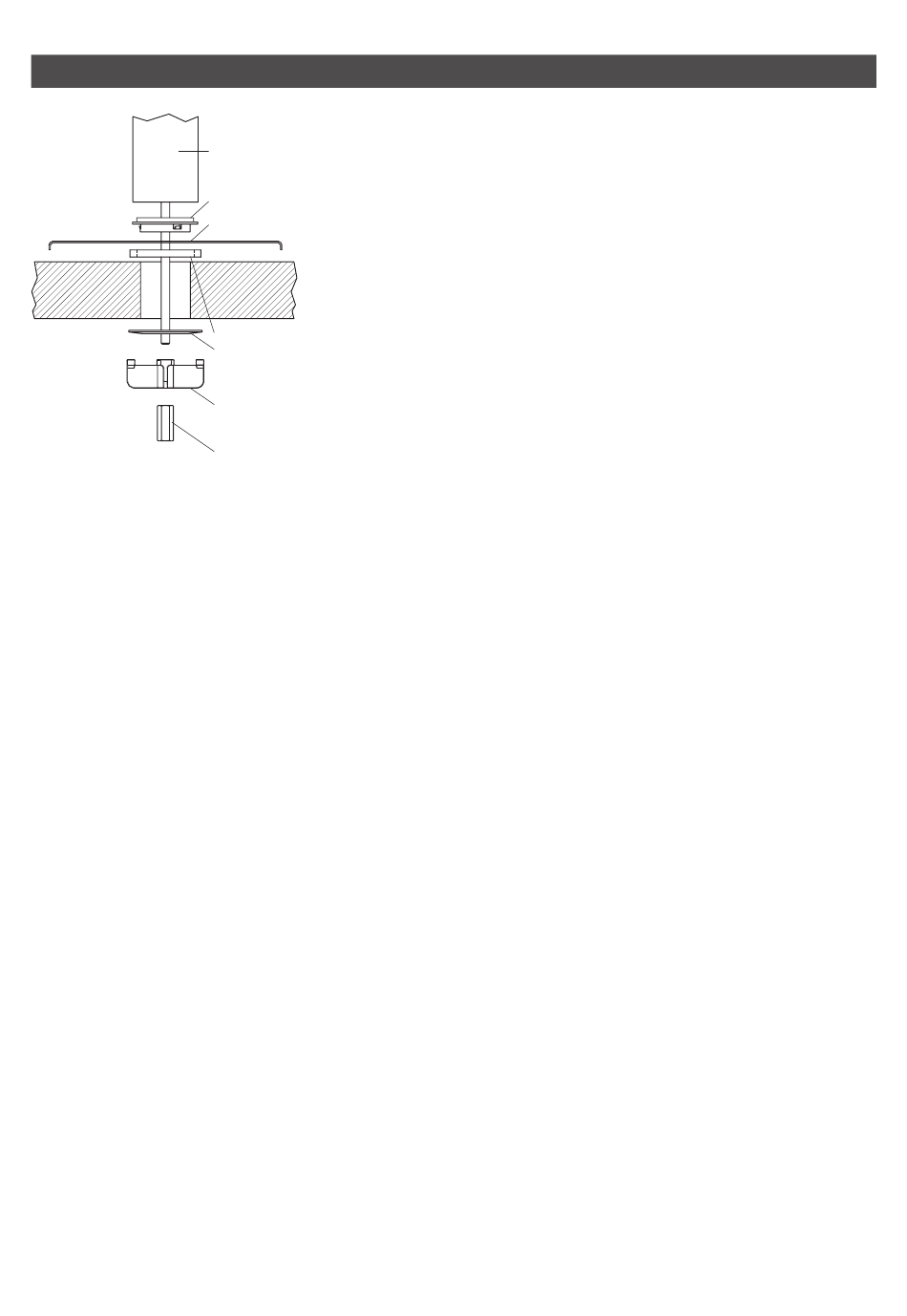

Tap
Spacer
Tray
6. If the drain bend is facing the wrong way, slacken off the fastening nut above the
bend, turn it to the correct position and then tighten up the fastening nut again.
7. Connect the drain bend to a siphon connecting sleeve, using a 22 mm diameter hose.
If no siphon connecting sleeve is available, use the snap connecting sleeve.
a. Place the snap connecting sleeve on the side of the siphon facing the sink. Drill a
13 mm diameter hole in the drain pipe behind the snap connecting sleeve for a
drain connection. Use a suitable sealant to make a watertight seal between the
snap connecting sleeve and the drain pipe.

Commissioning

Spacer
1. Before using the unit for the first time, flush through the connecting pipes and hoses
S/S washer
thoroughly. To flush, detach the flexible hose from the water inlet of the undersink
unit and hold it over a drain or bucket. Turn on the water and allow it to run for
Spider clamp
several minutes. Then reattach the hose to the water inlet of the undersink unit and
check the installation for leaks.
Fixing nut
2. Set a pressure of 3.0 bar on the pressure reducer of the carbon dioxide gas bottle.
Turn the adjusting screw anticlockwise to reduce the pressure. Turn it clockwise to
increase the pressure.
3. Check the gas-carrying connections for leaks. Caution - gas released can be very cold.
Use a leak detecting spray or soapy water so that even minor leaks will be detected.
4. If no leaks are found, plug the plug into the socket and press the On switch on the
right-hand side of the undersink unit to activate the unit.
5. A prompt will appear on the display asking you to flush the carbonizer with carbon
dioxide.
a. Touch 'Start' to start flushing. Carbon dioxide will then flow through the unit and
can be heard at the tap.
b. After about 10 seconds touch 'Stop' to stop flushing and then press 'Next' to
continue with commissioning.
6. A prompt will appear on the display asking you to flush the filter. A container with a
capacity of about 10 litres will be needed to collect the water.
a. Open the service hatch on the front of the unit. Place the end of the plastic hose in
the collecting container and open the valve on the hose.
b. Touch 'Start' to start flushing.
c. Allow about 10 litres of water to drain out and then touch 'Stop' to stop flushing.
Close the valve on the hose and touch 'Next'.
7. The unit will then be in normal operating mode.
8. Register the appliance with the customer service department online at
www.clage.com.
