4.4. WiFi settings

Die Konfiguration der WiFi-Einstellungen nehmen Sie in den Unterfenstern RADIO,
RECFG
Mit werden geänderte Einstellungen ind Gerät übernommen.
The configuration of the WiFi settings is made in the RADIO,
changed settings are applied to the device.

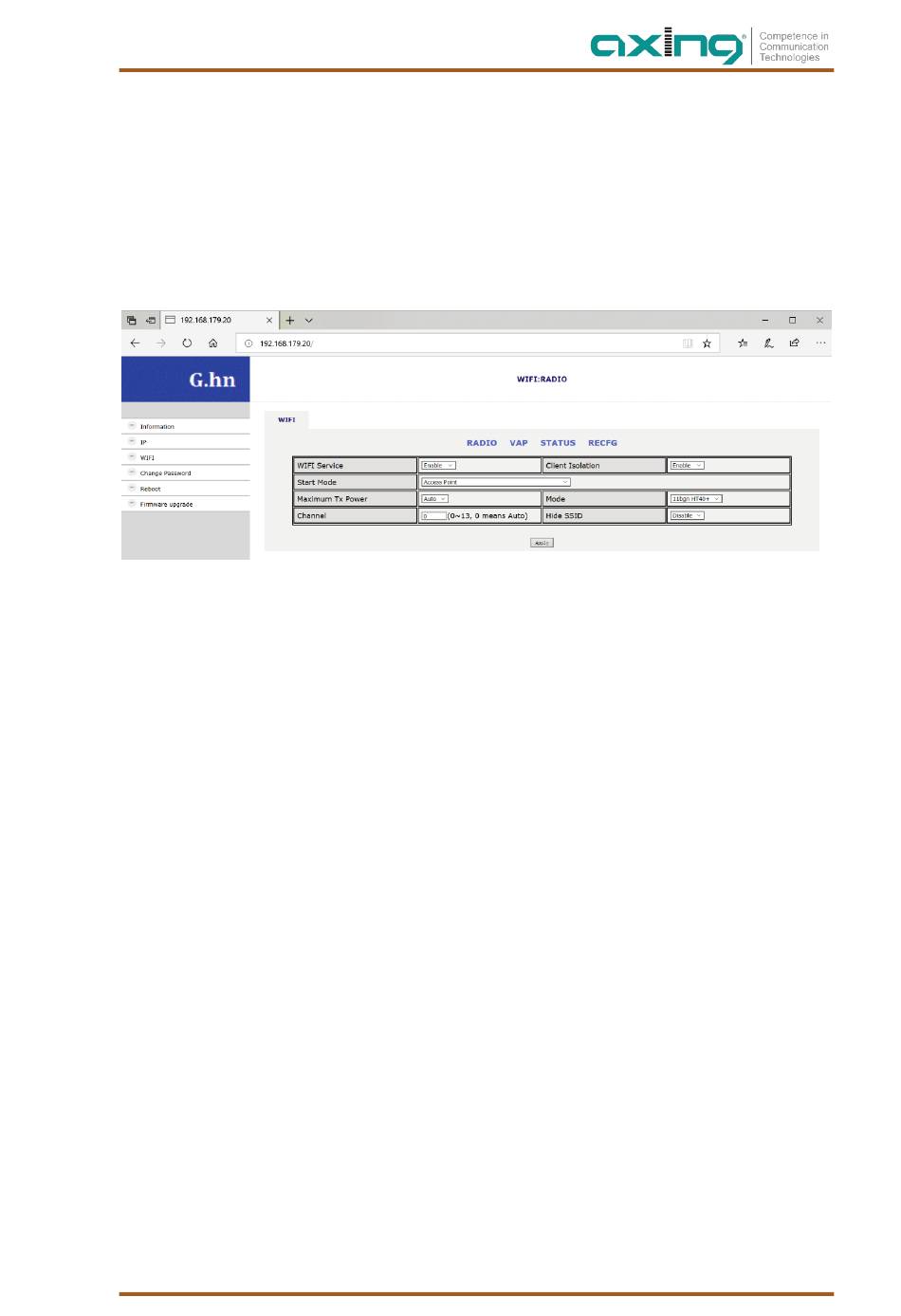

4.4.1. Configuration of the radio parameters (WIFI:RADIO)

WIFI Service
•
Enable activates the WiFi.
Client Isolation
•
Disable turns off the WiFi.
•
Enable prevents WiFi clients from seeing each other and connecting to each other.
Start Mode
•
Disable allows WiFi clients to see each other and connect to each other.
•
Access Point: Creates a single access point.
•
Multi-VAP: Creates multiple virtual access points
Maximum Tx Power
•
Multi-VAP with VLAN: Creates a multi-access point configuration and assigns each access point a VID.
Mode
Maximum transmission power for all packets.
•
11b = Standard Legacy DSSS rates in 2.4GHz band
•
11g = Standard Legacy rates in 2.4GHz band
•
11gn HT20 = 11n rates limited to HT20 MCS rates in 2.4GHz band
•
11gn HT40+ = 11n rates up to HT40 MCS rates, using upper extension channel, 2.4GHz band
Channel
•
11gn HT40– = 11n rates up to HT40 MCS rates, using lower extension channel, 2.4GHz band
Hide SSID
Selection of the WIFI channel in which the AP is operated. 0 = "auto".
•
Enable The WiFi network name is not sent, so it is not visible to WiFi clients.
•
Disable The WiFi network name is being sent, so it can be seen by WiFi clients.
2020-01-08 | Technical improvements, changes in design, printing- and other errors expected.
VAP
VAP STATUS subwindows. With RECFG,
and
STATUS
und vor.
