Operation instructions | EoC 1-11 | EoC 2-11 | Ethernet over Coax | Peer to Peer

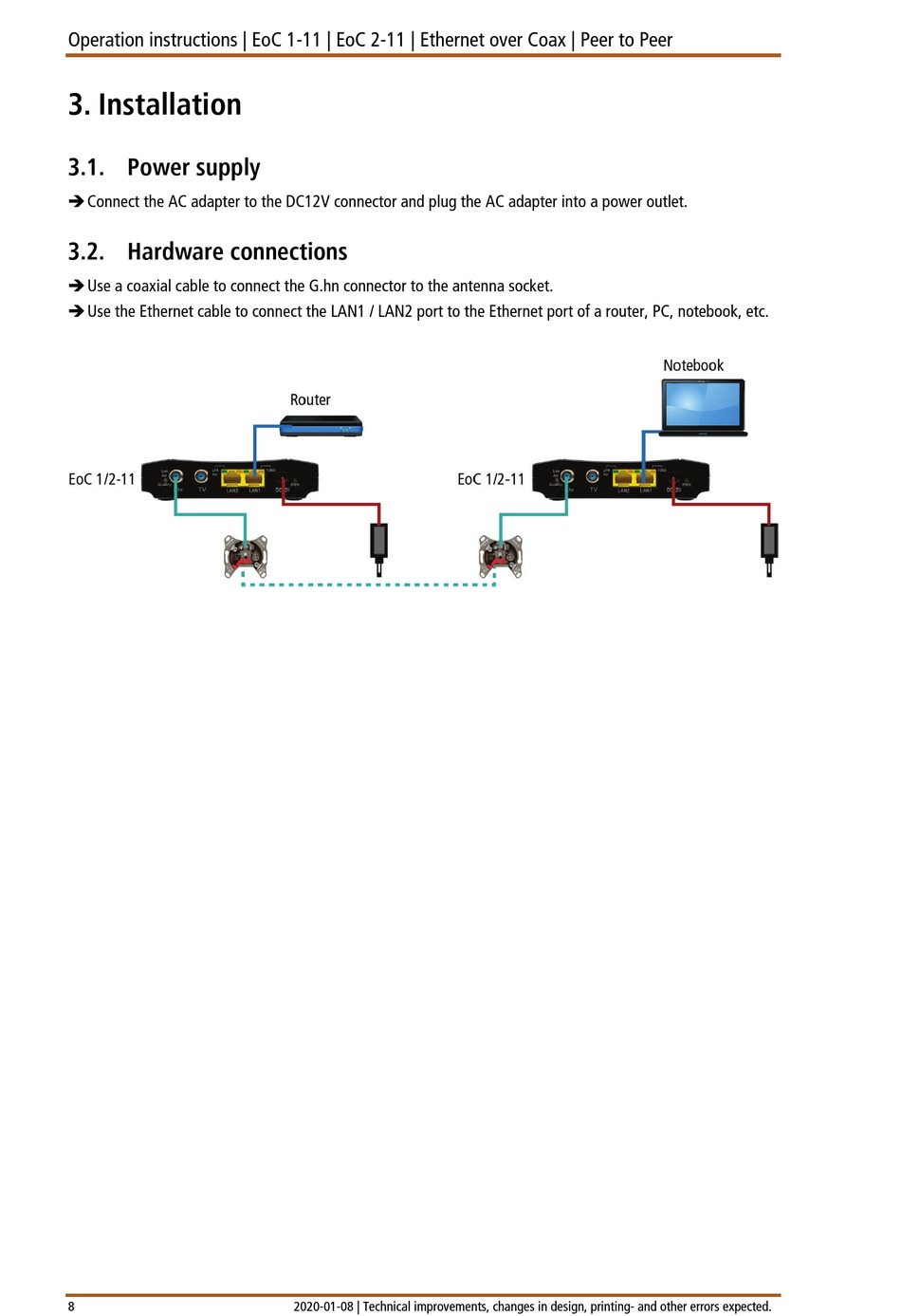

3. Installation

3.1. Power supply

 Connect the AC adapter to the DC12V connector and plug the AC adapter into a power outlet.

3.2. Hardware connections

 Use a coaxial cable to connect the G.hn connector to the antenna socket.
 Use the Ethernet cable to connect the LAN1 / LAN2 port to the Ethernet port of a router, PC, notebook, etc.
8 2020-01-08 | Technical improvements, changes in design, printing- and other errors expected.
