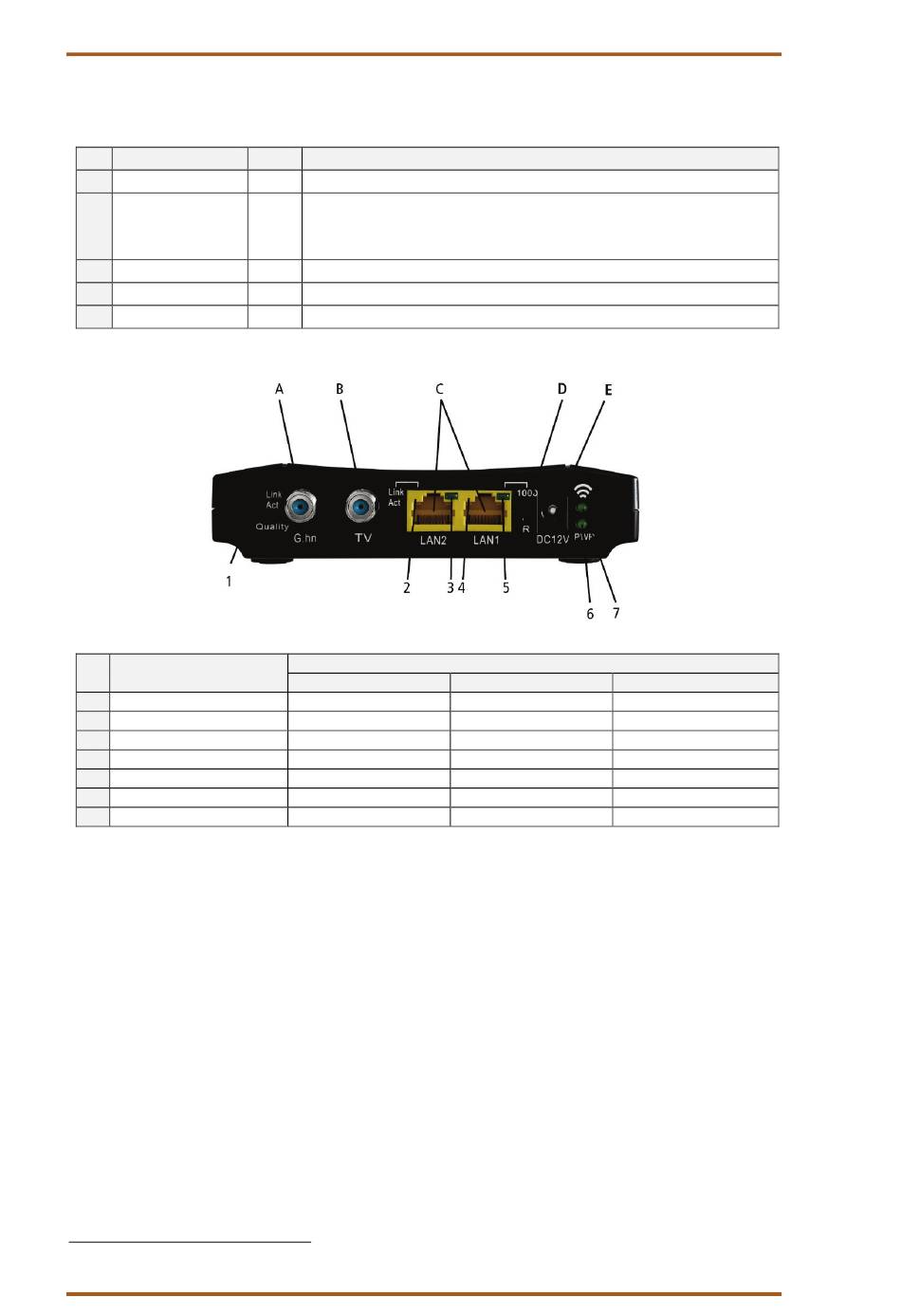

1.3. Connectors and LED indicators on the rear panel

Port Name/Button
A G.hn
B TV
C LAN1/LAN2
D 1 R
E DC12V
LED
1 Link/Act | Quality
2 LAN2 Link/Act
3 LAN2 1000
4 LAN1 Link/Act
5 LAN1 1000
6 1 WiFi
7 PWR
LED 1 also shows the quality of the EoC connection:
1 EoC 2-11 only
6
Type Function
F Connection for the antenna wall outlet (see 3.5.4 at page 18)
F Connect for a TV device
Only if the EoC is connected to the TV connection of a CATV antenna socket.
Not with SAT or multimedia/data antenna sockets.
RJ-45 Connect to PC or STB or other Ethernet devices
– Reset Button
DC Connect to the power adapter plug
Status
On
Linked
Linked
1000 Mbps
Linked
1000 Mbps
WiFi on
Power supply on
Green: High
Orange: Medium
Red: Low
2020-01-08 | Technical improvements, changes in design, printing- and other errors expected.
Flashing Off
Receive or transmit Disconnected or Link fail
Receive or transmit Disconnected or Link fail
N/A 100 Mbps
Receive or transmit Disconnected or Link fail
N/A 100 Mbps
Receive or transmit WiFi off
N/A Power supply off
