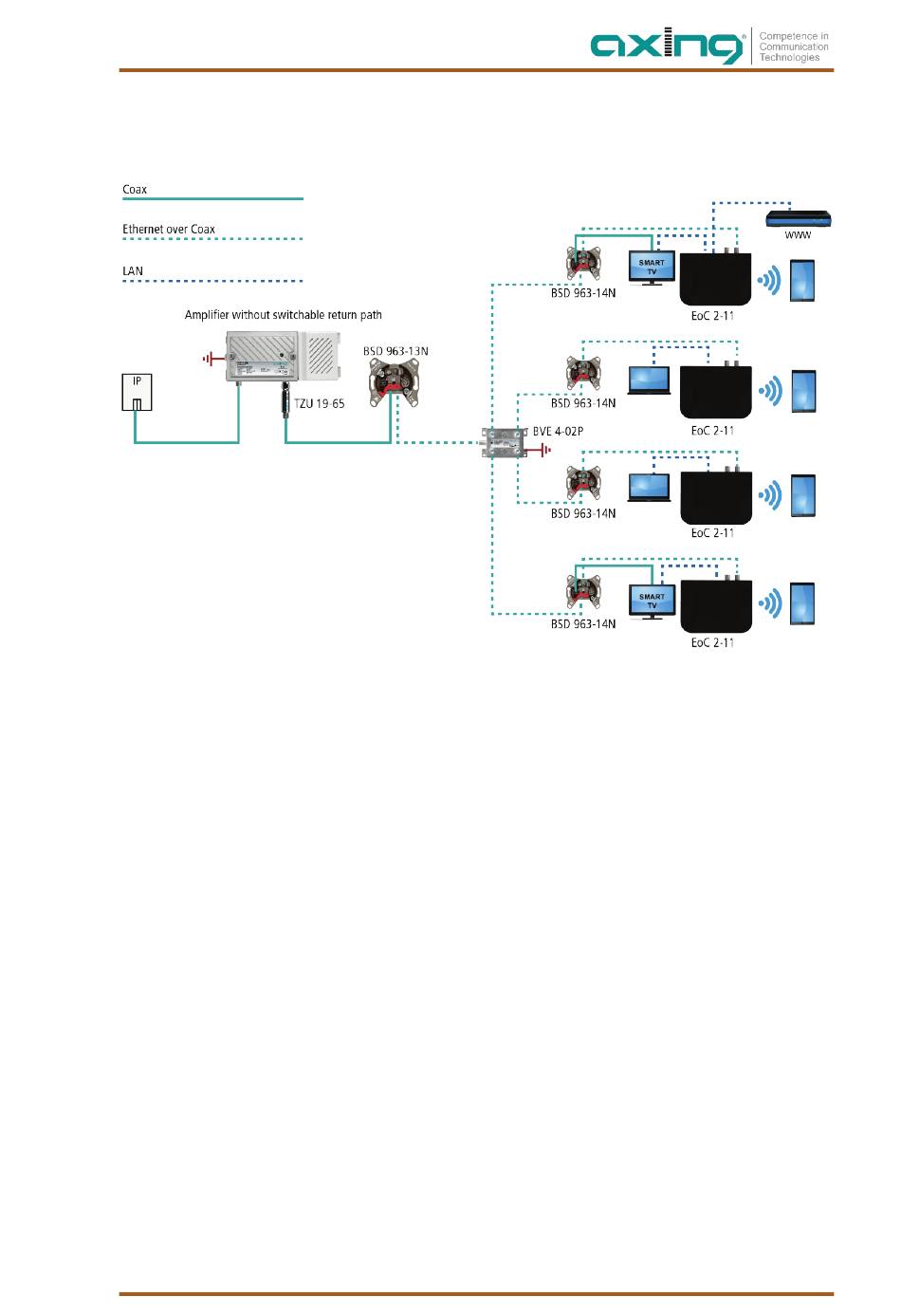

Amplifier without switchable return path
If it is not possible to switch off the return path, a high-pass filter TZU 19-65 and a BSD 963-13N antenna wall
outlet must be installed at the output of the amplifier.
Important: The use of a BSD 963-13N antenna socket and the high-pass filter TZU 19-65 is
mandatory in order to achieve sufficient blocking depth for the frequency range from 5...65 MHz.
Otherwise it may cause interferences in the cable network.
