3.5.3. Feeding in a SAT-IF distribution structure

For feeding into a SAT IF distribution structure, IP signals from a telephone service provider or a cable network
operator can be used.
Important: If additional CATV signals of a cable operator are fed into the terrestrial branch, then
sufficient locking depth for the frequency range of 5 ... 65 MHz must be achieved. Otherwise it may
cause interferences in the cable network. Proceed as shown in the examples for amplifiers with or
without switchable return path, see 3.5.1 at page 10.

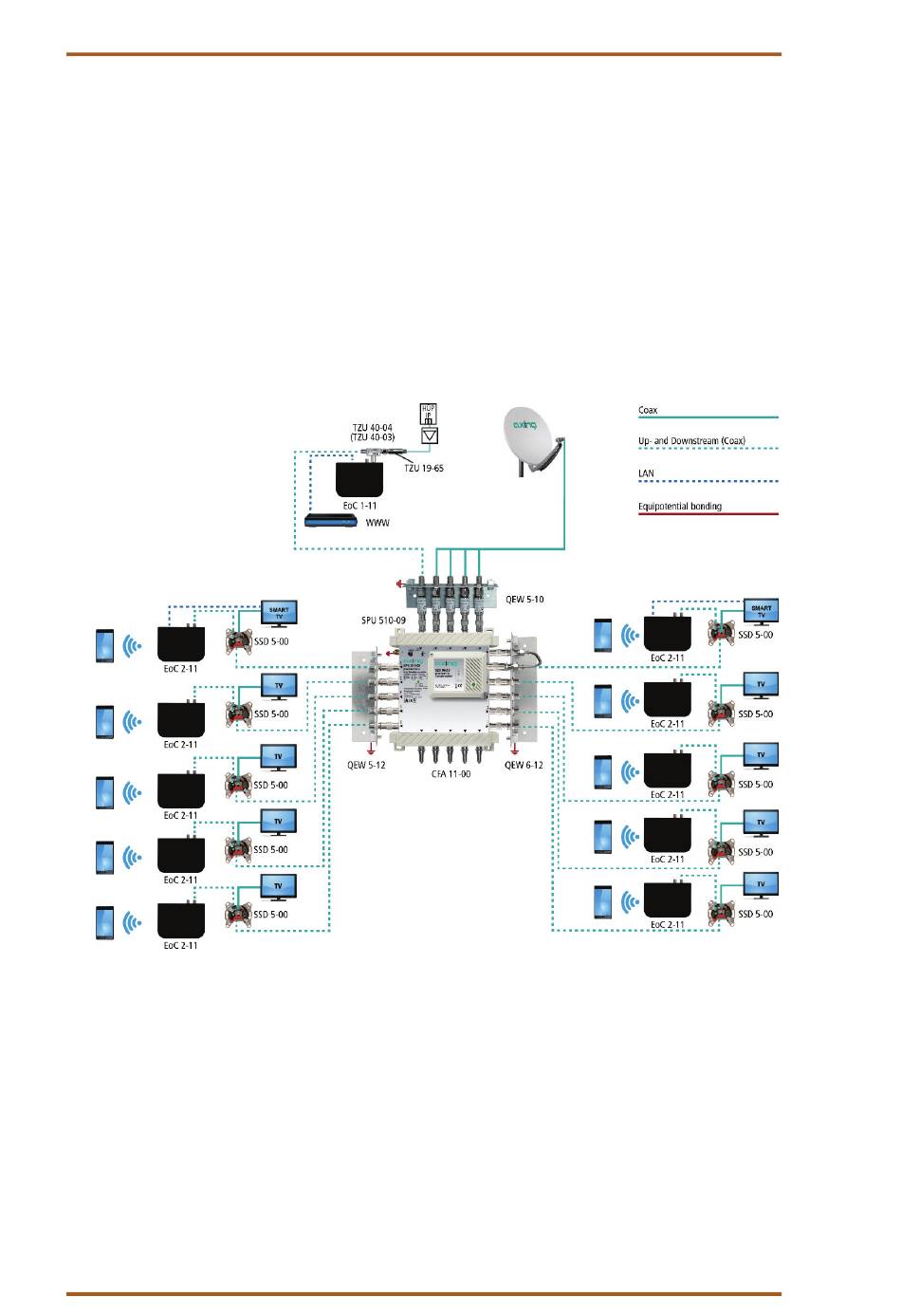

At the terrestrial input of a multiswitch
The IP data from the telephone company is received by a router and forwarded to an EoC 2-11. The EoC
modulates the IP data and feeds it via a TZU 40-04 into the terrestrial input of the multiswitch. The IP data can
be received at the other EoC devices.
