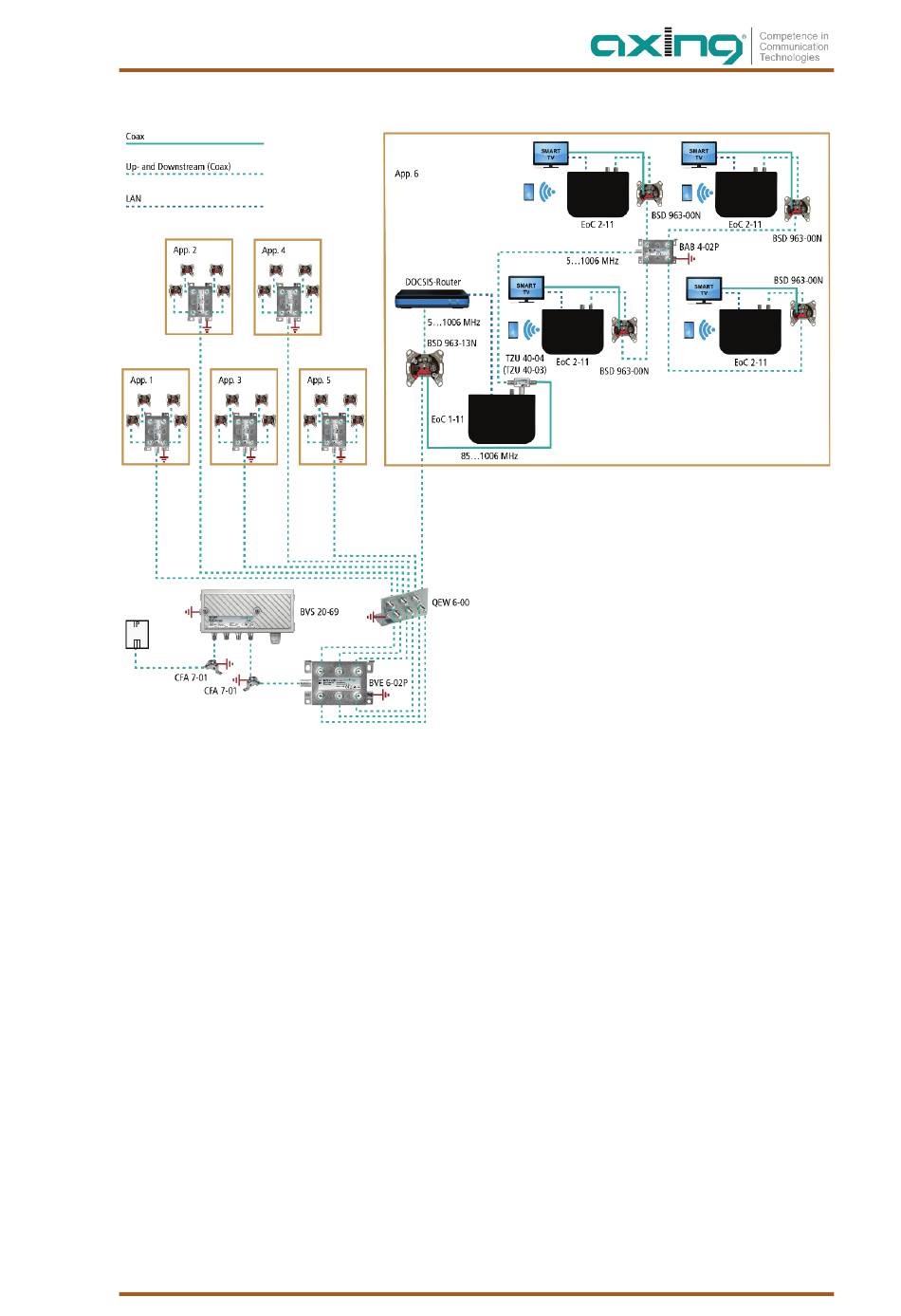

The implementation
The EoC modulates the IP data and feeds them into the distribution network via a TZU 40-04 feeder. The data
can be received on the other EoC devices.
Important: The use of a BSD 963-13N antenna socket and a TZU 40-03/-04 inserter is mandatory in
order to achieve sufficient blocking depth for the frequency range from 5...65 MHz. Otherwise it
may cause interferences in the cable network.
