Technical Drawing; Spare Parts List - Ayce Gh-05 Gebrauchsanweisung

NOTES

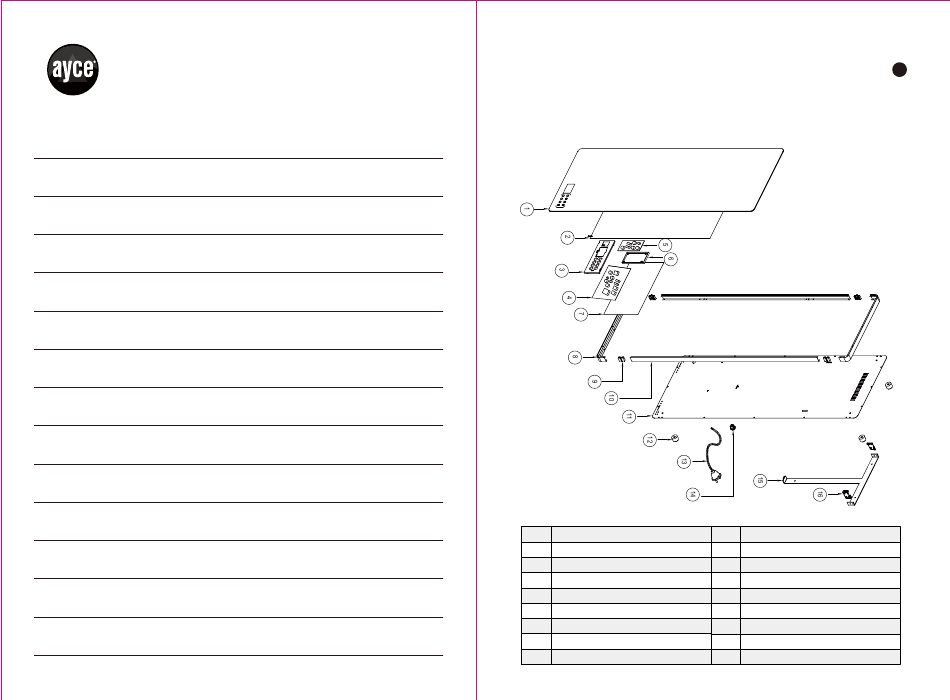

TECHNICAL DRAWING

SPARE PARTS LIST

Description
NO.
Tempering glass
1
Heating element
2
PCB bracket
3
PCB
4
Power panel
5
Power box
6
Baffle plate
7
Top and bottom Border
8
64 | 65
GB
Description
NO.
Connecting rod
9
Left and right border
10
Back grill
11
Feet bracket
12
Power cord
13
Power switch
14
Wall mounting bracket
15
Small bracket
16
