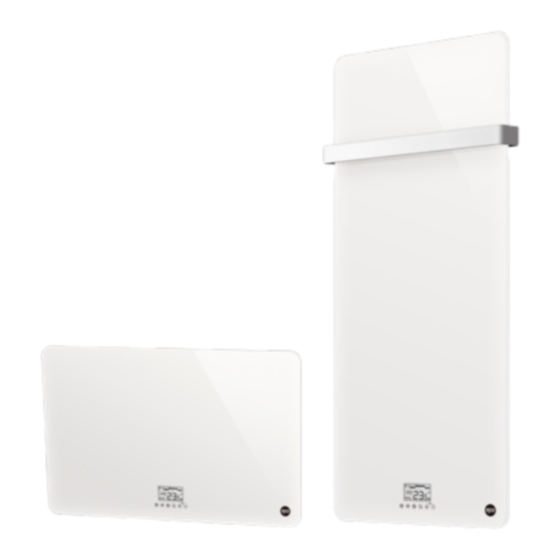

INFRAROT-GLASPLATTENHEIZUNG RADIATEUR À PANNEAU DE VERRE INFRAROUGE RADIATORE A PANNELLO RADIANTE IN VETRO AGLI INFRAROSSI INFRARED GLASS PANEL RADIATOR GEBRAUCHSANWEISUNG I MANUEL D'UTILISATION MANUALE D'ISTRUZIONI I ORIGINAL INSTRUCTIONS...
02 | 03 ERLÄUTERUNG DER SYMBOLE verwendet werden, wenn sie beaufsichtigt werden oder bezüglich des sicheren Gebrauchs des Geräts unterwiesen wurden und die daraus resultierenden Gefahren verstanden haben. Kinder dürfen nicht mit dem Gerät spielen. Reinigung und Benutzerwartung Entspricht den Europäischen Normen. dürfen nicht durch Kinder ohne Beaufsichtigung durchgeführt werden.
12. WARNHINWEIS: Um Gefahren für Kleinkinder zu 0,6m vermeiden, sollte dieses Gerät in einer Mindesthöhe von 600 mm über dem Fussboden angebracht warden. DIESES PRODUKT IST ZUR RAUMHEIZUNG VORGESEHEN. NUR FÜR DEN HAUSGEBRAUCH TECHNISCHE DATEN Modell SRG02-08ET SRG03-05E Nennleistung 800W 500W Nennspannung 230 V~ 230 V~...
Seite 4
06 | 07 BESCHREIBUNG WANDMONTAGE (SRG02-08ET) M4 x 6mm 300mm > 600mm Halterung Hauptschalter M4 x 6mm Front-Bedienfeld Heizrippen Handtuchhalter...
08 | 09 (SRG03-05E) Bohren Sie Löcher entsprechend der Anleitung im Inneren der Verpackung in die Wand. Warnhinweis: Achten Sie unbedingt auf die Einhaltung der Sicherheitsabstände, wie in der obigen Zeichnung dargestellt. Setzen Sie den Dübel in das Loch ein und befestigen Sie die Halterung mit Schrauben an der Wand.
Seite 6
10 | 11 Auswahl des Programms wird dieses durch Drücken auf geändert. • Drücken Sie in einmal auf . Das Symbol und das Symbol für die erste Stunde beginnen zu blinken. Mit wählen Sie den Modus für jede Stunde Einstellen / OK und mit schalten das blinkende Symbol für die Stunde weiter, bis die...
12 | 13 5) Programm-Werkseinstellung 6) Kurz-Timer-Einstellung Wenn Sie nur Handtücher trocknen möchten, drücken Sie auf und die Uhr beginnt : Gleiches Programm von Montag bis Sonntag, Programm kann vom Kunden mit der Anzeige «00:30» zu blinken. Bei jedem Tastendruck wechselt die Timer- geändert werden.
14 | 15 GERÄTEEIGENSCHAFTEN Tabelle 2: Erforderliche Angaben zu elektrischen Einzelraumheizgeräten Modellkennung(en): SRG02-08ET Angabe Symbol Wert Einheit Angabe Einheit Wärmeleistung Nur bei elektrischen Speicher-Einzelraumheizgeräten: Art der Regelung der Wärmezufuhr (bitte eine Möglichkeit auswählen) Nennwärmeleistung Manuelle Regelung der Wärmezufuhr mit [nein] integriertem Thermostat Mindestwärmeleistung...
18 | 19 DESCRIPTION DES SYMBOLES moins 8 ans et par des personnes ayant des capacités physiques, sensorielles ou mentales réduites ou dénuées d’expérience ou de connaissance, s'ils (si elles) sont correctement surveillé(e)s ou si des instructions relatives à l'utilisation de l'appareil en toute sécurité Conforme aux réglementations européennes applicables.
à installer l’appareil à une CE PRODUIT EST DESTINÉ À CHAUFFER UNE PIÈCE. hauteur minimale de 600mm du sol. DESTINÉ À UN USAGE DOMESTIQUE UNIQUEMENT. CARACTERISTIQUES TECHNIQUES Modèle SRG02-08ET SRG03-05E Puissance nominale 800W 500W Tension nominale 230 V~ 230 V~ Fréquence nominale...
22 | 23 LIST OF MAIN PARTS INSTALLATION MURALE (SRG02-08ET) M4 x 6mm 300mm > 600mm support Interrupteur principal M4 x 6mm Panneau de commande avant Ailettes du radiateur Porte serviette...
Seite 13
24 | 25 (SRG03-05E) Percez des trous dans le mur conformément aux instructions mentionnées dans la boîte. Avertissement : veillez à conserver les distances de sécurité illustrées sur le schéma ci-dessus. Enfoncez les chevilles dans le mur et installez le support au mur avec les vis. Suspendez doucement l'appareil sur le support en veillant à...
Seite 14
26 | 27 pour modifier le programme. • Lorsque vous vous trouvez dans , appuyez une fois sur , le symbole et le premier symbole de l'heure se mettent à clignoter. Utilisez le bouton Réglage / OK pour sélectionner le mode souhaité pour chaque heure et le bouton pour Activation/désactivation du système de détection de fenêtre / Réglage de minuterie faire clignoter le logo de l'heure suivante...
28 | 29 5) Préréglage des programmes en usine minuterie changera entre 30 min/1 heure/2 heures/4 heures. Appuyez sur pour confirmer le réglage de la minuterie. Si vous ne touchez aucun bouton pendant 10 : le programme est identique du lundi au dimanche ; l'utilisateur peut le modifier. secondes, le réglage sera confirmé...
34 | 35 DESCRIZIONE DEI SIMBOLI esperienza e di conoscenza se si trovano sotto adeguata sorveglianza oppure se sono stati istruiti circa l’uso dell’apparecchio in modo sicuro e se si rendono conto dei pericoli correlati. I bambini non devono giocare con l’apparecchio.
0,6m un’altezza minima di 600mm dal pavimento. QUESTO PRODOTTO E’ FINALIZZATO AL RISCALDAMENTO DEGLI AMBIENTI: SOLO PER USO DOMESTICO. CARATTERISTICHE TECNICHE Modello SRG02-08ET SRG03-05E Potenza nominale 800W 500W Tensione nominale 230 V~ 230 V~...
38 | 39 DESCRIZIONE DELLE PARTI INSTALLAZIONE A PARETE (SRG02-08ET) M4 x 6mm 300mm > 600mm supporto Interruttore principale M4 x 6mm Pannello di controllo anteriore Alette radianti Portasciugamani...
40 | 41 (SRG03-05E) Praticare i fori nella parete seguendo le istruzioni riportate all’interno della scatola. Avvertenza: Avere cura di mantenere le distanze di sicurezza indicate nel disegno sopra riportato. Inserire il tassello nel foro e montare la staffa alla parete con le viti. Appendere l’unità...
Seite 22
42 | 43 • Premere per selezionare il programma ; una volta selezionato il programma, premere per modificarlo. • Una volta entrati in , premere una volta, il simbolo e il simbolo della Impostazione / OK prima ora iniziano a lampeggiare. Utilizzare per selezionare la modalità...
44 | 45 5) Impostazione di fabbrica dei programmi: cambia nella sequenza 30 minuti / 1 ora/ 2 ore/ 4 ore. Premere per confermare l’impostazione del timer, oppure, dopo 10 secondi dall’ultima operazione, il timer sarà : Stesso programma da lunedì a domenica, il cliente può modificare il programma. automaticamente confermato.
Seite 24
46 | 47 CARATTERISTICHE DELL'ATTREZZATURA Tabella 2: Informazioni obbligatorie per gli apparecchi per il riscaldamento d'ambiente locale elettrici Identificativo del modello: SRG02-08ET Dato Simbolo Valore Unità Dato Unità Potenza termica Tipo di potenza termica, solo per gli apparecchi per il...
50 | 51 DESCRIPTION OF THE SYMBOLS and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
600 mm above the floor. IP24 0,6m 0,6m 0,6m 0,6m THIS PRODUCT IS FOR ROOM HEATING. FOR HOUSEHOLD USE ONLY. TECHNICAL SPECIFICATIONS Model SRG02-08ET SRG03-05E Rated Power 800W 500W Rated Voltage 230 V~ 230 V~ Rated Frequency 50 Hz...
54 | 55 LIST OF MAIN PARTS INSTALLATION ON THE WALL (SRG02-08ET) M4 x 6mm 300mm > 600mm support Interrupteur principal M4 x 6mm Panneau de commande avant Ailettes du radiateur Towel rack...
Seite 29
56 | 57 (SRG03-05E) Drill holes on the wall according to the instruction inside the box. Warning: Be sure to keep the safety distances as shown on the above drawing. Fit the fasten tube in the hole and fit the bracket on the wall with screws Hang the unit on the bracket gently, after ensuring the unit is right fixed, turn the lock in the bracket as picture show.
Seite 30
58 | 59 2) Quick start hour setting and turn from working days program to weekend program Press to turn on the screen, the equipment will work under COMFORT mode, press setting. When finish the setting press to confirm and quit. to set the desired temperature.
60 | 61 CLEANING & MAINTENANCE : Can set different program for each day. Factory presetting is with same program from Monday to Friday, same program from • Make sure the heater has been unplugged from the power and completely cooled Saturday to Sunday.
62 | 63 EQUIPMENT FEATURES Table 2: Information requirements for electric local space heaters Model identifier(s): SRG02-08ET Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output...
