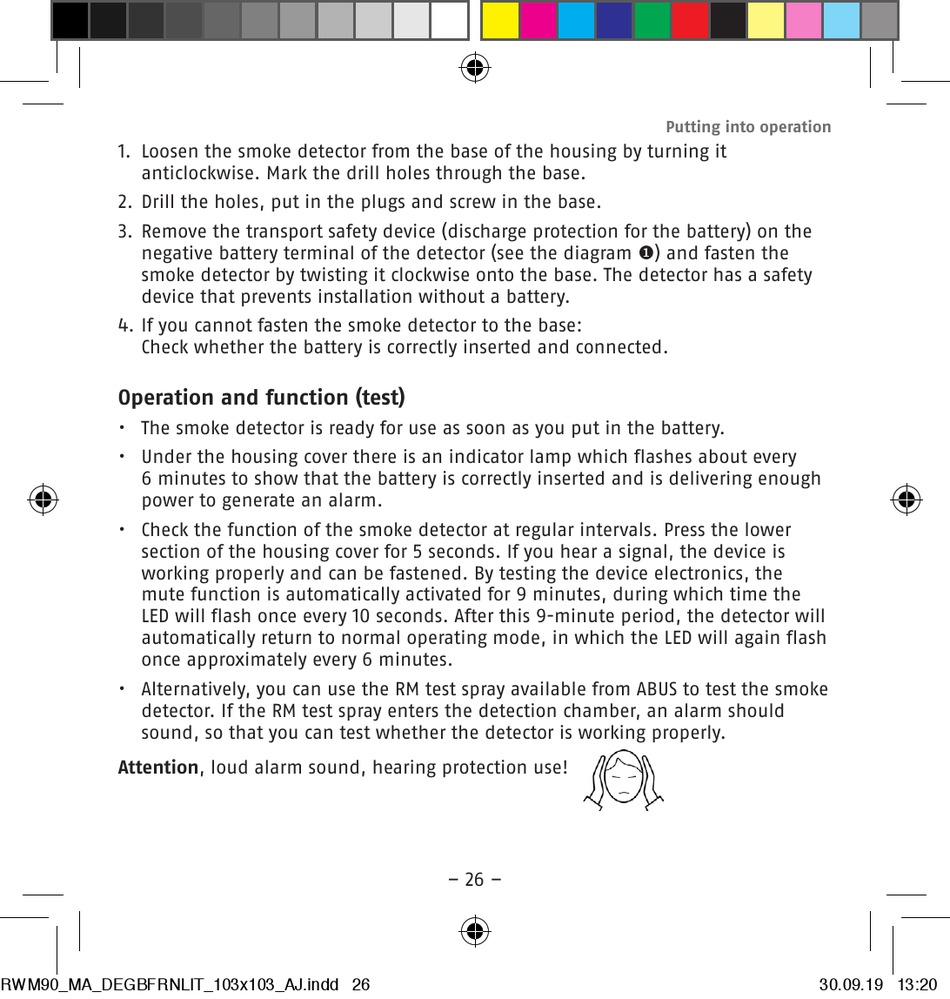

1. Loosen the smoke detector from the base of the housing by turning it
anticlockwise. Mark the drill holes through the base.
2. Drill the holes, put in the plugs and screw in the base.
3. Remove the transport safety device (discharge protection for the battery) on the
negative battery terminal of the detector (see the diagram ) and fasten the
smoke detector by twisting it clockwise onto the base. The detector has a safety
device that prevents installation without a battery.
4. If you cannot fasten the smoke detector to the base:
Check whether the battery is correctly inserted and connected.
Operation and function (test)
• The smoke detector is ready for use as soon as you put in the battery.
• Under the housing cover there is an indicator lamp which flashes about every
6 minutes to show that the battery is correctly inserted and is delivering enough
power to generate an alarm.
• Check the function of the smoke detector at regular intervals. Press the lower
section of the housing cover for 5 seconds. If you hear a signal, the device is
working properly and can be fastened. By testing the device electronics, the
mute function is automatically activated for 9 minutes, during which time the
LED will flash once every 10 seconds. After this 9-minute period, the detector will
automatically return to normal operating mode, in which the LED will again flash
once approximately every 6 minutes.
• Alternatively, you can use the RM test spray available from ABUS to test the smoke
detector. If the RM test spray enters the detection chamber, an alarm should
sound, so that you can test whether the detector is working properly.
Attention, loud alarm sound, hearing protection use!
