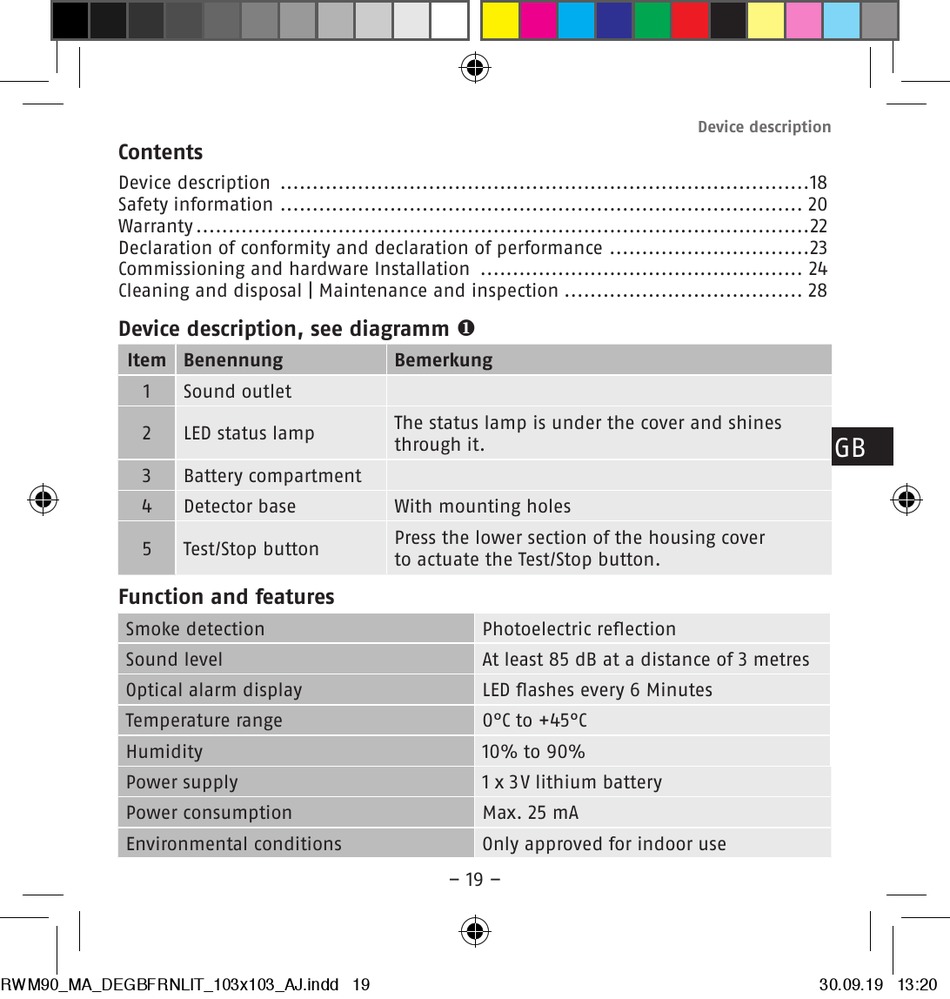

Contents
Device description ..................................................................................18
Safety information ................................................................................. 20
Warranty ...............................................................................................22
Declaration of conformity and declaration of performance ...............................23
Commissioning and hardware Installation .................................................. 24
Cleaning and disposal | Maintenance and inspection ..................................... 28
Device description, see diagramm 
Item Benennung
1
2
3
4
5
Function and features
Smoke detection
Sound level
Optical alarm display
Temperature range
Humidity
Power supply
Power consumption
Environmental conditions
RWM90_MA_DEGBFRNLIT_103x103_AJ.indd 19
Sound outlet
LED status lamp
Battery compartment
Detector base
Test/Stop button
Bemerkung
The status lamp is under the cover and shines
through it.
With mounting holes
Press the lower section of the housing cover
to actuate the Test/Stop button.
Photoelectric reflection
At least 85 dB at a distance of 3 metres
LED flashes every 6 Minutes
0°C to +45°C
10% to 90%
1 x 3 V lithium battery
Max. 25 mA
Only approved for indoor use
– 19 –
Device description
