Using the Smart Videohub Control Panel

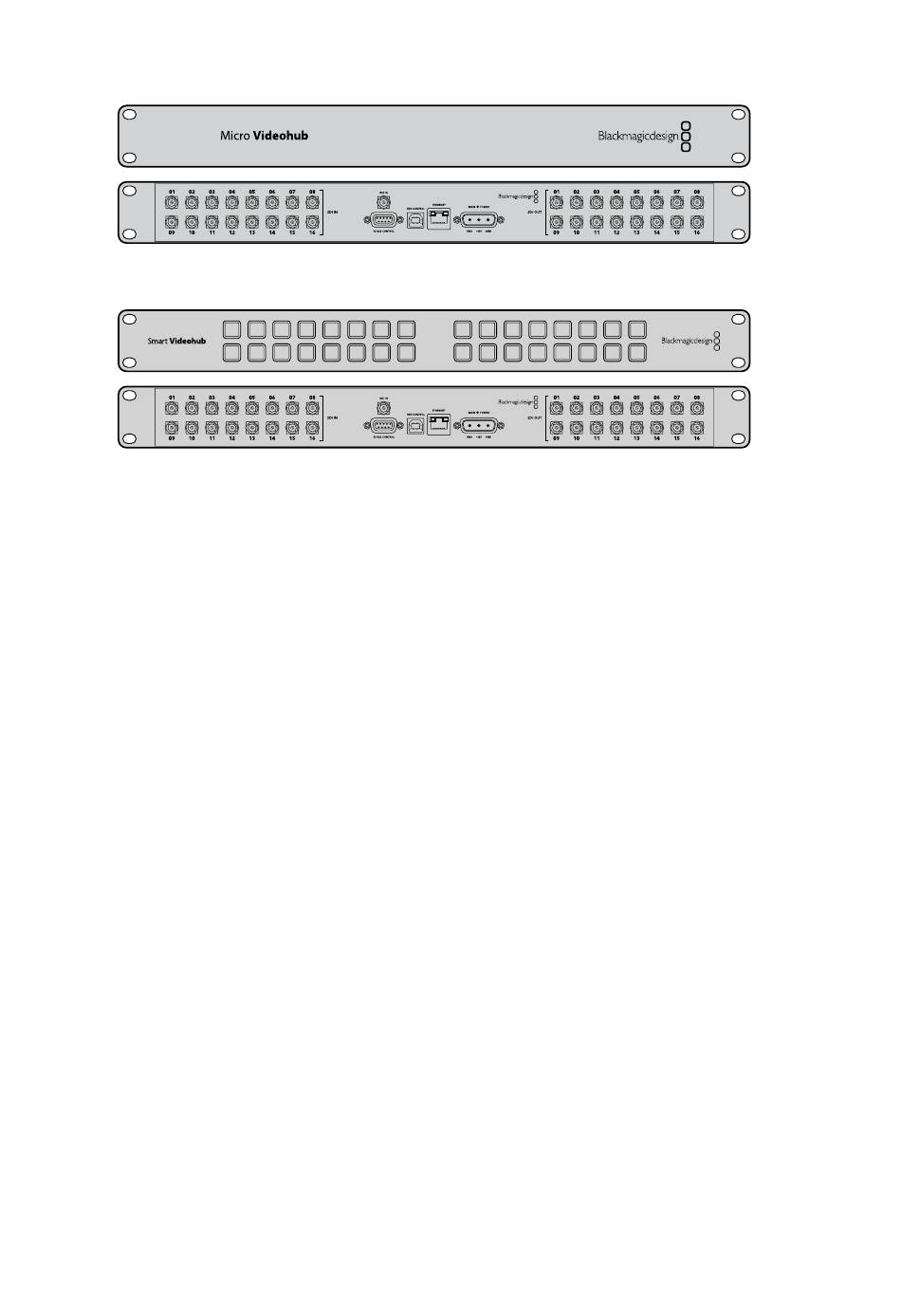

Smart Videohub features a built in 32 pushbutton control panel on the front of the router.
Routing changes can be made without needing a computer as there is a pushbutton for each
SDI input and output on Smart Videohub. Remote router control can also be used with
Smart Videohub.
The pushbuttons on the left of the control panel correspond with the 16 SDI inputs and the
pushbuttons on the right correspond with the 16 SDI outputs.
When power is connected to Smart Videohub, the top-left destination button will illuminate
white along with its corresponding source button.
To change routes:
1 Select a destination button and its corresponding source button will illuminate.
2 Press the desired video source button to connect a new source to the destination.
The original source button's LED will turn off and the new source button will light up.
The new video source will immediately be connected and viewable on the destination
device, such as an SDI monitor.
3 To change another route, select another destination button and then select a new
source button.
The pushbuttons on Smart Videohub directly control the integrated Videohub Server and
override any existing routes, including destinations locked with Videohub software.
The illuminated pushbuttons display the last route made with the Smart Videohub control panel.
However, if you select the same destination pushbutton as another remote user and they
change the source to that destination, you will see the change reflected on your
Smart Videohub.
