Matrix C3x Bedienungsanleitung Seite 6

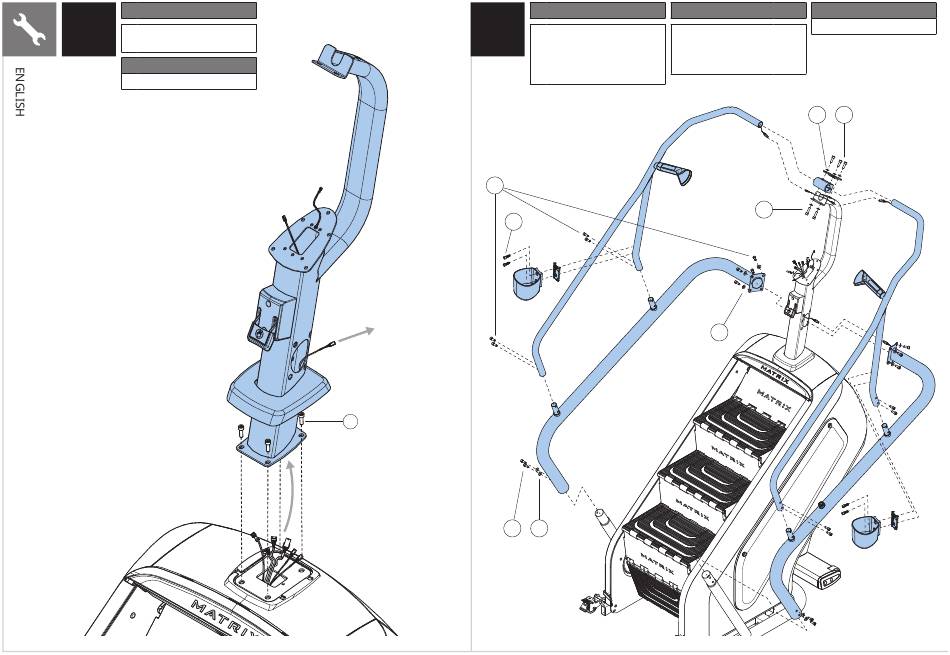

Black Hardware Bag
1
Description
A Bolt
Torque Value
24 Nm / 17.7 ft-lb
6
Qty
4
A
Blue Hardware Bag
2
Description Qty
B Bolt (16 mm) 4
C Curved Washer 4
D Bolt (20 mm) 20
E Flat Washer 8
D
B
D C
Green Hardware Bag Torque Value
24 Nm / 17.7 ft-lb
Description Qty
F Bolt (16 mm) 3
G Bolt (35 mm) 2
H Flat Washer 5
H F
G
E
