Design and function

Cobra Combi is a combined drilling and hammering
machine. It is equipped to be used for breaking
asphalt and concrete and for drilling in concrete and
granite.
Cobra Standard is only designed for breaking.

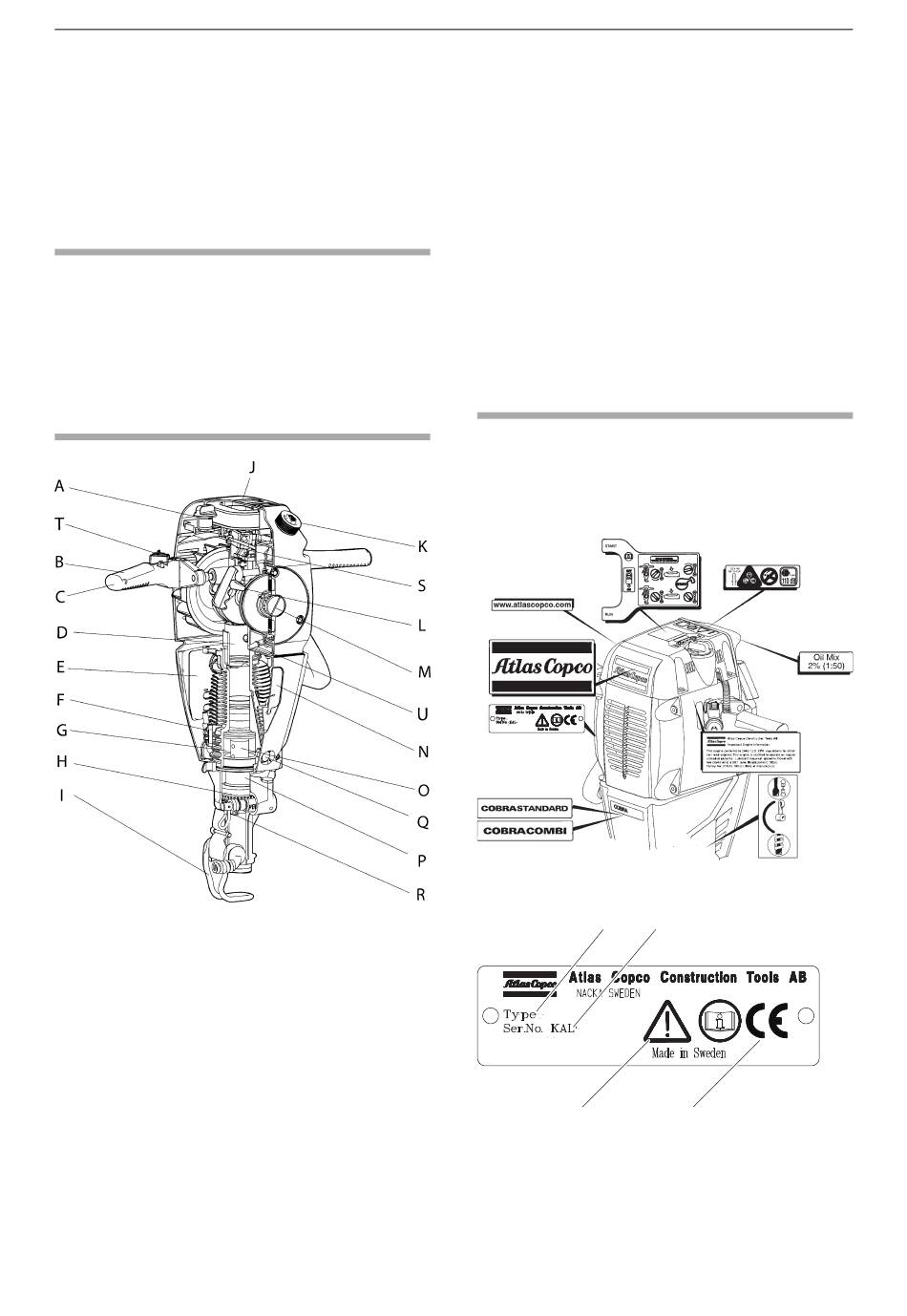

Main parts

Choke
A.
Throttle lever
B.
C. Vibration-dampened handle
Engine piston
D.
Silencer
E.
F. Intake valve for flushing air
Compresseion chamber for flushing air
G.
Rotation mehanism
H.
I. Tool retainer
Air filter cover
J.
K. Tank cap
12
Starting handle
L.
M . Power take-off
Spark plug cover
N.
Percussion piston
O.
P. Gas duct
Gas duct valve
Q.
R. Function selector (Only Cobra Combi)
Reed valve
S.
Stop button
T.
U. Fuel filter

Signs and stickers

The machine is fitted with signs and stickers
containing important information about personal
safety and machine maintenance. The signs and
stickers shall always be easy to read. New signs and
stickers can be ordered by using the spare parts list.

Data plate

Machine type
A.
B. Serial number
