ANGLE GRINDER

Introduction
To get the most out of your new angle
grinder, please read through these
instructions and the enclosed safety
regulations before use.
Please also save the instructions in case you
need to refer to them at a later date.

Technical data

Voltage/frequency:
Power rating:
Speed, unloaded:
Cutting disc: Ø230 mm (not included)
Noise:
L :
pA
L :
wA
Vibration:
With soft start and rotatable handle
1 1
9 9
20
230 V~ 50 Hz
2350 W
6,500 rpm
93 dB(A), Kpa: 3 dB(A)
104 dB(A), Kpa: 3 dB(A)
Ah,AG: 4.86 m/s
K: 1.5 m/s

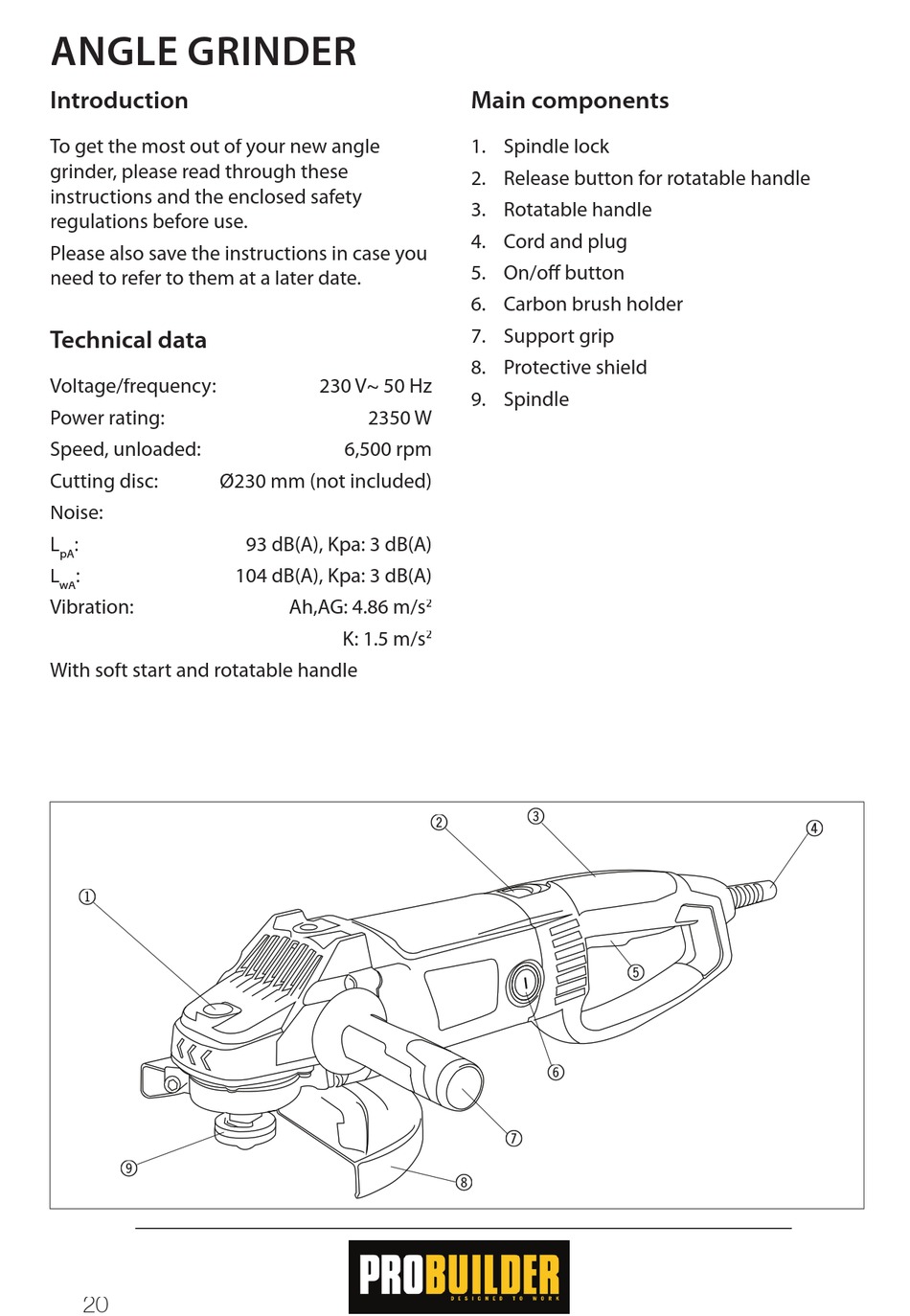

Main components

1. Spindle lock
2. Release button for rotatable handle
3. Rotatable handle
4. Cord and plug
5. On/off button
6. Carbon brush holder
7. Support grip
8. Protective shield
9. Spindle
2
2
3 3
2 2
6 6
7 7
8
5 5
4 4
