Ergotron Glide Wall Mount HD Bedienungsanleitung
Verwandte Anleitungen für Ergotron Glide Wall Mount HD
Inhaltszusammenfassung für Ergotron Glide Wall Mount HD

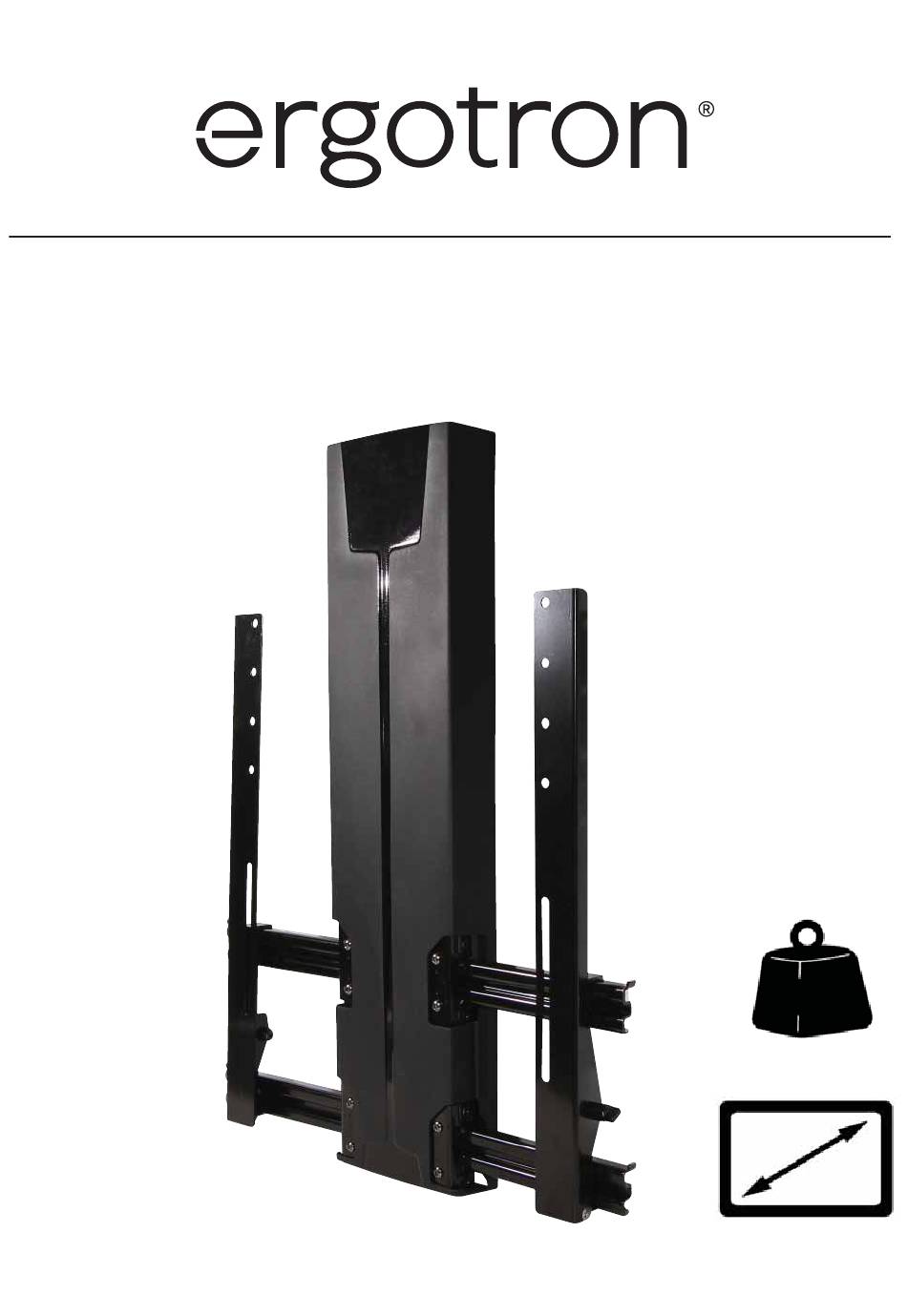

- Seite 1 User's Guide Glide Wall Mount HD CAUTION! MAXIMUM WEIGHT CAPACITY 40 LBS 18.1 KG CAUTION! MAXIMUM SCREEN SIZE 70" www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 1 of 14 888-61-015-W-02 rev. E • 10/19...
- Seite 2 COMPONENTS Screws / Hardware for Flat Panel Part # Qty Description 4 Philips screws M4 x 15mm 4 Philips screws M4 x 30mm 4 Philips screws M5 x 15mm 4 Philips screws M5 x 30mm 4 Philips screws M6 x 15mm 4 Philips screws M6 x 30mm 4 Philips screws M8 x 15mm 4 Philips screws M8 x 30mm...
-
Seite 3: Tools Needed
CAUTION! CAUTION! TOOLS NEEDED MAXIMUM WEIGHT CAPACITY MAXIMUM SCREEN SIZE Tools Needed Herramientas necesarias 70” Outils requis Benötigte Werkzeuge Benodigde gereedschappen 40 LBS Strumenti necessari Potrzebne narzędzia 18.1 KG Potřebné nástroje Szükséges eszközök Απαιτούμενα εργαλεία Ferramentas necessárias Nødvendigt værktøj Tarvittavat työkalut Verktyg som krävs Instrumente necesare Необходими... - Seite 4 Attach Vertical Rails to your TV Attach monitor using monitor hardware, M-A, M-B, etc… Coloque la pantalla utilizando los materiales de instalación de la pantalla, M-A, M-B, etc… Installer le moniteur avec les fi xations de moniteur, M-A, M-B, etc… Bringen Sie den Bildschirm mit den Bildschirm-Befestigungsteilen M-A, M-B usw.
- Seite 5 If mounting a 55” diagonal TV with centrally located VESA hole pattern, locate the lowest set of mounting plate holes 42” from fl oor. You can modify the mounting height according to your TV size, VESA location and personal preference. For more information, please contact Ergotron Customer Care at 800-888-8458, www.ergotron.com Highest position...
- Seite 6 Mounting Option 1 - Wood Stud Mount CAUTION: Before mounting, read "Determine Mounting Height" Instructions on page 5! Drill 4 holes: 2 at stud and 2 at solid wall using appropriate bits. Place template on wall so that it covers at least one wood stud and mark the mounting holes with a pencil.
- Seite 7 Mounting Option 2 - Drywall Mount WARNING: This product should only be mounted to Drywall that is at least 5/8" (16mm) thick. DO NOT mount this product to 1/2" (13mm) thick Drywall. Failure to follow this warning will result in an unstable attachment and may cause equipment damage or personal injury.
- Seite 8 Mounting Option 3 - Solid Wall Mount CAUTION: Before proceeding with this installation consult your TV product guide for manufacturer recommendations on choosing a mounting location that will ensure optimum TV performance. Location considerations might include: TV height and viewing angle - based on height and distance of seating, room dimensions and size of TV; access to power outlets;...
- Seite 9 Attach Horizontal Rails to Lift Assembly M6 x 8mm M5 x 6mm 9 of 14 888-61-015-W-02 rev. E • 10/19...
- Seite 10 Hang the TV on the Lift Assembly Hang with monitor attached Cuelgue con el monitor adherido. Accrochez avec le moniteur installé. Mit dem befestigten Monitor aufhängen. Hang op terwijl de monitor is bevestigd. Appendere con lo schermo attaccato. Powieś z przymocowanym monitorem. Zavěste s připevněným monitorem.
- Seite 11 Route Cables Route Cables Tienda los cables Installez les câbles Verlegen Sie die Kabel Plaats de kabels Use the below items to appropriately route your Inserire i cavi Poprowadź kable power, hdmi, and AV cables. Be aware of pinch points when Natáhněte kabely Vezesse el a kábeleket.
- Seite 12 Product Adjustments It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
- Seite 13 Lift – Up and down Elevación (arriba y abajo) Ajustement en hauteur : bas et haut Höhenverstellung – rauf und runter Verstel in hoogte – Omhoog en omlaag Sollevamento – Su e Giù Lyft – upp och ned リフト(上下) 13 mm 升降（上下）...
- Seite 14 For the latest User Installation Guide please visit: www.ergotron.com For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2011 Ergotron, Inc. All rights reserved.
