Floor Drain; Electrical Connection - SYSTEMPOOL VERSATILE series Vormontage-Installation

VERSÂTILE

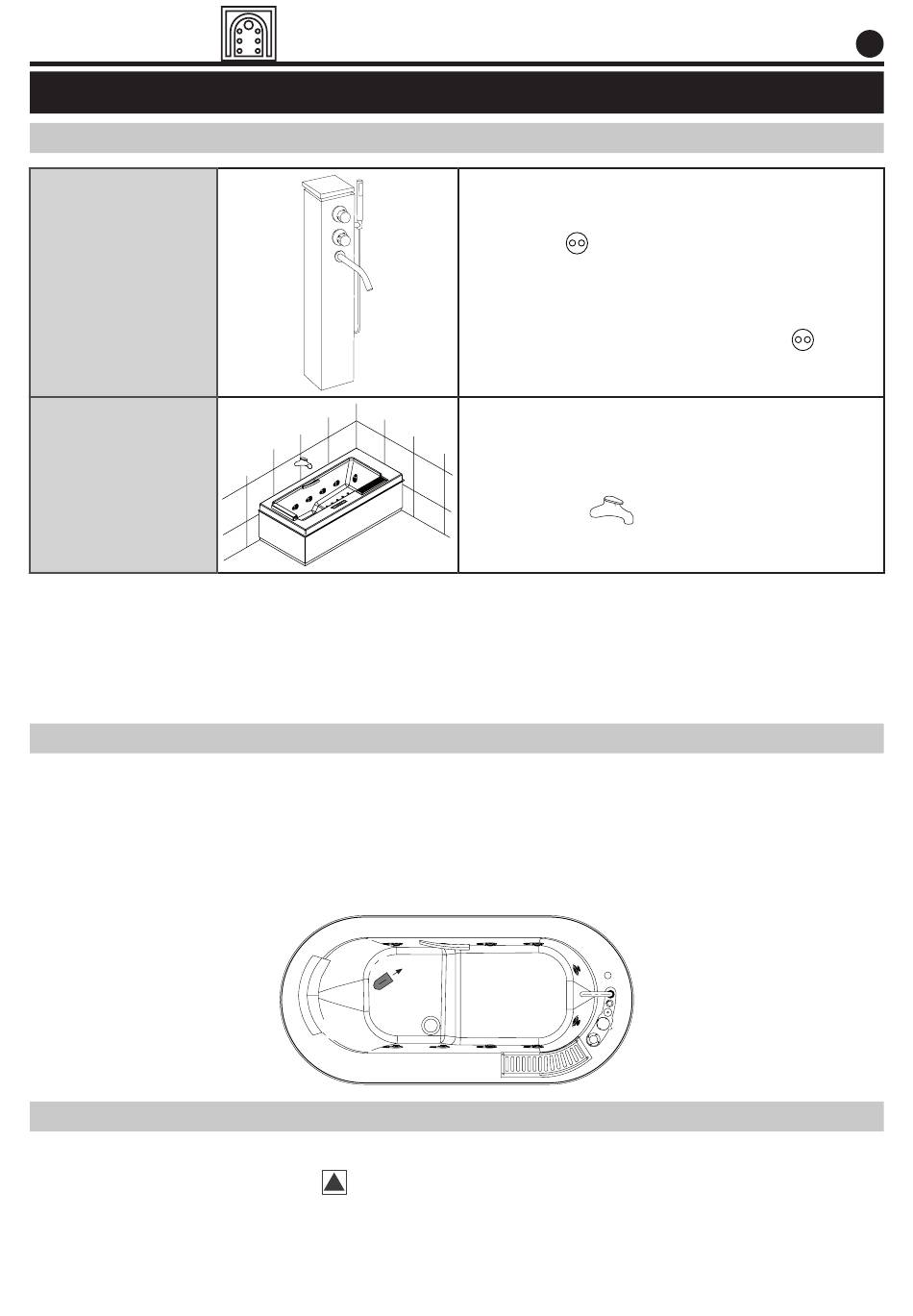

COLD/HOT WATER CONNECTIONS
B) COLUMN
C) WALL
THERMOSTATIC TAPS SETTINGS:
You must ensure that the temperature of your stored hot water is at least 60 degrees centigrade for you to
-
reach the maximum temperature, although not more than 65 degrees centigrade supplied to the SYSTEM-
POOL product.

FLOOR DRAIN

The household drain should be located on the floor, as indicated by the drawing to the right.
The outer diameter of the drain hole should be 40 mm, and for optimum results, installed 5 cm above floor
level. When installing model 506A, make sure that the drain elbow opening is facing the directionindicated
in the following drawing.

ELECTRICAL CONNECTION

We recommend that you install the cable outlet for connecting the bath to the power circuit at floor level (in
the position indicated by the symbol
nection to the bath's wiring box.
PRE-INSTALLATION MANUAL
WATER PRE-INSTALLATION
- Place the 3/4 G male connection points at the cold
and hot water outlets in the positions indicated by
the symbol
and 506 A only. The column can be installed in
any of the positions shown in fig. 6 and 7. Leave a
maximum of 5 cm between connection points.
- Position the water connection points
chosen position (1, 2 or 3) (see page 13).
- Water installation with water supply from exter-
nal tap system (position indicated in figs. 1 and 2
by the symbol
drain
elbow
. Leave a run of approximately 1.5 metres of cable to facilitate con-
7
. Option available in models 503 A,
.
EN
in the
