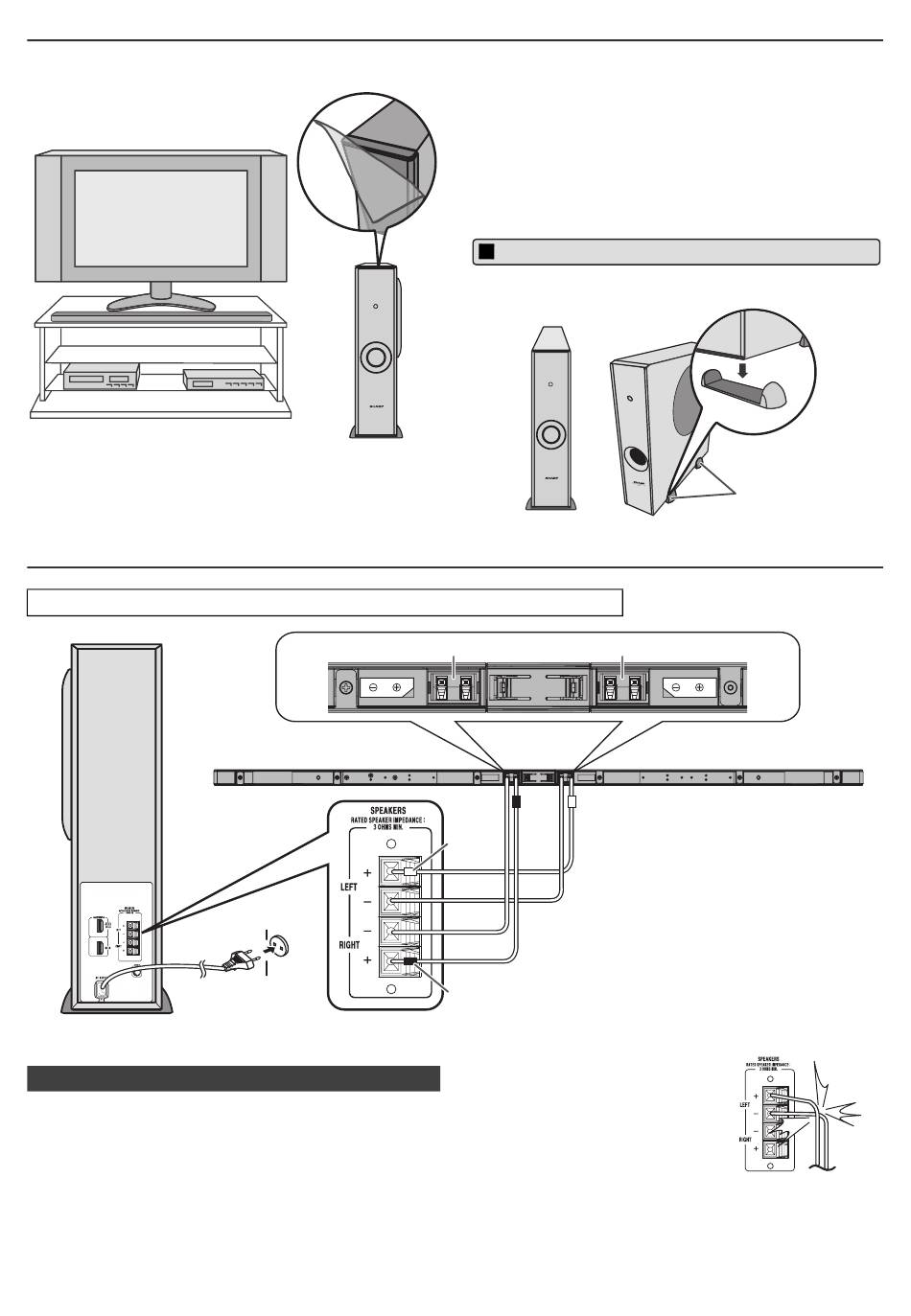

Placing the system
Installation image:
TV
DVD player
BD Player
Place the system as shown.
Remove the protective film covering the sound bar and
subwoofer before using the system.
System connections
Make sure to unplug the AC power lead before making any connections.
Subwoofer
Wall socket
AC 220 - 240 V ~
50 / 60 Hz
Speaker connection
■
Connect the wire without insulation tube to the minus (–)
terminal, and the wire with red and white insulation tube to
the plus (+) terminal.
Caution:
●
Use speaker with an impedance of 3 ohms or more, as
lower impedance speaker can damage the unit.
Notes:
●
As the sound from the system is omni-directional, you
can place the speaker anywhere you like. However, it is
recommended to place it as close to the TV as possible.
●
The front panel of the speaker is not removable.
Caution:
Do not change the installation direction when the unit is
turned on.
Placing the stand
Place the stand as shown.
ACTIVE SUBWOOFER SYSTEM
HT-SL70
Right
R
White
Red
●
Do not make a mistake when
connecting the right and left
speakers. The right speaker is
the one on the right side when
you face the unit.
Do not let the bare speaker
●
wires touch each other.
●
Do not allow any objects to fall
into or to be placed in the bass
reflex duct.
●
Do not stand or sit on the subwoofer/sound bar. You
may be injured.
E-7
SUBWOOFER SYSTEM
ACTIVE SUBWOOFER SYSTEM
HT-SL70
Left
L
Stand
Sound Bar
INCORRECT
