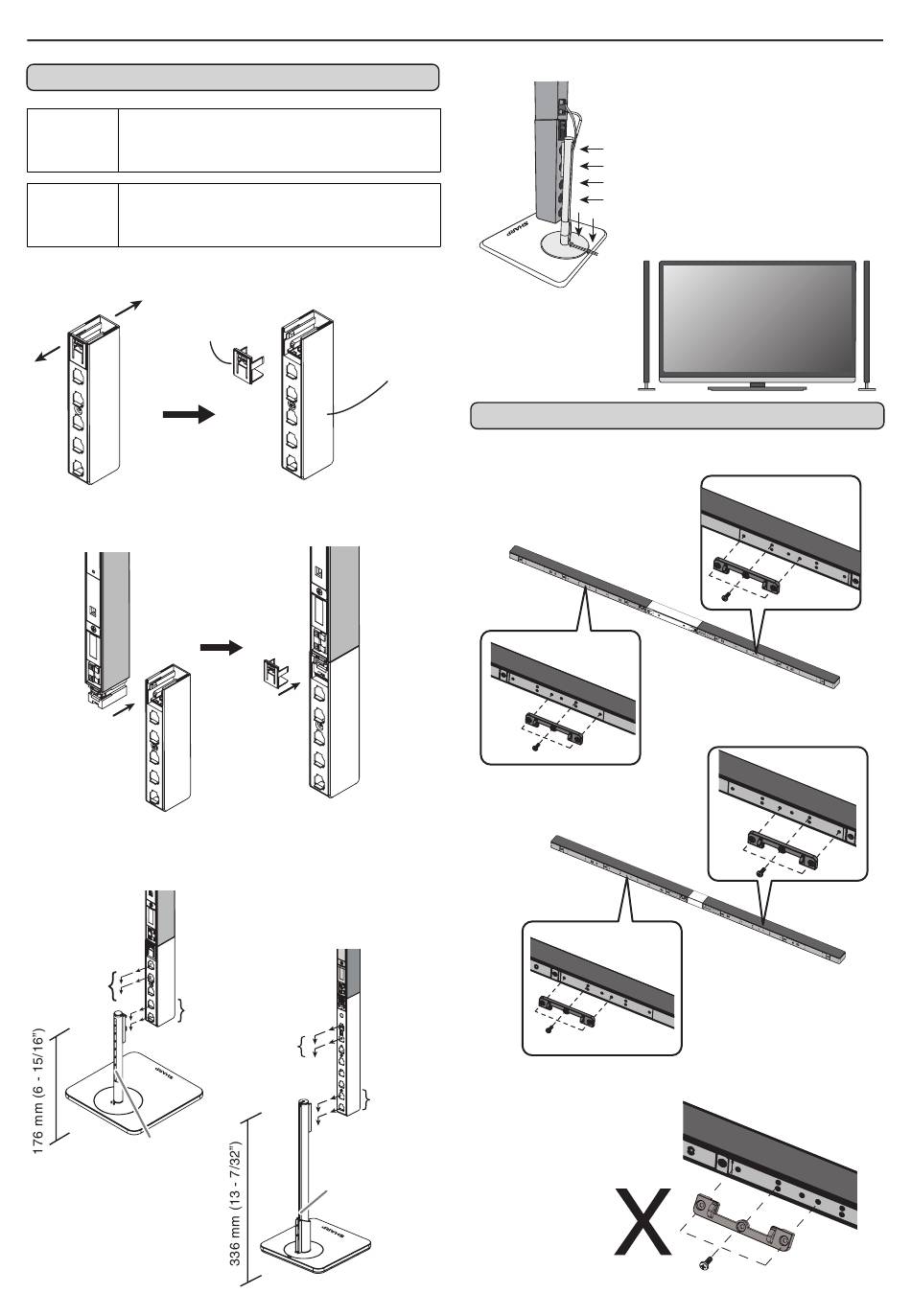

System preparation (continued)
2. Using stand (vertical arrangement)
Use sound bar stand cover (257 mm
For model
(10 - 21/16" )).
HT-SL75
Use stand base (336 mm (13 - 7/32")).
Use sound bar stand cover (155 mm
For model
(6 - 3/32")).
HT-SL70
Use stand base (176 mm (6 - 15/16")).
1. Pull out the cover of sound bar stand as below.
Cover
2. Slot in the sound bar into the sound bar stand and fix its
cover as shown.
3. Slot in the sound bar to the base stand according to your
TV size.
(For model HT-SL70)
46"
(117 cm)
TV
52" (132 cm)
TV
Groove to
neatly arrange
the wire in.
Sound bar
stand cover
(For model HT-SL75)
60" (152 cm)
TV
70"
(177 cm)
TV
Groove to
neatly
arrange the
wire in.
Suggestion of the
sound bars and
LCD TV arrangement.
3. To mount the sound bar on the wall
1. Fix the brackets to the holes as shown.
(Model HT-SL75 : for 60"
(152 cm) and 70" (177 cm) TV)
(Model HT-SL70 : for 52"
(132 cm) TV)
RIGHT
(Model HT-SL70 : for 46"
(117 cm) TV)
Caution:
Be careful not to
fix the bracket
upside down.
E-5
Slot in the wire inside the
groove or slit for better
wire arrangement.
RIGHT
LEFT
LEFT
