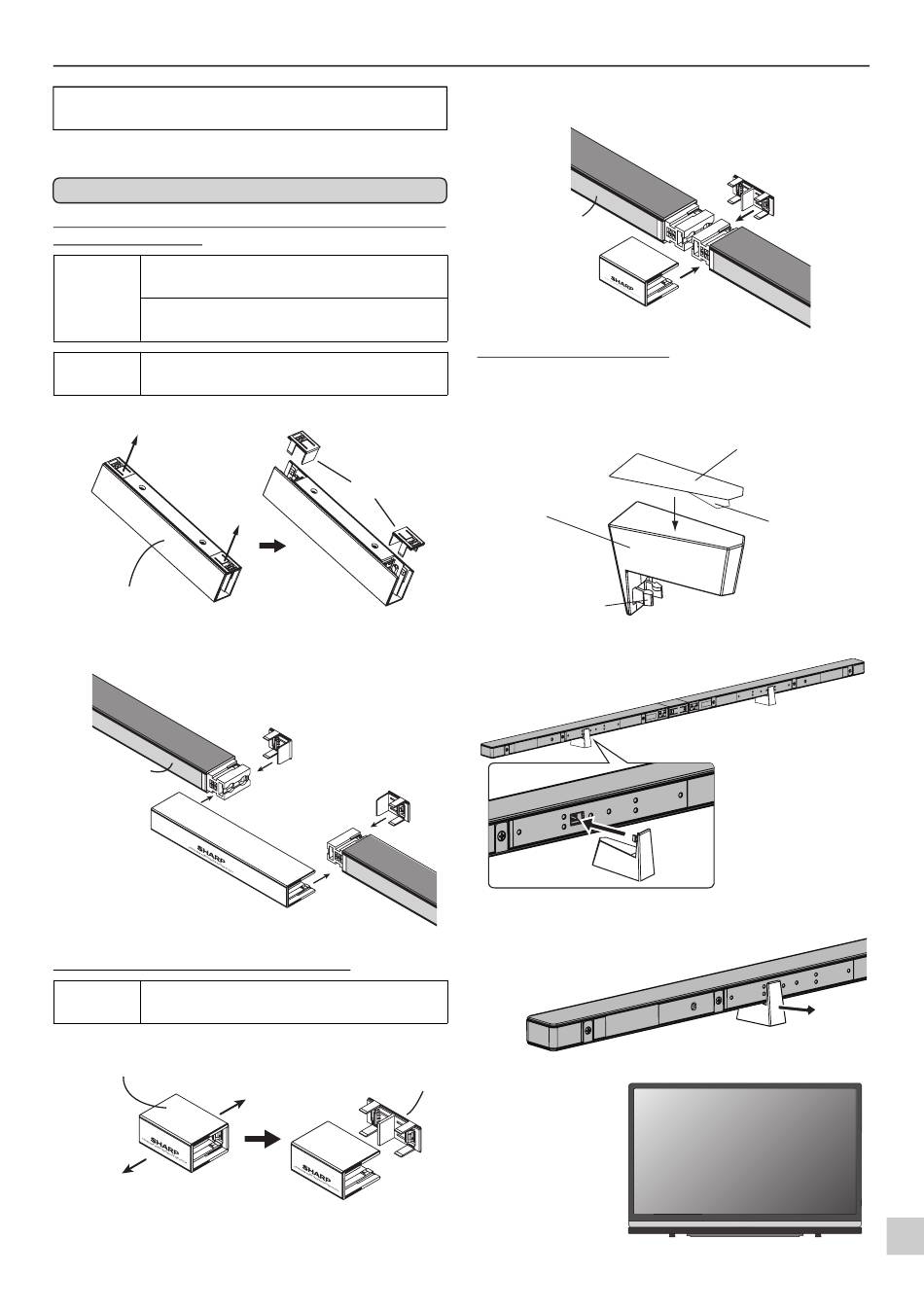

System preparation

Make sure to unplug the AC power lead before
installing the unit or changing the position.
Select from three installation methods according to the
preferred position.
1. Using stand (horizontal arrangement)
For 52" (132 cm), 60" (152 cm) or 70" (177 cm) TV
sound bar assembly
Use Sound bar cover joint (short : 369 mm
(14 - 17/32")) for 60" (152 cm) TV.
For model
HT-SL75
Use Sound bar cover joint (long : 594 mm
(23 - 3/8")) for 70" (177 cm) TV.
For model
Use Sound bar cover joint (long : 188 mm
HT-SL70
(7 - 13/32")) for 52" (132 cm) TV.
1. Pull out both joint covers as below.
Sound bar joint
2. Place the two sound bars near to each other and slot in
the sound bar joint and its covers as below.
Right
Front side of
the sound bar
For 46" (117 cm) TV sound bar assembly
For model
Use Sound bar cover joint (short : 55 mm
HT-SL70
(2 - 5/32")) for 46" (117 cm) TV.
1. Pull out the joint cover as below.
Sound bar joint (short)
2. Place the two sound bars adjacent to each other and
slot in the sound bar joint and its cover as below.
Front side of
the sound bar
To fix the sound bar stand
1. Peel off the double sided tape separator and attach the
sound bar stand cushion at the bottom surface of the
sound bar stand.
Sound bar
Cover
stand
2. Fix the sound bar stand as shown.
Left
Note:
Sound bar stand can be removed
by pulling it off backward from
the sound bar.
Cover
Suggestion of the
sound bars and
LCD TV horizontal
arrangement.
E-4
Right
Sound bar stand cushion
Hook
Left
Double
sided
tape
separator
