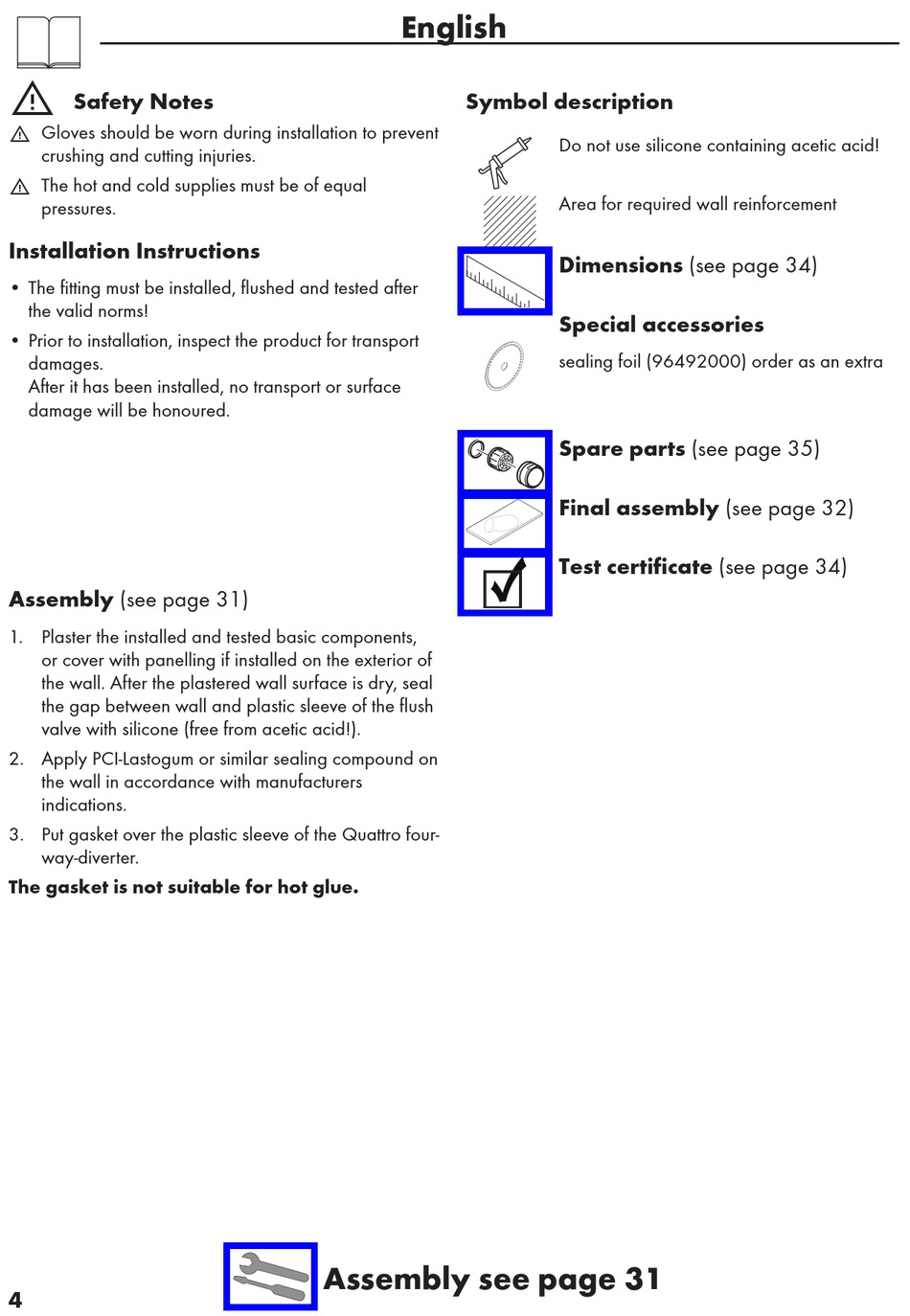

Safety Notes; Symbol Description; Installation Instructions; Special Accessories - Hansgrohe Axor Massaud Montageanleitung

6

Safety Notes

6 Gloves should be worn during installation to prevent
crushing and cutting injuries.
6 The hot and cold supplies must be of equal
pressures.

Installation Instructions

• The fitting must be installed, flushed and tested after
the valid norms!
• Prior to installation, inspect the product for transport
damages.
After it has been installed, no transport or surface
damage will be honoured.
Assembly (see page 31)
1. Plaster the installed and tested basic components,
or cover with panelling if installed on the exterior of
the wall. After the plastered wall surface is dry, seal
the gap between wall and plastic sleeve of the flush
valve with silicone (free from acetic acid!).
2. Apply PCI-Lastogum or similar sealing compound on
the wall in accordance with manufacturers
indications.
3. Put gasket over the plastic sleeve of the Quattro four-
way-diverter.
The gasket is not suitable for hot glue.
4
English

Symbol description

Assembly see page 31
Do not use silicone containing acetic acid!
Area for required wall reinforcement
Dimensions (see page 34)

Special accessories

sealing foil (96492000) order as an extra
Spare parts (see page 35)
Final assembly (see page 32)
Test certificate (see page 34)
