_ SETTING THE SEAT TILT ANGLE

The adjustment straps (10) on the back of the CONCORD QUIX allow you to
steplessly adjust the tilt angle of the backrest.

_ SETTING THE FOOTREST

The footrest (07) can be locked in its top-most position.
manual_QUIX_130315-WEST-final.indd 25

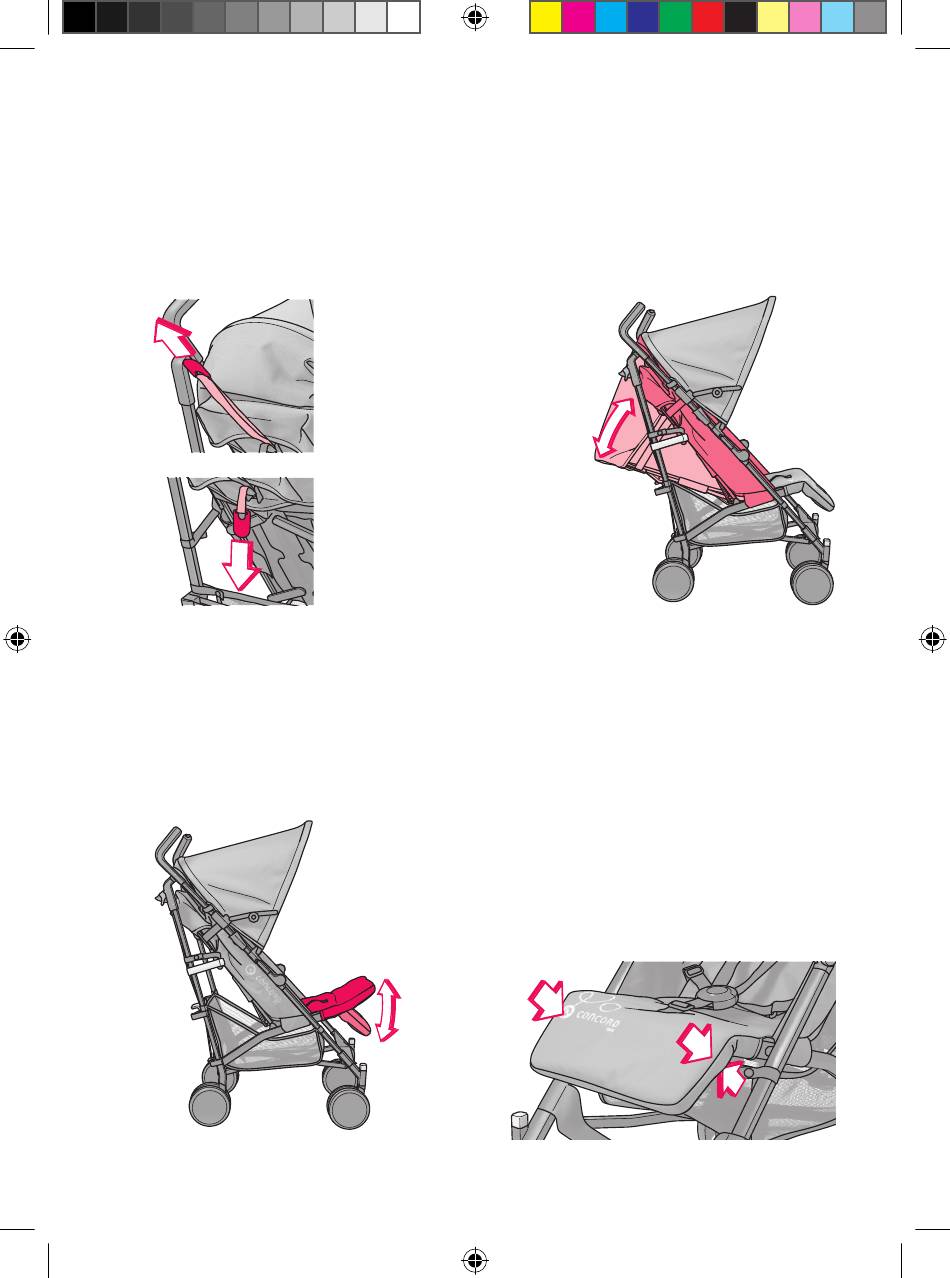

Pulling the upper
adjustment strap will
raise the backrest.
Pulling the lower
adjustment strap will
lower the backrest.
Press the two release levers (06) on the left and
right on the bottom of the footrest to release it.
Now adjust the footrest (07) downwards and let
go of the release lever (06).
