5 Assembly of Air Discharge Outlet

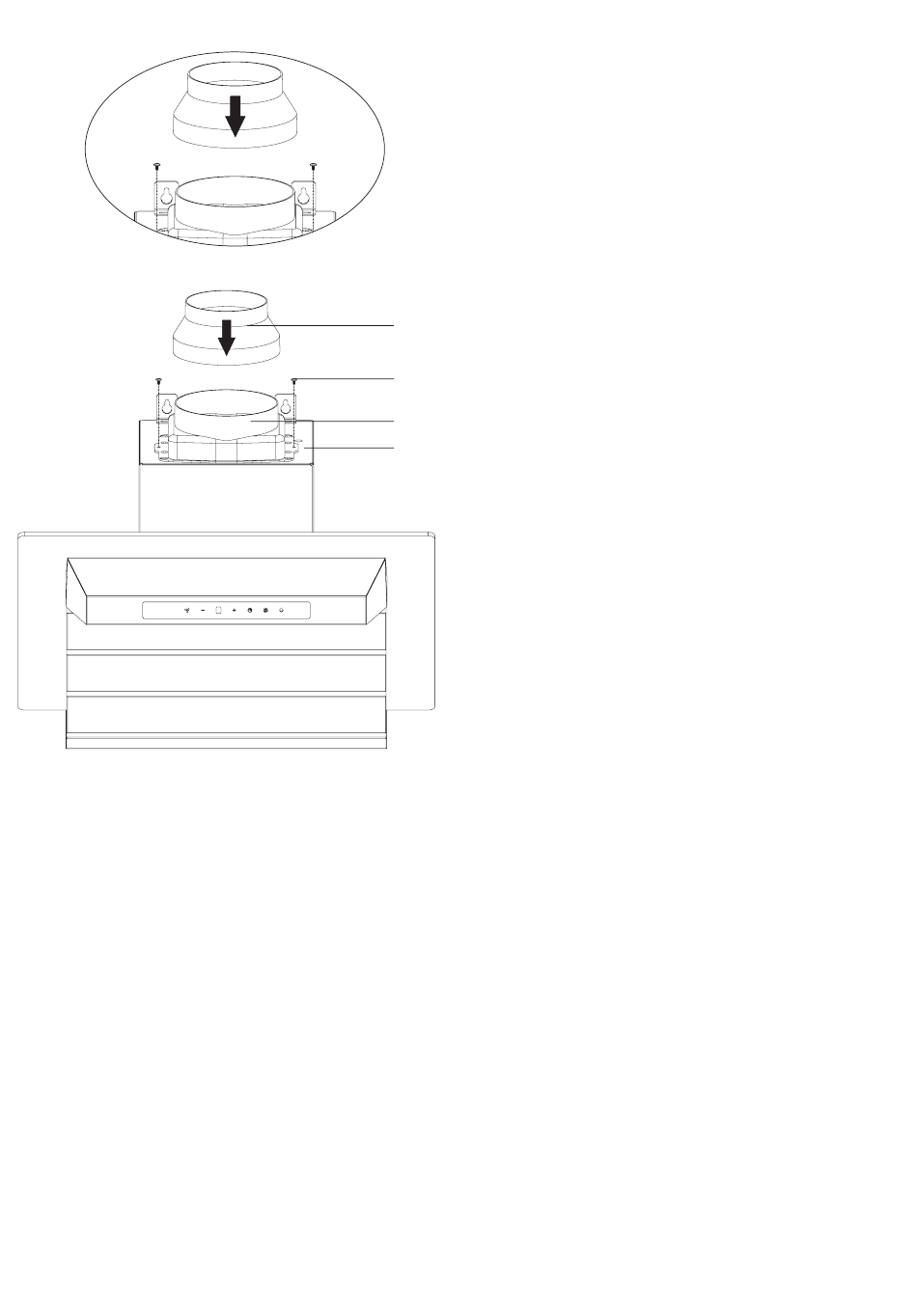

Figure 4
1 Ø150/120 mm Flue Adapter (Option)
2 2x 3 5x9 5 Screw
3 Ø120/150 mm Plastic Flue
4 Body
Attach the plastic flue to the product's body (Figure
1
4).
2
3
4
- Connect the flue adapter to the plastic flue when
required.
- Assemble the cooker hood with the help of the
assembly scheme.
For this;
- Affix the assembly pattern on the wall, at the
specified height (See the minimum and maximum
distances intended for the worktop, in the assembly
pattern). Perforate points A, B, C and D. (Figure 3)
- Insert Ø10mm wall plugs into the holes drilled as
A, B, C and D, and screw down the screws at the
points A + B, in such a way as to remain 5mm space
between the screw head and the wall. (Figure 3)
Affix the hanging plate of the cooker hood on the
body of the cooker hood with 3 x M5x35 screws
(Figure 3 - 4).
- Hang it on the wall with the hanging plate of the
cooker hood. If the cooker hood is not parallel,
loosen or tighten M5x35 screws to make the cooker
hood parallel.
- Tighten A + B (5) fixing screw on the wall, and
completely secure the product from its points D and
C.
