6 Assembly of Flues

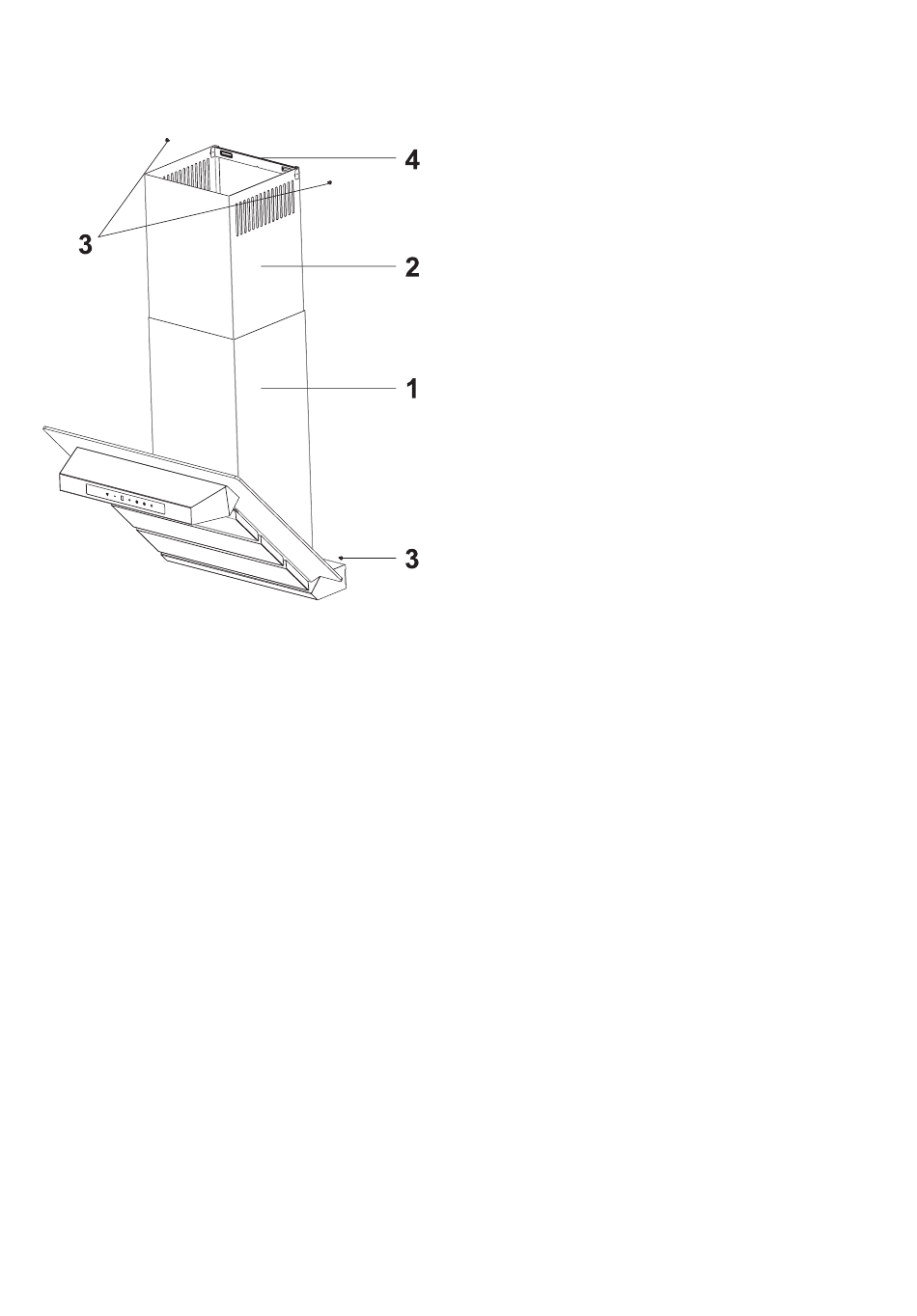

Figure 5 : Installation of the Sheet Metal Flue
1 Outer Flue
2 Inner Flue
3 Flue Fixing Screws
4 Flue Connection Plate
Fit the air outlet pipe of the product to the plastic flue
1 or 2. Figure 5
The outer and inner sheet metal flues (Figure 5) are
encased one within the other.
For this;
- The cooker hood is set in the midst, and then the
flue connecting plate (8) is directly affixed to the wall,
under the cover or points E and F are marked after
performing a measurement. Figure 3
- Drill points E and F with Ø6mm drill bit, and
insert Ø6mm plastic wall plugs (9). Insert the flue
connection plate with 3,9x22 screws (7). Figure 3
- Mount the Outer Flue (1) to the body of cooker
with screws (2). Secure the inner flue (2) on flue
connection plate (4)
by using screws. Figure 5
10
