7

Additional functions

8008782.14BT | SICK
Subject to change without notice

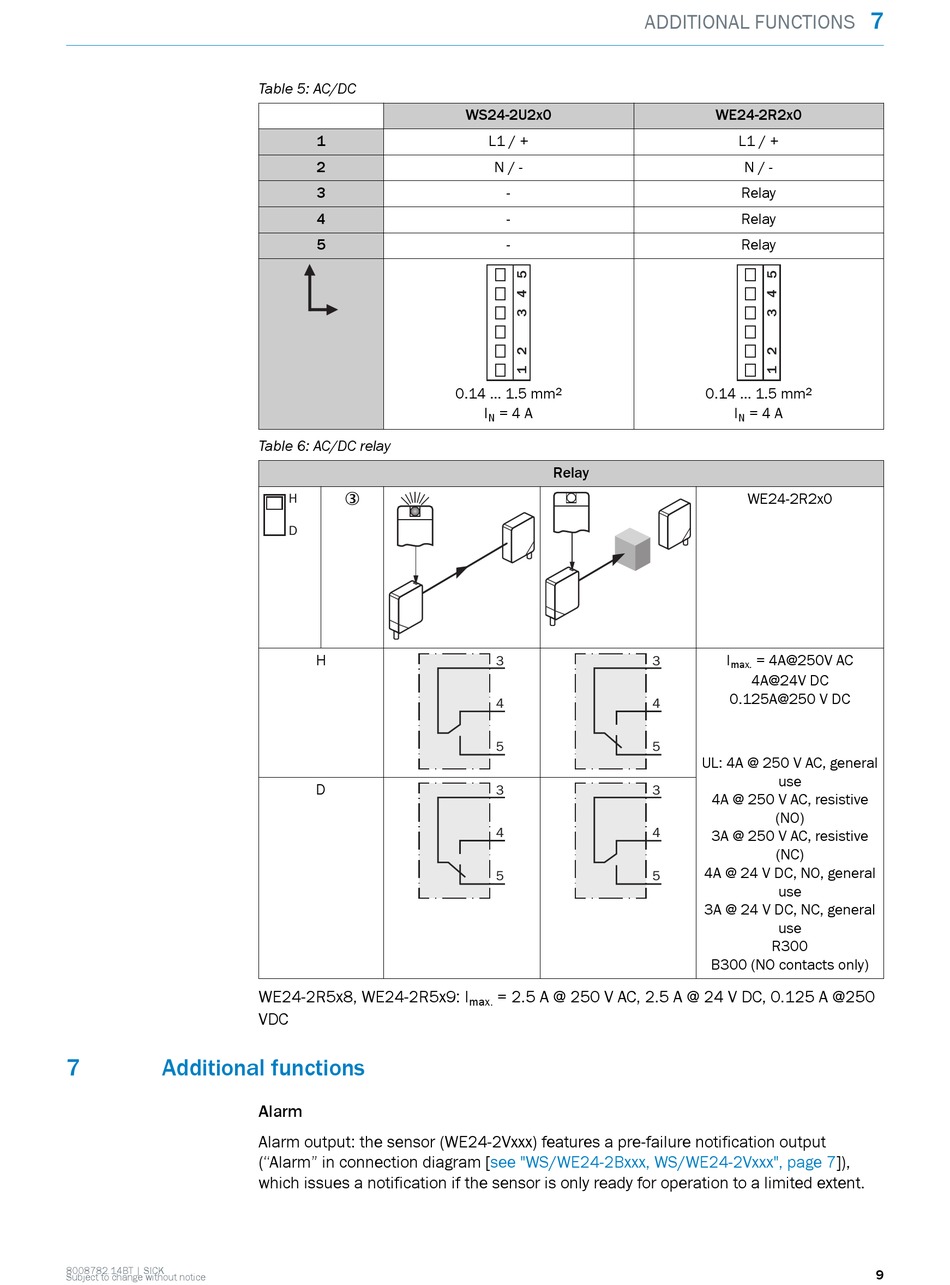

Table 5: AC/DC
1
2
3
4
5
Table 6: AC/DC relay
3
H
D
H
D
WE24-2R5x8, WE24-2R5x9: I
VDC
Alarm
Alarm output: the sensor (WE24-2Vxxx) features a pre-failure notification output
("Alarm" in connection diagram
which issues a notification if the sensor is only ready for operation to a limited extent.
WS24-2U2x0
L1 / +
N / -
-
-
-
0.14 ... 1.5 mm 2
I = 4 A
N
Relay
3
4
5
3
4
5
= 2.5 A @ 250 V AC, 2.5 A @ 24 V DC, 0.125 A @250
max.
[see "WS/WE24-2Bxxx, WS/WE24-2Vxxx", page
ADDITIONAL FUNCTIONS
WE24-2R2x0
L1 / +
N / -
Relay
Relay
Relay
0.14 ... 1.5 mm 2
I = 4 A
N
WE24-2R2x0
I = 4A@250V AC
3
max.
4A@24V DC
0.125A@250 V DC
4
5
UL: 4A @ 250 V AC, general
use
3
4A @ 250 V AC, resistive
(NO)
4 3A @ 250 V AC, resistive
(NC)
4A @ 24 V DC, NO, general
5
use
3A @ 24 V DC, NC, general
use
R300
B300 (NO contacts only)
7
7]),
9
