9.6

SITRANS TSinsert - measuring inserts for SITRANS TS500

①
American version
②
European version
②
Ⓐ To , cold end: Ceramic base
②
Ⓑ To , cold end: Free wire ends
②
Ⓒ To , cold end: Mounted transmitter
B Length of measuring insert

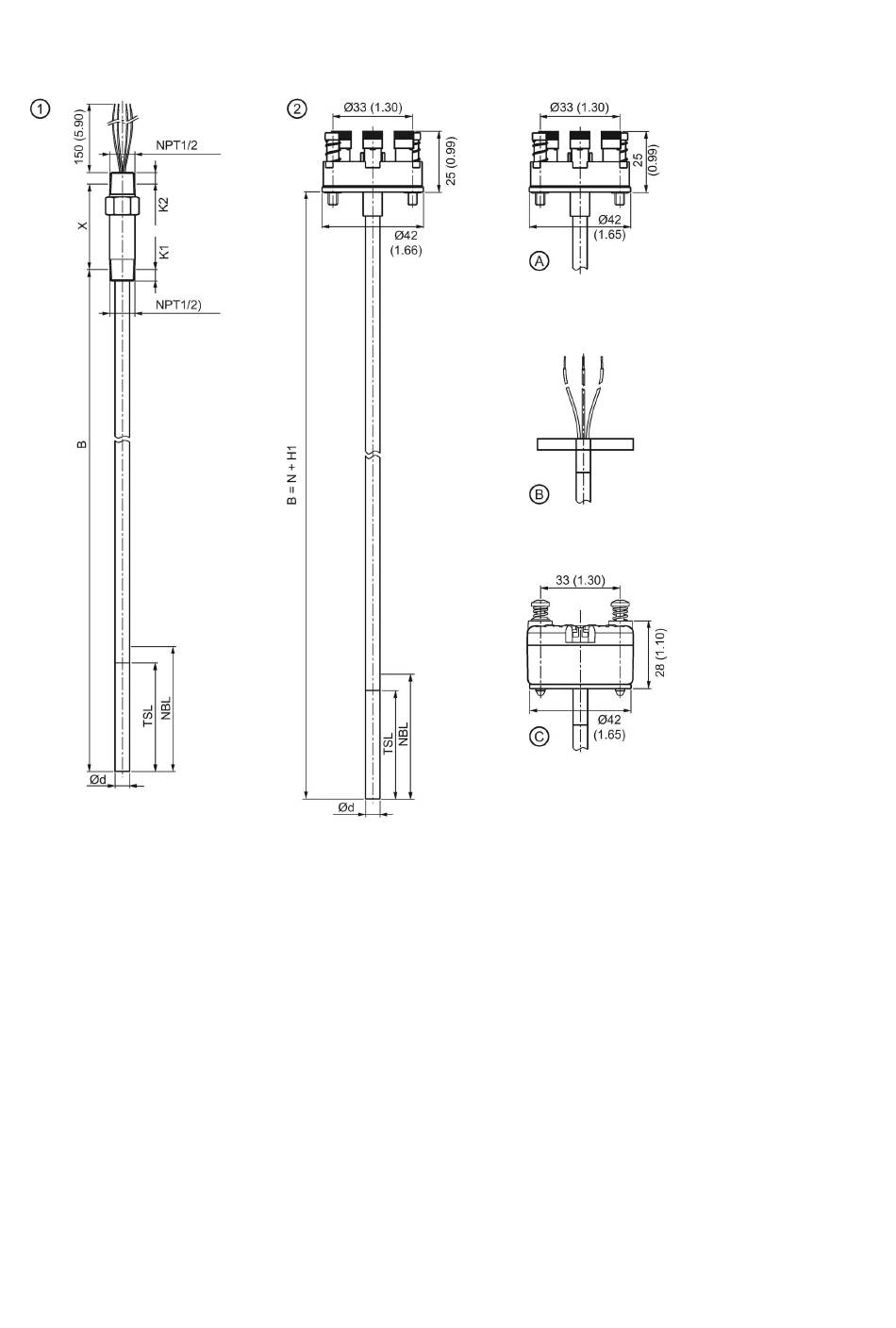

Image 9-29 Dimensional drawings SITRANS TSinsert - measuring inserts for SITRANS TS500 - dimensions in mm (inch)
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
A5E03920348-AC, 06/2016
∅d External diameter of measuring insert
K1, 2 Penetration depth
N Nominal length
NBL Non bendable length
TSL Temperature sensitive length
X Extension
65
