VTrak S3000 Quick Start Guide

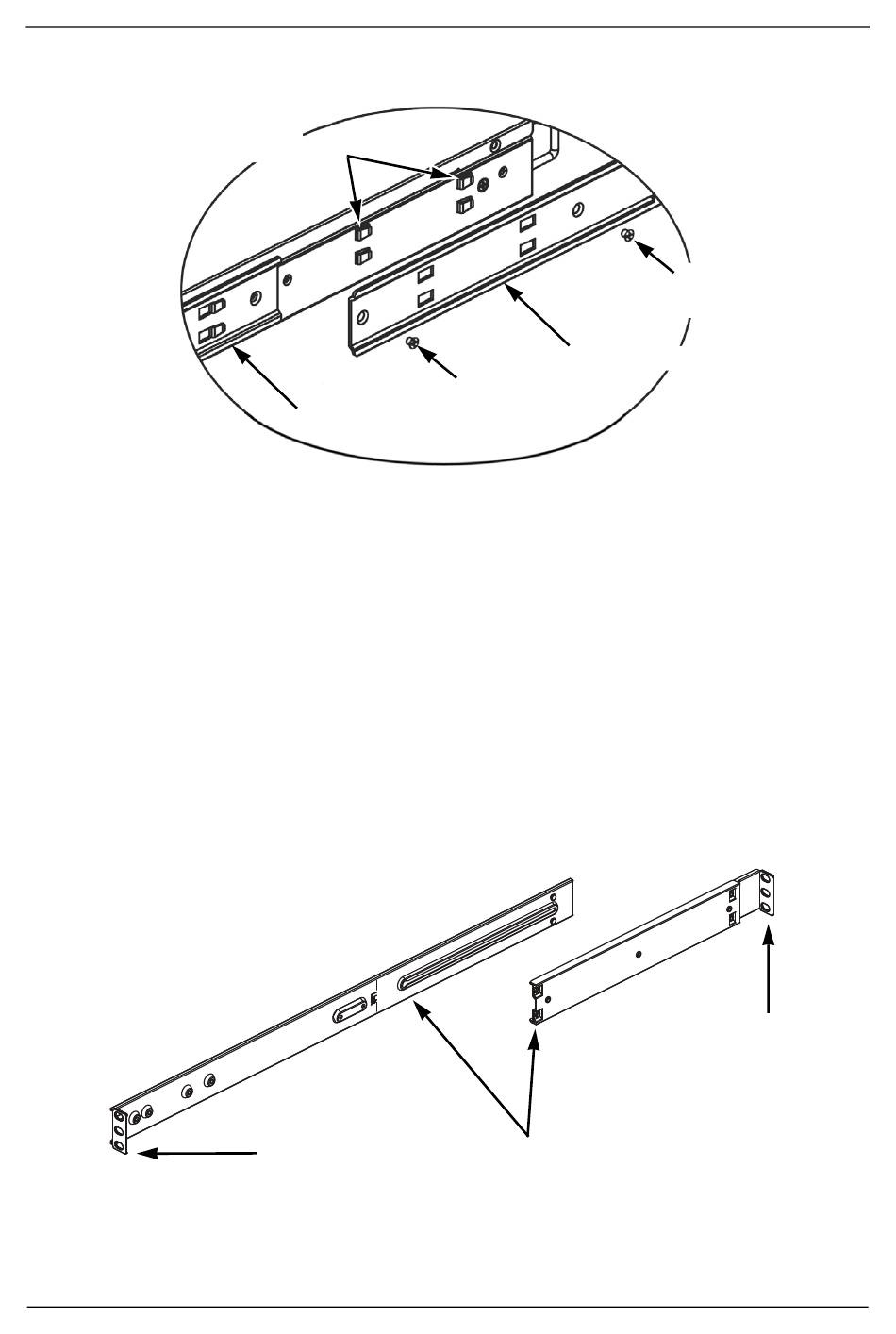

Figure 2. Assembling the chassis rails
Installing the Rack Rails into the Rack
1. Attach the longer section of the rack rail to the shorter section of the rack rail.
Align the pins with the slides. Both brackets of the rack rail must face the
same direction in order to secure to the rack.
2. Adjust the length of the two sections of the rack rail so that they fit snugly in
the rack. See Figure 3.
The longer section of the rack rail attaches to the front rack post.
•
The shorter section of the rack rail attaches to the rear rack post
•
Figure 3. Assembling the rack rails
3. Secure the rail brackets to the rack posts.
Use the M5 screws included with the rackmount kit. See page 7, Figure 4.
Aligning hooks
Inner rail
Front bracket
Inner rail extension
Attaching
screw
Attaching points
6
Attaching
screw
Rear bracket
