Receiver Home Screen
The home screen displays the following
information for each receiver channel:
• Group and Channel
• Transmitter Status: NoTx or TxOn, battery
icon/remaining battery life
Press the SEL button to access a channel
menu screen.

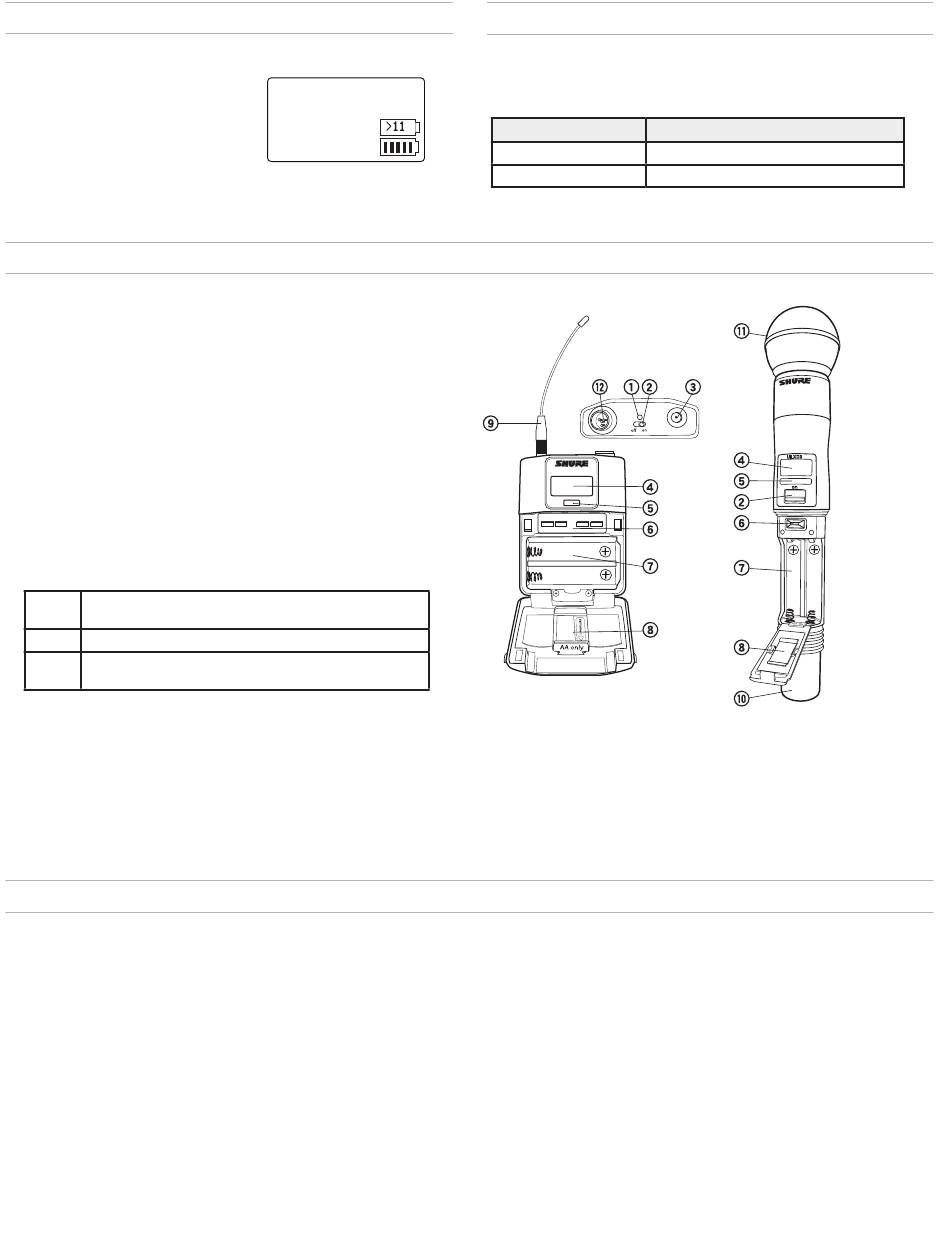

Transmitters
① Power LED
- Green = unit is powered on
- Red = low battery or battery error (see Troubleshooting)
- Amber = power switch is disabled
② On/Off Switch
Powers the unit on or off.
③ SMA Connector
Connection point for RF antenna.
④ LCD Display:
View menu screens and settings. Press any control button to activate the backlight.
⑤ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter
programming.
⑥ Menu Navigation Buttons
Use to navigate through parameter menus and change values.
Acts as a 'back' button to return to previous menus or
exit
parameters without confirming a value change
Enters menu screens and confirms parameter changes
enter
Use to scroll through menu screens and to change
▼▲
parameter values
⑦ Battery Compartment
Requires Shure SB900 rechargeable battery or 2 AA batteries.
⑧ AA Battery Adapter
- Handheld: rotate and store in the battery compartment to use a Shure SB900
battery
- Bodypack: remove to accommodate a Shure SB900 battery
⑨ Bodypack Antenna
For RF signal transmission.
Locking Controls and Settings
Use the LOCK feature to prevent accidental or unauthorized changes to the hardware.
Receiver
Menu path: DEVICE UTILITIES > LOCK
Use the control wheel to select and lock any of the following receiver functions.
• MENU: All menu paths are inaccessible
• GAIN: Gain adjustment is locked
• POWER: Power switch is disabled
• SCN/SYC: Cannot perform a Scan and Sync
Tip: To unlock, press the EXIT button, turn the control wheel to select UNLOCKED, and
then press ENTER to save.
12
1 G:01 CH:01
TxOn
2 G:01 CH:02
TxOn
3 G:01 CH:03
TxOn
4 G:01 CH:04
TxOn
Receiver Output Level
The following table describes the typical total system gain from the audio input to the
receiver outputs:
Receiver Output Gain
Output Jack
System Gain (gain control = 0dB)
XLR (line setting)
+24 dB
XLR (mic setting)
-6 dB*
*This setting matches a typical wired SM58 audio signal level.
ULXD1
⑩ Integrated Antenna
For RF signal transmission.
⑪ Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
⑫ TA4M Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
Transmitter
Menu path: UTILITY > LOCK
Use the transmitter controls to select and lock any of the following transmitter functions.
• MENU LOCK: All menu paths are inaccessible.
• POWER LOCK: Power switch is disabled
Quick-Lock Option: To turn on the transmitter with its power and menu navigation
buttons locked, press and hold the ▲ button during power-on until the locked message
is displayed.
Tip: To unlock the MENU LOCK, press the ENTER button 4 times to pass through the
following screens: UTILITY > LOCK > MENU UNLOCK
To unlock the POWER LOCK, set the power switch to the off position, then press and hold
the ▲ button while resetting the power switch to the on position.
ULXD2
on
