Receiver
1
ULXD4Q
Digital Wireless Receiver
IR

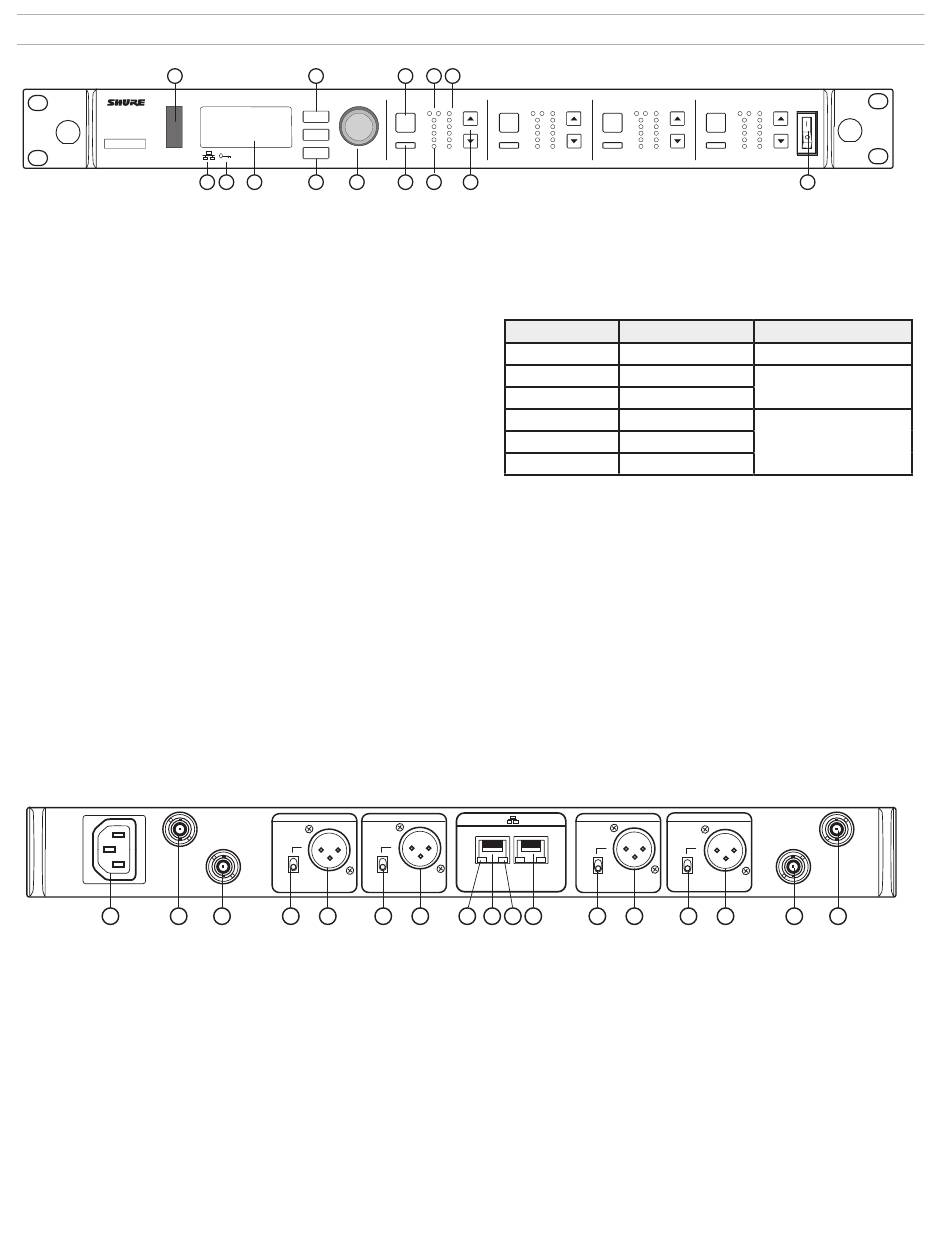

Front Panel

① Infrared (IR) Sync Window
Sends IR signal to the transmitter for sync.
② Network Icon
Illuminates when the receiver is connected with other Shure devices on the network.
IP Address must be valid to enable networked control.
③ Encryption Icon
Illuminates when AES-256 encryption is activated.
④ LCD Panel
Displays settings and parameters.
⑤ Scan Button
Press to find the best channel or group.
⑥ Menu Navigation Buttons
Use to navigate and select parameter menus.
⑦ Control Wheel
- Push to select a channel or menu item
- Turn to scroll through menu items or to edit a parameter value
⑧ Channel Select Button
Press to select a channel.
⑨ Sync Button
Press the sync button while the receiver and transmitter IR windows are aligned to
transfer settings from the receiver to the transmitter.
⑩ RF Diversity LEDs
Indicate antenna status:
- Blue = normal RF signal between the receiver and transmitter
- Red = interference detected
- Off = No RF connection between the receiver and transmitter
Note: the receiver will not output audio unless one blue LED is illuminated.
1 2

Back Panel

① AC Power Input
IEC Connector, 100 - 240 V AC.
② RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
③ RF Cascade Jack (2)
Passes the RF signal from Antenna A and
Antenna B to one additional receiver.
④ Mic/Line Switch (one per channel)
Applies a 30 dB pad in mic position.
6
control
ENTER
EXIT
SCAN
push
2 3 4 5 7
B
output 4
line line
mic mic
3 4 5 4
⑤ Balanced XLR Audio Output (one per
channel)
Connect to a mic or line level input.
⑥ Network Status LED (Green)
One per network port.
- Off = no link
- On = network link
- Flashing = network link active
⑦ Ethernet/Dante Network Secondary Port
Connect to an Ethernet network to enable remote
device control via WWB6 software. Also carries
Dante digital audio and control signals for audio
distribution, monitoring, and recording - see Dante
Network topic.
8 10 12
RX1 RX2
audio gain audio gain
RF RF
A B A B
OL OL
SEL
SEL OL OL
sync
sync
9 11 13
⑪ RF Signal Strength LEDs
Indicate the RF signal strength from the transmitter:
- Amber = Normal (-90 to -70 dBm)
- Red = Overload (greater than -25 dBm)
⑫ Audio LEDs
Indicate average and peak audio levels:
LED
Red (6)
Yellow (5)
Yellow (4)
Green (3)
Green (2)
Green (1)
Note: In Frequency Diversity mode, simultaneous blinking of the red and yellow audio
LEDs indicates that diversity audio has been routed to this channel.
⑬ Gain Buttons
Press the ▲▼ gain buttons on the front of the receiver to incrementally adjust gain
from -18 to +42 dB.
⑭ Power Switch
Powers the unit on or off.
output 3
Secondary Primary
5 6 7 8 9
RX3 RX4
audio gain audio
RF RF
A B A B
OL
SEL
OL SEL OL
sync sync
Audio Signal Level
-0.1 dBFS
-6 dBFS
-12 dBFS
-20 dBFS
-30 dBFS
-40 dBFS
output 2 output 1
line line
mic mic
4 5 4 5
⑧ Network Speed LED (Amber)
One per network port.
- Off = 10/100 Mbps
- On = 1 Gbps
⑨ Ethernet/Dante Network Primary Port
Connect to an Ethernet network to enable remote device
control via WWB6 software. Also carries Dante digital audio
and control signals for audio distribution, monitoring, and
recording - see Dante Network topic.
gain power
OL
14
Description
Overload/ limiter
Normal peaks
Signal Present
A
3 2
11
