VERTIV GEIST UPGRADEABLE PDU
TM TM
Quick Installation Guide
TO REMOVE IMD:
The IMD is designed to be field
replaceable by qualified service
personnel only. The IMD module is
hot-swappable, meaning it is
designed to be replaceable while
the PDU is still connected to AC
power.
NOTE: Be sure to have the new
IMD module ready for installation
immediately after removal of the
old IMD.
1
3
4
2
VM1158/590-2142-663D

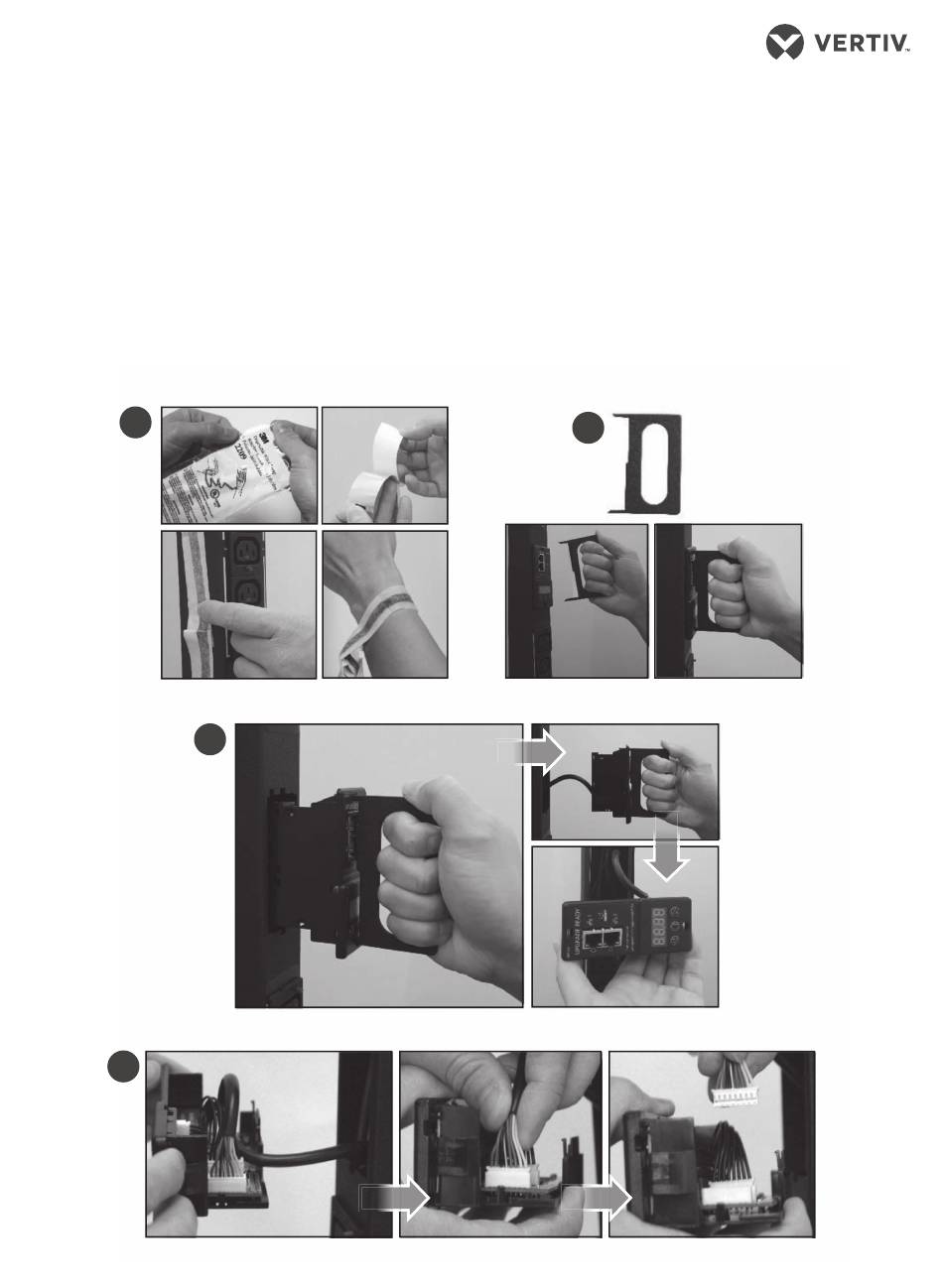

1. Remove the disposable ESD
wrist strap from the package,
remove adhesive backing and
attach to PDU. Put the wrist
strap on your arm so that it has
contact with bare skin.
2. Insert the Vertiv IMD Removal
Tool as shown. Be sure to press
the tool in level, pressing in until
the tool is flush with face of the
IMD. Some older versions may
require overlays to be removed
prior to inserting tool.
3. Carefully pull the tool and IMD
straight out about 2 inches.
Remove tool from IMD.
CAUTION: The IMD is still
connected internally. Do not
pull it more than 2 inches from
chassis.
4. Gently unplug the connector
from the IMD.
