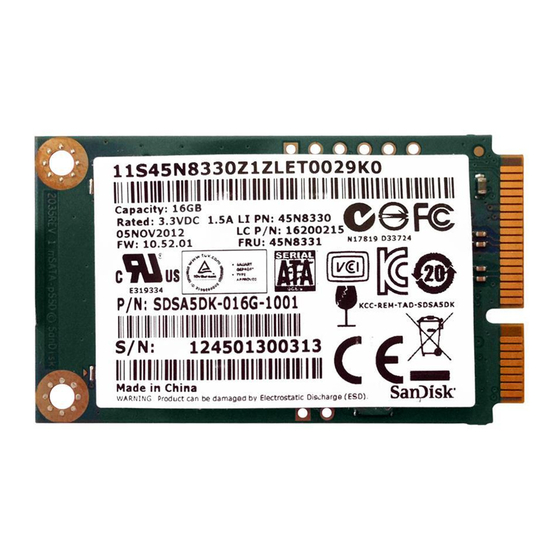

Product description The mSATA card provides a solution to accelerate the startup process of the computer ® and reduce the time for application loading and responding. After enabling the Lenovo ExpressCache software on your computer, the mSATA card automatically caches commonly used files to improve the overall storage performance.
Seite 6
ThinkPad 16GB mSATA Solid State Cache Drive User Guide...
Seite 8
Follow the instructions provided by the Web site to download and install the updates. Online technical support is available through the Lenovo Support Web site at: http://www.lenovo.com/support ThinkPad 16GB mSATA Solid State Cache Drive User Guide...
Seite 9
Note: It is recommended that you uninstall any previously installed mSATA card software before installing the Lenovo ExpressCache software. To install the Lenovo ExpressCache software on the Windows 7, Windows 8, or Windows 8.1 operating system, do the following: 1. Go to http://www.lenovo.com/support/LenovoExpressCache.
Seite 10
ThinkPad 16GB mSATA Solid State Cache Drive User Guide...
Seite 11
2. Click OK to confirm the operation. Checking the working status To check the working status of the Lenovo ExpressCache software, click the ? icon on the top-right corner of the ExpressCache window. A menu is displayed. • Click Help to go to the support Web site to find the most frequently asked questions and troubleshooting tips.
Seite 12
• Click Do not start with Windows to disable or click Start with Windows to enable the auto-start of the Lenovo ExpressCache software when you start the operating system. • Click About to view the version of the Lenovo ExpressCache software.
Popis produktu Karta mSATA umožňuje zrychlit proces spouštění počítače a zkrátit dobu načítání aplikací ® a odezvy počítače. Jakmile v počítači povolíte software Lenovo ExpressCache karta mSATA automaticky uloží běžně používané soubory do mezipaměti a vylepší tak celkový výkon úložiště.
Seite 14
Uživatelská příručka pro ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 16
Technická podpora online je dostupná na webové stránce podpory Lenovo na adrese: http://www.lenovo.com/support Uživatelská příručka pro ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 17
Kapitola 3. Instalace softwaru Lenovo ExpressCache Poznámka: Před instalací softwaru Lenovo ExpressCache je doporučeno nejprve odinstalovat dříve nainstalovaný software pro kartu mSATA. Software Lenovo ExpressCache v systému Windows 7, Windows 8 nebo Windows 8.1 nainstalujete takto: 1. Přejděte na webovou stránku http://www.lenovo.com/support/LenovoExpressCache.
Seite 18
Uživatelská příručka pro ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 19
1. V okně ExpressCache zrušte nebo vyberte zaškrtnutí políčka Povolit ukládání do mezipaměti. 2. Klepnutím na tlačítko OK potvrďte operaci. Poznámka: Po instalaci softwaru Lenovo ExpressCache je ukládání do mezipaměti ve výchozím nastavení povoleno. Vymazání mezipaměti Chcete-li vymazat mezipaměť, postupujte takto: 1.
Seite 20
Spustit spolu se systémem Windows povolíte automatické spuštění softwaru Lenovo ExpressCache při spuštění operačního systému. • Klepnutím na tlačítko O programu zobrazíte verzi softwaru Lenovo ExpressCache. Zobrazení ikony ExpressCache Po instalaci programu Lenovo ExpressCache se ikona zobrazí v oznamovací oblasti systému Windows.
Seite 21
• Zelená: Ukládání do mezipaměti je povoleno. • Červená: Ukládání do mezipaměti je zakázáno. Kapitola 4. Použití softwaru Lenovo ExpressCache 21...
Seite 22
Uživatelská příručka pro ThinkPad 16GB mSATA Solid State Cache Drive...
Die mSATA-Karte bietet eine Lösung, um den Startvorgang des Computers zu beschleunigen und verringert somit die Zeit, die zum Laden und Reagieren ® der Anwendungen erforderlich ist. Nach dem Aktivieren der Lenovo ExpressCache -Software auf dem Computer werden automatisch häufig verwendete Dateien von der mSATA-Karte zwischengespeichert, um die Gesamtspeicherleistung zu verbessern.
Seite 24
• Microsoft Windows 7 ThinkPad 16GB mSATA Solid State Cache Drive – Benutzerhandbuch...
Seite 26
Dienstprogrammen, Einheitentreibern und anderen Softwareanwendungen. Befolgen Sie die auf der Website bereitgestellten Anweisungen zum Herunterladen und Installieren der Aktualisierungen. Technische Unterstützung erhalten Sie online über die Lenovo Support Website unter http://www.lenovo.com/support ThinkPad 16GB mSATA Solid State Cache Drive – Benutzerhandbuch...
Anmerkung: Es wird empfohlen, dass Sie vor der Installation der Lenovo ExpressCache-Software bereits installierte Software für die mSATA-Karte deinstallieren. Gehen Sie wie folgt vor, um die Lenovo ExpressCache-Software unter Windows 7, Windows 8 oder Windows 8.1 zu installieren: 1. Rufen Sie http://www.lenovo.com/support/LenovoExpressCache auf.
Seite 28
ThinkPad 16GB mSATA Solid State Cache Drive – Benutzerhandbuch...
1. Aktivieren oder deaktivieren Sie im ExpressCache-Fenster die Option Cache aktivieren. 2. Klicken Sie auf OK, um den Vorgang zu bestätigen. Anmerkung: Nach der Installation der Lenovo ExpressCache-Software ist der Cache standardmäßig aktiviert. Cache löschen Gehen Sie wie folgt vor, um den Cache zu löschen: 1.
• Klicken Sie auf Nicht mit Windows starten zum Deaktivieren und auf Mit Windows starten zum Aktivieren des automatischen Starts der Lenovo ExpressCache-Software beim Start des Betriebssystems. • Klicken Sie auf Info, um die Version der Lenovo ExpressCache-Software anzuzeigen. Anzeigen des ExpressCache-Symbols Nach der Installation der Lenovo ExpressCache-Software, wird das Lenovo ExpressCache-Symbol im Windows-Infobereich angezeigt.
Seite 31
ExpressCache-Anwendung starten oder beenden, indem Sie mit der rechten Maustaste auf das Lenovo ExpressCache-Symbol klicken. Die Farbe des Lenovo ExpressCache-Symbols zeigt den aktuellen Cache-Status an: • Grün: Der Cache ist aktiviert. • Rot: Der Cache ist deaktiviert. Kapitel 4. Lenovo ExpressCache-Software verwenden 31...
Seite 32
ThinkPad 16GB mSATA Solid State Cache Drive – Benutzerhandbuch...
Seite 36
Siga las instrucciones que se indican en el sitio Web para descargar e instalar las actualizaciones. Encontrará soporte técnico en el sitio web de soporte de Lenovo en: http://www.lenovo.com/support Guía del usuario de ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 37
Nota: Es recomendable desinstalar cualquier software de la tarjeta mSATA instalado anteriormente antes de instalar el software Lenovo ExpressCache. Para instalar el software Lenovo ExpressCache en el sistema operativo Windows 7, Windows 8 o Windows 8.1 haga lo siguiente: 1. Vaya a http://www.lenovo.com/support/LenovoExpressCache.
Seite 38
Guía del usuario de ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 39
1. Pulse Borrar la memoria caché en la ventana ExpressCache. 2. Pulse Aceptar para confirmar la operación. Comprobación del estado de funcionamiento Para revisar el estado de funcionamiento del software Lenovo ExpressCache, pulse el icono ? de la esquina superior derecha de la ventana ExpressCache. Se mostrará un menú.
Seite 40
Después de instalar el software Lenovo ExpressCache, el icono aparece en el área de notificaciones de Windows. Puede iniciar o salir de la aplicación ExpressCache a través de una pulsación con el botón derecho del ratón en el icono de Lenovo ExpressCache. Guía del usuario de ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 41
El color del icono de Lenovo ExpressCache indica el estado de almacenamiento en caché actual: • Verde: El almacenamiento en caché está habilitado. • Rojo: El almacenamiento en caché está deshabilitado. Capítulo 4. Uso del software Lenovo ExpressCache 41...
Seite 42
Guía del usuario de ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 43
Description du produit La carte mSATA permet d'accélérer le démarrage de l'ordinateur et de réduire le temps ® de réponse et de chargement de l'application. Après avoir activé le logiciel Lenovo ExpressCache sur votre ordinateur, la carte mSATA met automatiquement en cache les fichiers les plus couramment utilisés afin d'améliorer les performances de stockage.
Seite 44
Guide d'utilisation du ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 46
Remarque : Consultez le site Web du support Lenovo pour obtenir les toutes dernières mises à jour disponibles pour le BIOS, les utilitaires, les pilotes de périphérique et les autres applications logicielles. Suivez les instructions fournies par le site Web pour télécharger et installer les mises à...
Seite 47
Remarque : Il est recommandé de désinstaller tout logiciel de carte mSATA précédemment installé avant de procéder à l'installation du logiciel Lenovo ExpressCache. Pour installer le logiciel Lenovo ExpressCache sous Windows 7, Windows 8 ou Windows 8.1, procédez comme suit : 1. Accédez au site Web suivant : http://www.lenovo.com/support/LenovoExpressCache.
Seite 48
Guide d'utilisation du ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 49
1. Désélectionnez ou sélectionnez Activer mise en cache dans la fenêtre ExpressCache. 2. Cliquez sur OK pour confirmer l'opération. Remarque : Par défaut, la mise en cache est activée lorsque le logiciel Lenovo ExpressCache est installé. Effacement de la mémoire cache Pour effacer la mémoire cache, procédez comme suit :...
Seite 50
Windows pour activer le démarrage automatique du logiciel Lenovo ExpressCache au démarrage du système d'exploitation. • Cliquez sur A propos de pour afficher la version du logiciel Lenovo ExpressCache. Affichage de l'icône ExpressCache Après l'installation du logiciel Lenovo ExpressCache, l'icône Lenovo ExpressCache s'affiche dans la zone de notification Windows.
Seite 51
• Vert : la mise en cache est activée. • Rouge : la mise en cache est désactivée. Chapitre 4. Utilisation du logiciel Lenovo ExpressCache 51...
Seite 52
Guide d'utilisation du ThinkPad 16GB mSATA Solid State Cache Drive...
Il pacchetto di opzioni include i seguenti componenti: • ThinkPad 16GB mSATA Solid State Cache Drive • Poster della garanzia • Viti (2) • Guida per l'utente...
Seite 54
• Microsoft Windows 7 Guida per l'utente di ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 56
Nota: ricercare nel sito Web dell'assistenza Lenovo gli ultimi aggiornamenti per il BIOS (basic input/output system code), i programmi di utilità, i driver di dispositivo e altre applicazioni software. Seguire le istruzioni fornite dal sito Web per scaricare e installare gli aggiornamenti.
Seite 57
Capitolo 3. Installazione del software Lenovo ExpressCache Nota: prima di installare il software Lenovo ExpressCache, si consiglia di disinstallare eventuale software della scheda mSATA installato precedentemente. Per installare il software Lenovo ExpressCache sul sistema operativo Windows 7, Windows 8 o Windows 8.1, procedere nel modo seguente: 1.
Seite 58
Guida per l'utente di ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 59
2. Fare clic su OK per confermare l'operazione. Verifica dello stato operativo Per verificare lo stato operativo del software Lenovo ExpressCache, fare clic sull'icona ? nell'angolo in alto a destra della finestra ExpressCache. Viene visualizzato un menu. • Fare clic su Guida per accedere al sito Web dell'assistenza dove è possibile trovare le domande più...
Seite 60
• Fare clic su Non avviare con Windows per disabilitare o su Avvia con Windows per abilitare l'avvio automatico del software Lenovo ExpressCache quando si avvia il sistema operativo. • Fare clic Informazioni su per visualizzare la versione del software Lenovo ExpressCache.
Seite 61
Il colore dell'icona Lenovo ExpressCache indica lo stato corrente della memorizzazione nella cache: • Verde: la memorizzazione nella cache è abilitata. • Rossa: la memorizzazione nella cache è disabilitata. Capitolo 4. Utilizzo del software Lenovo ExpressCache 61...
Seite 62
Guida per l'utente di ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 72
ThinkPad 16GB mSATA Solid State Cache Drive ユーザー・ガイド...
Seite 73
O pacote de opções contém o seguinte: • ThinkPad 16GB mSATA Solid State Cache Drive • Pôster de Garantia • Parafusos (2) • Guia do Usuário Requisitos de sistema operacional Para usar o cartão mSATA com seu computador, certifique-se de que esteja usando...
Seite 74
• Microsoft Windows 7 Guia do Usuário do ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 76
Nota: Verifique o Web site de suporte da Lenovo para obter as atualizações mais recentes para o código BIOS (Basic Input/Output System), programas utilitários, drivers de dispositivo e outros aplicativos de software. Siga as instruções fornecidas pelo Web site para fazer download e instalar as atualizações.
Seite 77
Nota: Recomenda-se a desinstalação de qualquer software de cartão mSATA previamente instalado antes da instalação do Lenovo ExpressCache. Para instalar o software Lenovo ExpressCache no sistema operacional Windows 7, Windows 8 ou Windows 8.1, faça o seguinte: 1. Acesse http://www.lenovo.com/support/LenovoExpressCache.
Seite 78
Guia do Usuário do ThinkPad 16GB mSATA Solid State Cache Drive...
Seite 79
Este capítulo contém instruções de como usar o software Lenovo ExpressCache. Desativando e ativando o cache Para desativar ou ativar o cache após a instalação do software Lenovo ExpressCache, faça o seguinte: 1. Desmarque ou selecione Ativar Cache na janela do ExpressCache.
Seite 80
Após a instalação do software Lenovo ExpressCache, o ícone do Lenovo ExpressCache é exibido na área de notificação do Windows. Você pode iniciar ou sair do aplicativo ExpressCache ao clicar com o botão direito do mouse no ícone do Lenovo ExpressCache.
Seite 81
• Verde: o cache está ativado. • Vermelho: o cache está desativado. Capítulo 4. Usando o software Lenovo ExpressCache 81...
Seite 82
Guia do Usuário do ThinkPad 16GB mSATA Solid State Cache Drive...
často používané súbory do vyrovnávacej pamäte, aby sa zvýšil celkový výkon ukladacieho priestoru. Balenie produktu obsahuje: • ThinkPad 16GB mSATA Solid State Cache Drive • Leták so záručnými informáciami • Skrutky (2) • Používateľská príručka Požiadavky na operačný...
Seite 84
• Microsoft Windows 7 ThinkPad 16GB mSATA Solid State Cache Drive – Používateľská príručka...
Seite 86
Prevezmite a nainštalujte aktualizácie podľa pokynov uvedených na webovej lokalite. Online technickú podporu môžete získať z webovej stránky podpory spoločnosti Lenovo na adrese: http://www.lenovo.com/support/ ThinkPad 16GB mSATA Solid State Cache Drive – Používateľská príručka...
Seite 87
Poznámka: Pred inštaláciou softvéru Lenovo ExpressCache sa odporúča odinštalovať všetok nainštalovaný softvér pre kartu s rozhraním mSATA. Ak chcete nainštalovať softvér Lenovo ExpressCache v operačnom systéme Windows 7, Windows 8 alebo Windows 8.1, postupujte takto: 1. Prejdite na adresu http://www.lenovo.com/support/LenovoExpressCache.
Seite 88
ThinkPad 16GB mSATA Solid State Cache Drive – Používateľská príručka...
Seite 89
2. Kliknutím na tlačidlo OK potvrďte operáciu. Kontrola stavu Ak chcete skontrolovať stav softvéru Lenovo ExpressCache, kliknite na ikonu ? v pravom hornom rohu okna softvéru ExpressCache. Zobrazí sa ponuka. • Kliknutím na položku Pomoc prejdete na webovú lokalitu podpory, na ktorej nájdete najčastejšie otázky a tipy na riešenie problémov.
Seite 90
• Kliknutím na položku Informácie zobrazíte verziu softvéru Lenovo ExpressCache. Zobrazenie ikony softvéru ExpressCache Po nainštalovaní softvéru Lenovo ExpressCache sa v oblasti oznámení systému Windows zobrazí ikona softvéru Lenovo ExpressCache. Softvér ExpressCache môžete spustiť alebo ukončiť kliknutím pravým tlačidlom myši na ikonu softvéru Lenovo ExpressCache.
Seite 91
Farba ikony softvéru Lenovo ExpressCache informuje o aktuálnom stave ukladania do vyrovnávacej pamäte: • Zelená: Ukladanie do vyrovnávacej pamäte je zapnuté. • Červená: Ukladanie do vyrovnávacej pamäte je vypnuté. Kapitola 4. Používanie softvéru Lenovo ExpressCache 91...
Seite 92
ThinkPad 16GB mSATA Solid State Cache Drive – Používateľská príručka...
Seite 93
Ürün tanımı mSATA kartı, bilgisayarın başlatma işlemini hızlandırmak ve uygulamanın yüklenmesi ® ve yanıt vermesi süresini azaltmak için bir çözüm sağlar. Bilgisayarınızda Lenovo ExpressCache yazılımı etkinleştirildikten sonra mSATA kartı genel depolama performansını artırmak için yaygın olarak kullanılan dosyaları otomatik olarak önbelleğe alır.
Seite 94
• Microsoft Windows 7 ThinkPad 16GB mSATA Solid State Cache Drive Kullanma Kılavuzu...
Seite 96
Güncellemeleri karşıdan yükleyip kurmak için Web sitesi tarafından sağlanan yönergeleri izleyin. http://www.lenovo.com/support adresindeki Lenovo Destek Web sitesinden çevrimiçi teknik destek alabilirsiniz. ThinkPad 16GB mSATA Solid State Cache Drive Kullanma Kılavuzu...
Seite 97
Bölüm 3. Lenovo ExpressCache yazılımını kurma Not: Lenovo ExpressCache yazılımını kurmadan önce önceden kurulu olan mSATA kartı yazılımını kaldırmanız önerilir. Lenovo ExpressCache yazılımını Windows 7, Windows 8 ya da Windows 8.1 işletim sistemlerinden birine kurmak için aşağıdakileri yapın: 1. http://www.lenovo.com/support/LenovoExpressCache adresine gidin.
Seite 98
ThinkPad 16GB mSATA Solid State Cache Drive Kullanma Kılavuzu...
Seite 99
Bölüm 4. Lenovo ExpressCache yazılımını kullanma Bu bölümde Lenovo ExpressCache yazılımının nasıl kullanılacağına ilişkin yönergeler yer alır. Önbelleğe almayı devre dışı bırakma ve etkinleştirme Lenovo ExpressCache yazılımı kurduktan sonra önbelleğe almayı etkinleştirmek veya devre dışı bırakmak için aşağıdakileri yapın: 1. ExpressCache penceresinde Enable Caching (Önbelleği Almayı Etkinleştir) öğesinin seçimini kaldırın veya bu öğeyi seçin.
Seite 100
Turn on write-cache buffer flushing (Önbelleğe yazma arabelleğini temizlemeyi aç) öğesini tıklatmanız önerilir. • İşletim sistemini başlattığınızda Lenovo ExpressCache yazılımını devre dışı bırakmak için Do not start with Windows (Windows ile başlama)öğesini veya etkinleştirmek için Start with Windows (Windows ile başlat) öğesini tıklatın.
Seite 101
ExpressCache simgesini görüntüleme Lenovo ExpressCache yazılımı kurulduktan sonra, Windows bildirim alanında Lenovo ExpressCache simgesi görüntülenir. Lenovo ExpressCache simgesini sağ tıklatarak ExpressCache uygulamasını başlatabilir veya bu uygulamadan çıkabilirsiniz. Lenovo ExpressCache simgesinin rengi, geçerli önbelleğe alma durumunu belirtir: • Yeşil: Önbelleğe alma etkindir.
Seite 102
ThinkPad 16GB mSATA Solid State Cache Drive Kullanma Kılavuzu...
Seite 103
16GB mSATA Solid State Cache Drive(此后简称为“mSATA ® 卡”)的产品信息。 产品描述 mSATA 卡提供了一种解决方案,可加快计算机的启动过程并缩短应用程序加载和响应 的时间。在计算机上启用 Lenovo ExpressCache 软件后,mSATA 卡自动高速缓存 ® 常用的文件以改善总体存储性能。 选件包中包含: • ThinkPad 16GB mSATA Solid State Cache Drive 保修手册 • 螺钉(2 个) • 用户指南 • 对操作系统的要求 要将 mSATA 卡用于计算机,请确保使用的是以下操作系统之一: • Microsoft Windows ®...
Seite 104
ThinkPad 16GB mSATA Solid State Cache Drive 用户指南...
Seite 119
Appendix A. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo The Lenovo logo ThinkPad ExpressCache is a trademark of Condusiv Technologies. Microsoft and Windows are trademarks of the Microsoft group of companies.
