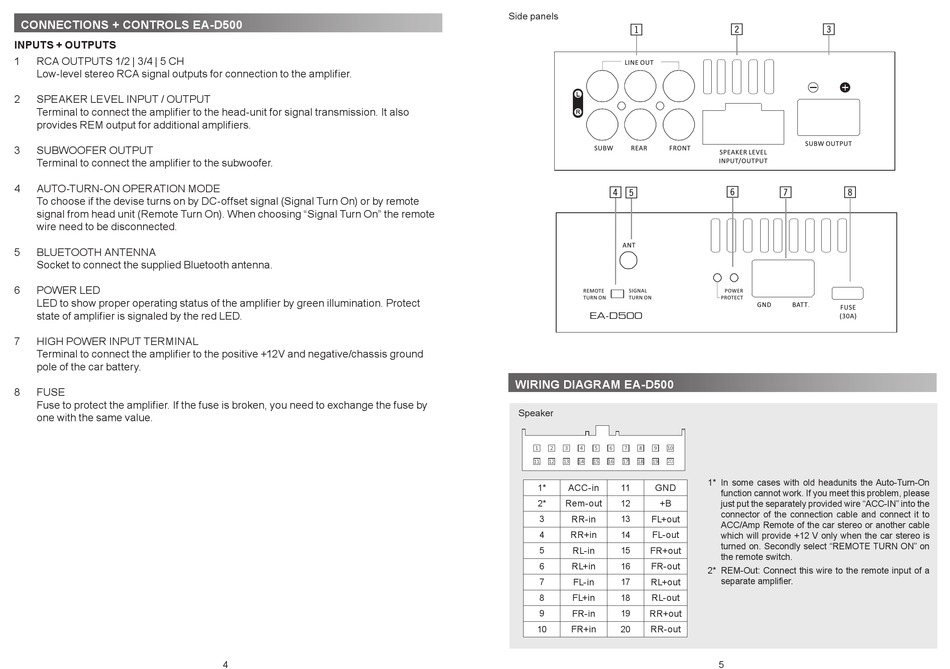

CONNECTIONS + CONTROLS EA-D500
INPUTS + OUTPUTS
1
RCA OUTPUTS 1/2 | 3/4 | 5 CH
Low-level stereo RCA signal outputs for connection to the amplifier.
2
SPEAKER LEVEL INPUT / OUTPUT
Terminal to connect the amplifier to the head-unit for signal transmission. It also
provides REM output for additional amplifiers.
3
SUBWOOFER OUTPUT
Terminal to connect the amplifier to the subwoofer.
4
AUTO-TURN-ON OPERATION MODE
To choose if the devise turns on by DC-offset signal (Signal Turn On) or by remote
signal from head unit (Remote Turn On). When choosing "Signal Turn On" the remote
wire need to be disconnected.
5
BLUETOOTH ANTENNA
Socket to connect the supplied Bluetooth antenna.
6
POWER LED
LED to show proper operating status of the amplifier by green illumination. Protect
state of amplifier is signaled by the red LED.
7
HIGH POWER INPUT TERMINAL
Terminal to connect the amplifier to the positive +12V and negative/chassis ground
pole of the car battery.
8
FUSE
Fuse to protect the amplifier. If the fuse is broken, you need to exchange the fuse by
one with the same value.
4
Side panels
1
4
5
EA-D500
EA-D500
WIRING DIAGRAM EA-D500
Speaker
20
1*
ACC-in
11
GND
2*
Rem-out
12
+B
3
RR-in
13
FL+out
4
RR+in
14
FL-out
RL-in
FR+out
5
15
6
RL+in
16
FR-out
7
FL-in
17
RL+out
FL+in
RL-out
8
18
FR-in
RR+out
9
19
10
FR+in
20
RR-out
2
3
6
7
8
1* In some cases with old headunits the Auto-Turn-On
function cannot work. If you meet this problem, please
just put the separately provided wire "ACC-IN" into the
connector of the connection cable and connect it to
ACC/Amp Remote of the car stereo or another cable
which will provide +12 V only when the car stereo is
turned on. Secondly select "REMOTE TURN ON" on
the remote switch.
2* REM-Out: Connect this wire to the remote input of a
separate amplifier.
