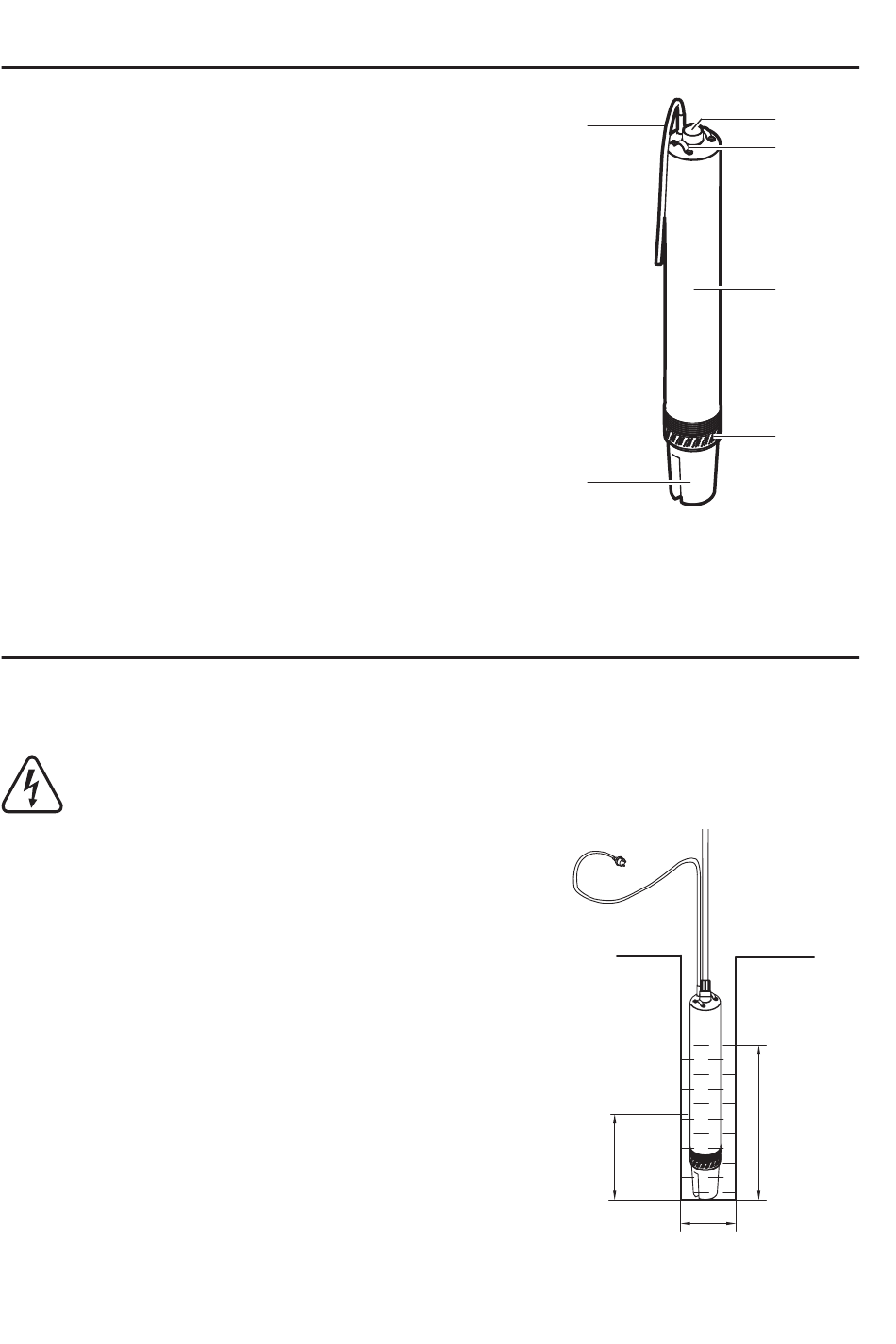

7. Operating Elements

1 Outlet opening (pressure side of the pump)
2 2x lifting eyes
3 Pump housing
4 Suction holes
5 Base cover
6 Power cord with IP44 protective contact mains plug

8. Placing the deep well pump

• Attach the supplied rope or other sufficiently strong, waterproof rope to the two lifting eyes (2), for example, to lower
the deep well pump into the well. Ensure a secure attachment.
The deep well pump must never be attached via the power cord! Otherwise the cable may get damaged,
and there is a risk of an electric shock! The deep well pump must also not be attached using the hose.
• For the correct positioning of the deep well pump, see the
adjacent illustration.
A = maximum immersion depth 15 m
B = minimum diameter 11 cm
C = minimum immersion depth 28 cm
