Intended use
- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 VDC
- Usable for smoke extraction, D+H Euro-SHEV
in accordance with DIN EN 12101-2 as well
as daily ventilation
- Suitable for indoor mounting only
Safety notes
Operating voltage 24 VDC!
Do not connect directly to the mains supply!
- Connection must be carried out by a
certified electrical technician
- Danger of crushing hands and fingers!
- Keep people away from the operating area of
the drive
- Keep children away from the control
- Use only in dry rooms
- Suitable for indoor mounting only.
Use rain detector in locations where there is a risk
of rain
- Use unmodified original D+H parts only
Observe enclosed red safety note!

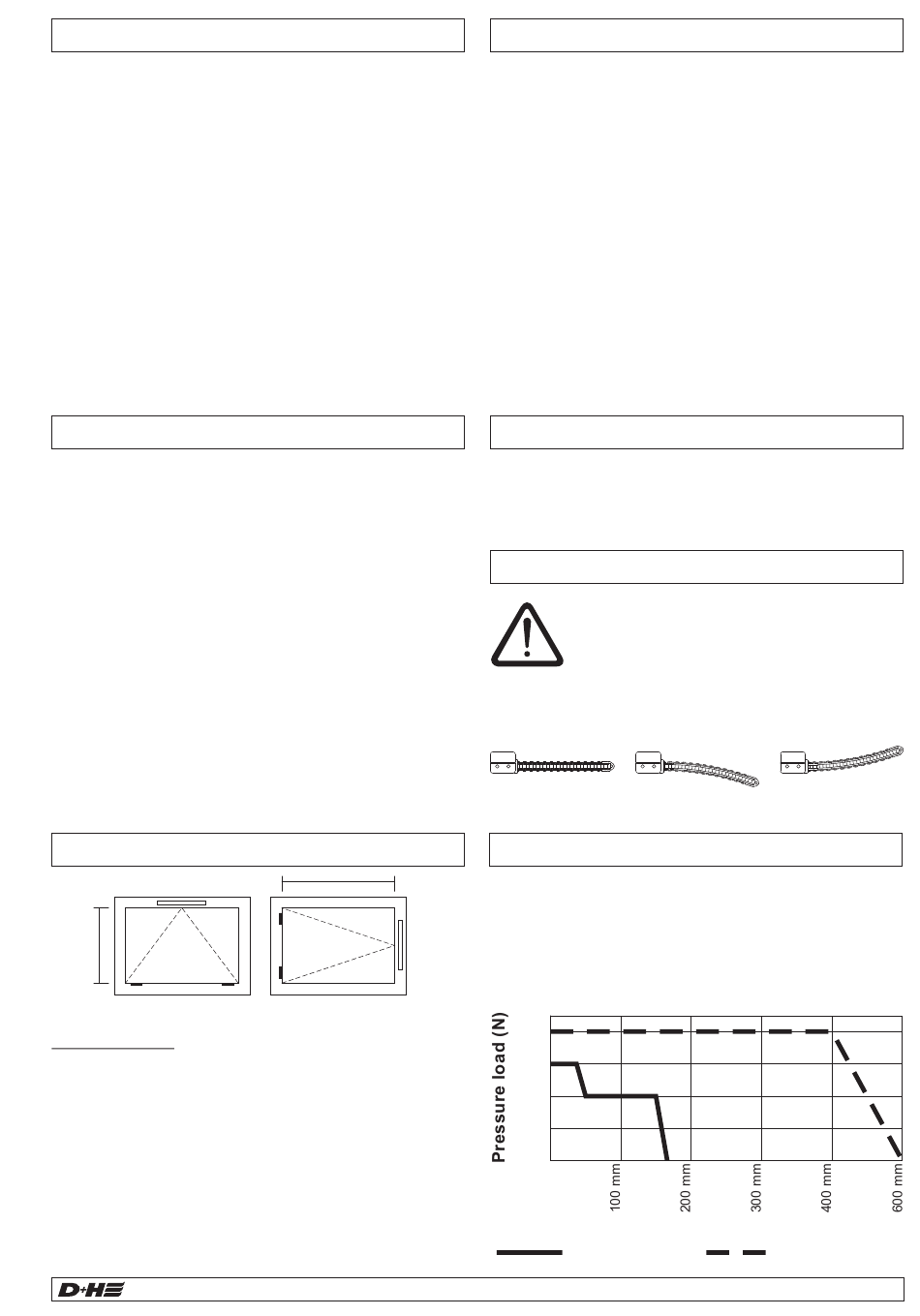

Minimum sash height/ -width
x
The details apply to a
non-rotational installation of the drive!
Standard chain:
Minimum size (mm) = Stroke (mm) x 3.9
Side bow chain -SBD:
Stroke Minimum size (x)
400 mm = 650 mm
500 mm = 800 mm
600 mm = 950 mm
99.823.42 2.2/09/13
Features
- Microprocessor controlled electronics
- Adjusting of stroke with PLP1 directly at the drive
- Individually programmable via Powerline (PLP1
- SHEV-high speed function (fast-running
- Protection system for the main closing edge
- Especially silent in ventilation operation
- Current and signals loopable for max. 3 drives in a
- Tandem-safety function for operation of 2 drives
- Power supply from left or right possible
- Locking relief after closing
Scope of supply
Drive unit with 2.5 m silicone cable. Depending on
the type of window, different bracket sets are
available separately.
Chain type
Attention with side bow chains SBD and SBU
Standard chain
Pressure load diagram
x
Observe maximum pressure load of the chain!
Maximum pressure load of chain is not automatically
identical with maximum pressure force of the drive!
English
and PDA service tool)
feature in OPEN-direction)
because of reduced motor speed
series without a tandem mode (TMS)
on one sash
The mounting instructions for the bracket
set must be observed before mounting.
Always observe and comply with the
information in the mounting instructions.
Side bow chain
-SBD
200N
150N
100N
50N
-SBD / -SBU
CDC 200/600 (-SBD)
Side bow chain
-SBU
Stroke
Standard
