Godex EZ2000 Plus Bedienungsanleitung Seite 11

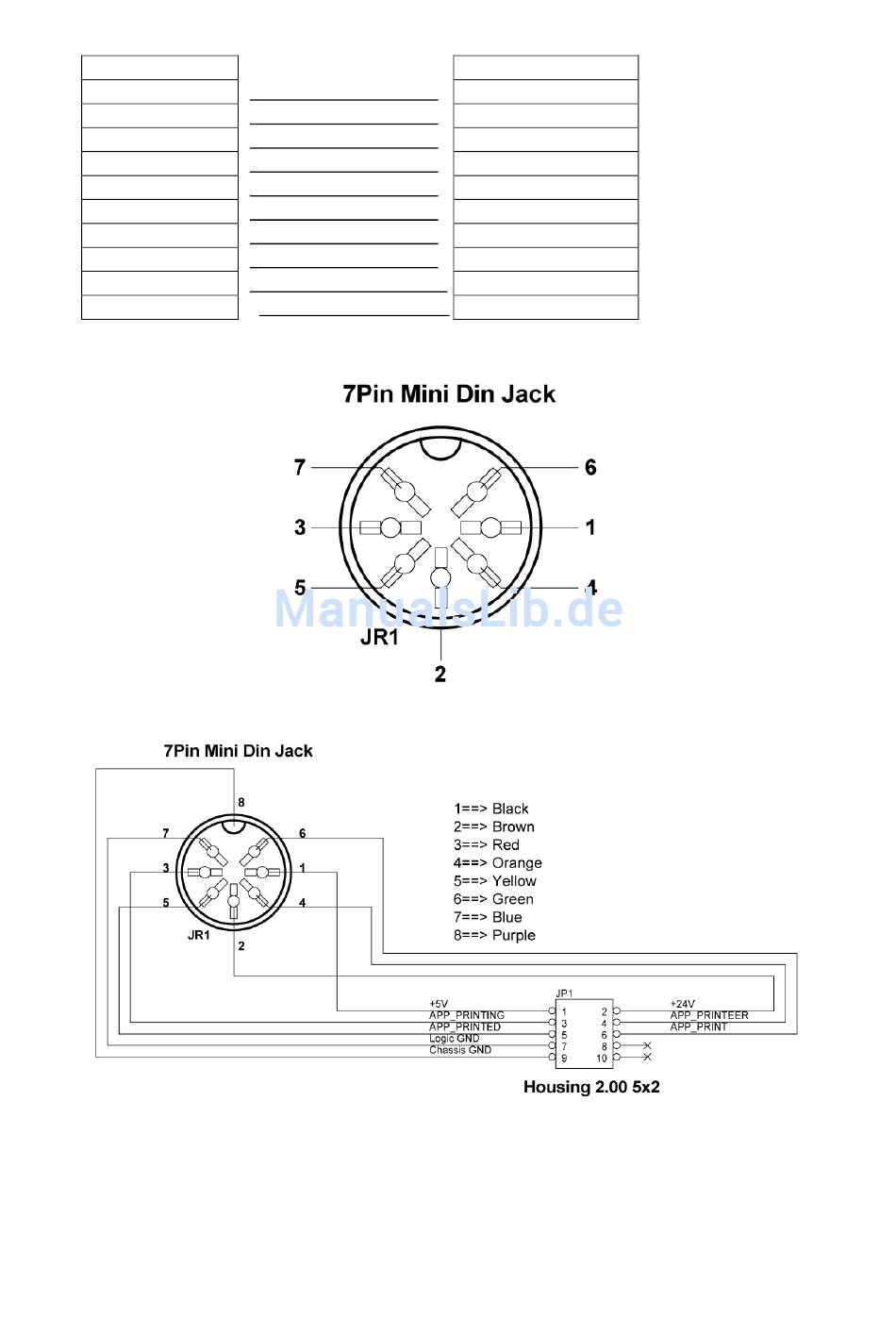

Applicator wafer
+5V
1
+24V
2
Printing (out)
3
Print error (out)
4
Printed (out)
5
Print (in)
6
GND
7
N.C
8
GND
9
N.C
10
EZ2000Plus / EZ6000 Plus User's Manual
Applicator Modul
+5V
1
+24V
2
Printing
3
Print error
4
Printed
5
Print
6
GND
7
8
9
10
10
