Led Indicators - Axis Q3505–SVE Installationsanleitung

7

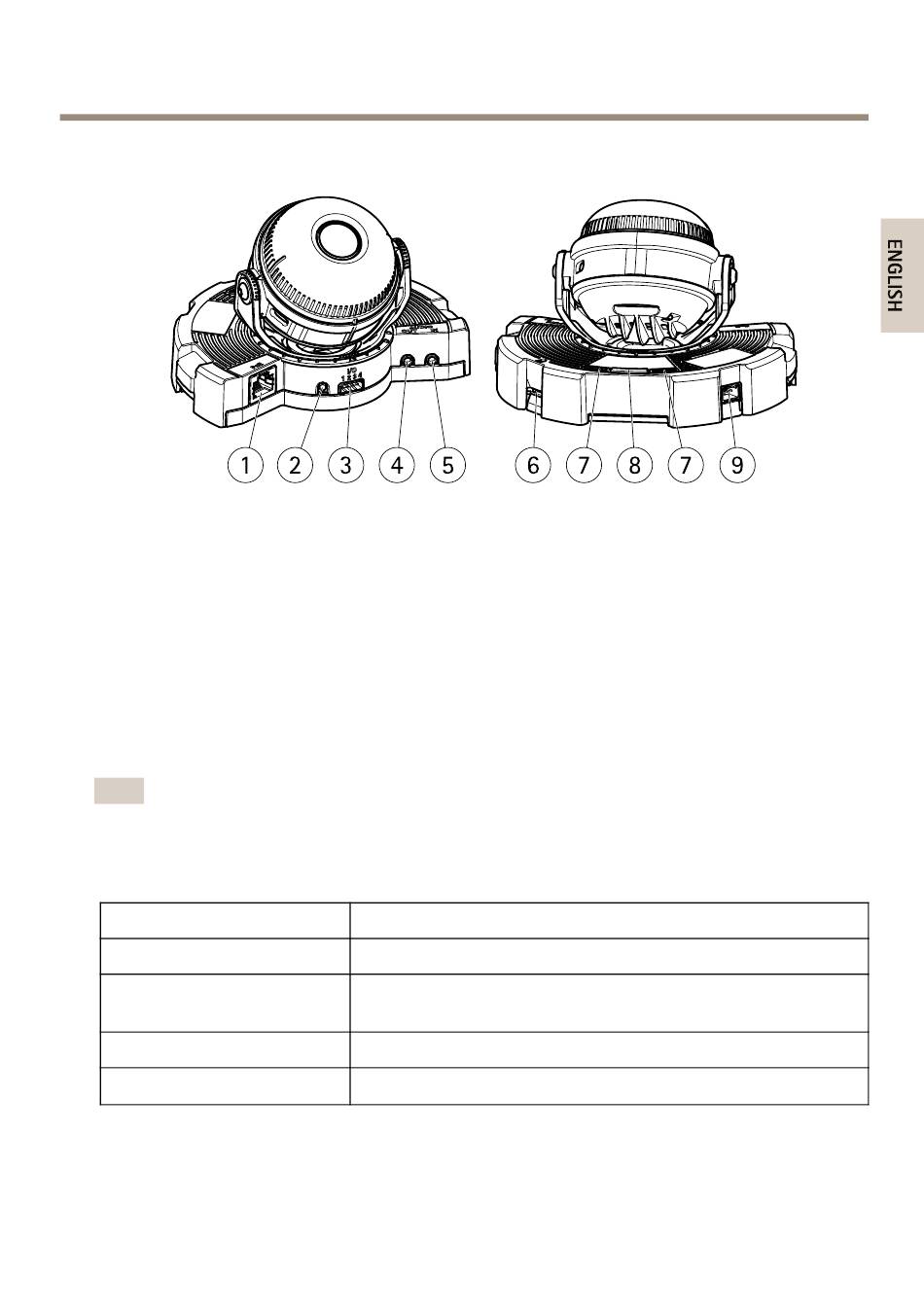

Dome cover
1
1 Network connector
2
Control button
3
I/O connector
4
Audio in connector
5
Audio out connector
6
SD card slot
7
Status LED
8
Function button
9
Not used

LED Indicators

Note
• The Status LED can be configured to flash while an event is active.
• The Status LED can be configured to flash for identifying the unit. Go to Setup > System
Options > Maintenance .
Status LED
Unlit
Green
Amber
Amber/Red
AXIS Q3505–SVE Network Camera
2 3 4 5
Indication
Connection and normal operation.
Shows steady green for 10 seconds for normal operation after
startup completed.
Steady during startup. Flashes during firmware upgrade.
Flashes amber/red if network connection is unavailable or lost.
