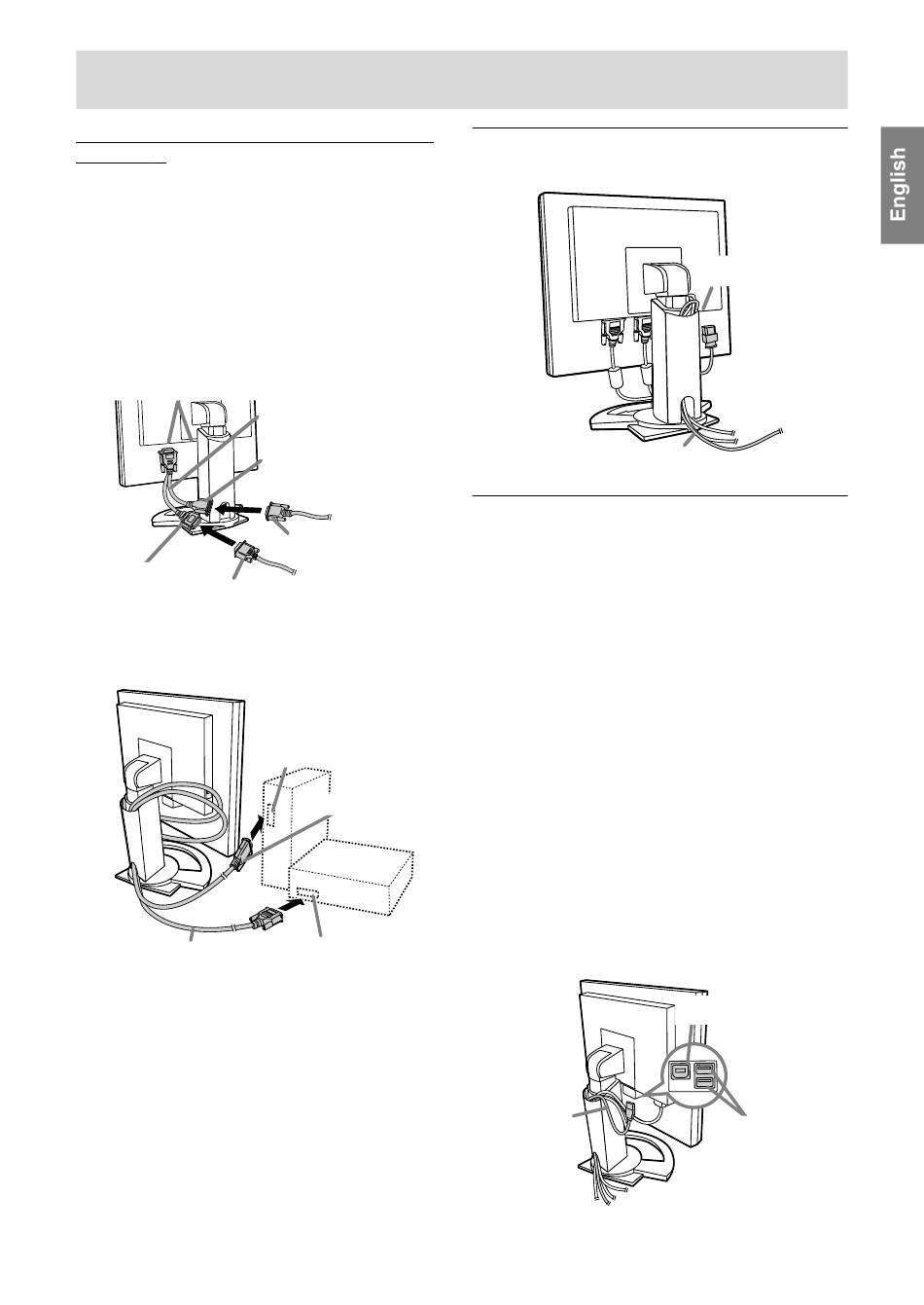

Connecting the monitor and turning the monitor on and off
When connecting using a separately sold 2-
input cable
The separately sold 2-input cable (NL-C03J)
enables connection between the DVI-I input
terminal on the monitor and the two PCs.
(One analog and one digital connection.)
1.Connect the 2-input cable to the DVI-I input
terminal of the monitor, and then connect the
analog signal cable (commercially available) and
the digital signal cable to the 2-input cable.
Input terminal 1 and 2
You can connect to
either side.
DVI-D24 pin
Digital signal cable
- For analog connection, use the commercially
available analog signal cable (both ends
should be mini D-sub 15 pin).
2.Connect each signal cable to the computers.
Digital signal cable
- Paying attention to connector orientation, firmly
insert the signal cable into the PC, and then
tighten the screws at both sides.
Notes:
- When using the 2-input cable, set the connecting
input terminal [INPUT-1] or [INPUT-2] to [2LINES]
under the MODE SELECT-1 Menu. (p.20, 23)
- The monitor connected to the 2-input cable by
analog connection may not be automatically
recognized and setup under Plug & Play. Perform
storage of setup information manually. (p. 29)
2-input cable
(purchased separately)
mini D-sub 15 pin
Analog signal cable
(commercially available)
Analog RGB
output terminal
Analog signal cable
Digital RGB output terminal
Connecting the monitor to a power
source
Power cord

Connecting a USB device

This monitor is equipped with a USB standard
(Rev. 1.1) self-powered hub.
Downstream (2 ports)
Each of these ports enables connection of a USB
device with working current up to 500 mA.
Upstream (1 port)
This enables connection of a USB compatible
computer or USB hub.
Notes:
- If a USB cable is required, please use the one
included.
- Before connecting, ensure that the shape of the
USB cable connector is correct.
- For information regarding the USB function (such
as set-up) please refer to the operation manual
of the computer to be connected.
- Some computers, OS and other devices may not
be able to be activated. To ascertain a certain
device's USB compatibility, please contact the
manufacturer of the device.
USB cable
13
Power terminal
AC outlet
Upstream
Downstream
