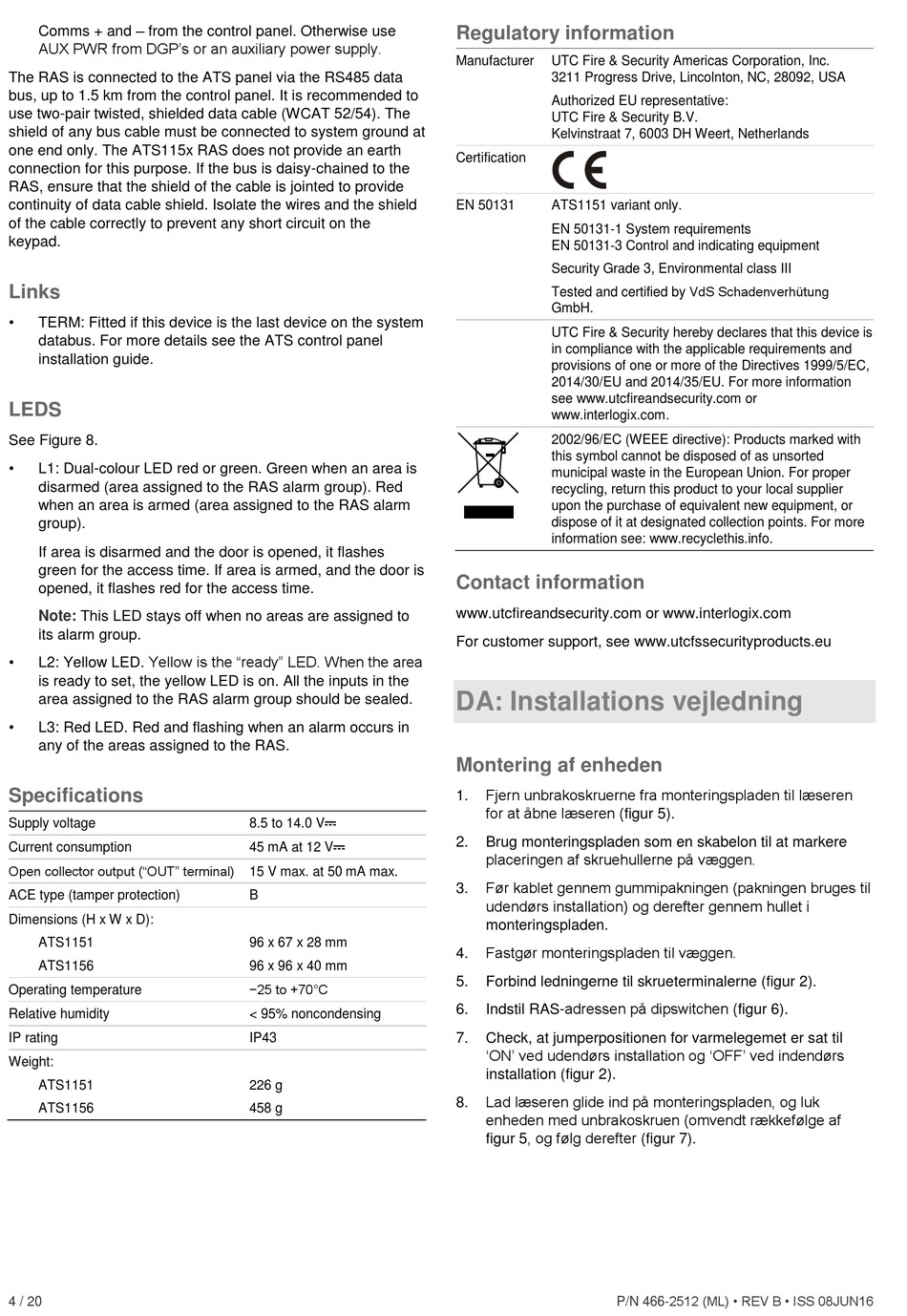

Comms + and – from the control panel. Otherwise use
AUX PWR from DGP's or an auxiliary power supply.
The RAS is connected to the ATS panel via the RS485 data
bus, up to 1.5 km from the control panel. It is recommended to
use two-pair twisted, shielded data cable (WCAT 52/54). The
shield of any bus cable must be connected to system ground at
one end only. The ATS115x RAS does not provide an earth
connection for this purpose. If the bus is daisy-chained to the
RAS, ensure that the shield of the cable is jointed to provide
continuity of data cable shield. Isolate the wires and the shield
of the cable correctly to prevent any short circuit on the
keypad.
Links
•
TERM: Fitted if this device is the last device on the system
databus. For more details see the ATS control panel
installation guide.
LEDS
See Figure 8.
•
L1: Dual-colour LED red or green. Green when an area is
disarmed (area assigned to the RAS alarm group). Red
when an area is armed (area assigned to the RAS alarm
group).
If area is disarmed and the door is opened, it flashes
green for the access time. If area is armed, and the door is
opened, it flashes red for the access time.
Note: This LED stays off when no areas are assigned to
its alarm group.
• L2: Yellow LED. Yellow is the "ready" LED. When the area
is ready to set, the yellow LED is on. All the inputs in the
area assigned to the RAS alarm group should be sealed.
•
L3: Red LED. Red and flashing when an alarm occurs in
any of the areas assigned to the RAS.

Specifications

Supply voltage
Current consumption
Open collector output ("OUT" terminal)
ACE type (tamper protection)
Dimensions (H x W x D):
ATS1151
ATS1156
Operating temperature
Relative humidity
IP rating
Weight:
ATS1151
ATS1156
4 / 20
8.5 to 14.0 V
45 mA at 12 V
15 V max. at 50 mA max.
B
96 x 67 x 28 mm
96 x 96 x 40 mm
−25 to +70°C
< 95% noncondensing
IP43
226 g
458 g
Regulatory information
Manufacturer UTC Fire & Security Americas Corporation, Inc.
3211 Progress Drive, Lincolnton, NC, 28092, USA
Authorized EU representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Certification
EN 50131 ATS1151 variant only.
EN 50131-1 System requirements
EN 50131-3 Control and indicating equipment
Security Grade 3, Environmental class III
Tested and certified by VdS Schadenverhütung
GmbH.
UTC Fire & Security hereby declares that this device is
in compliance with the applicable requirements and
provisions of one or more of the Directives 1999/5/EC,
2014/30/EU and 2014/35/EU. For more information
see www.utcfireandsecurity.com or
www.interlogix.com.
2002/96/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see: www.recyclethis.info.
Contact information
www.utcfireandsecurity.com or www.interlogix.com
For customer support, see www.utcfssecurityproducts.eu

DA: Installations vejledning

Montering af enheden
Fjern unbrakoskruerne fra monteringspladen til læseren
1.
for at åbne læseren (figur 5).
2. Brug monteringspladen som en skabelon til at markere
placeringen af skruehullerne på væggen.
Før kablet gennem gummipakningen (pakningen bruges til
3.
udendørs installation) og derefter gennem hullet i
monteringspladen.
Fastgør monteringspladen til væggen.
4.
5. Forbind ledningerne til skrueterminalerne (figur 2).
Indstil RAS-adressen på dipswitchen (figur 6).
6.
7. Check, at jumperpositionen for varmelegemet er sat til
'ON' ved udendørs installation og 'OFF' ved indendørs
installation (figur 2).
Lad læseren glide ind på monteringspladen, og luk
8.
enheden med unbrakoskruen (omvendt rækkefølge af
figur 5, og følg derefter (figur 7).
