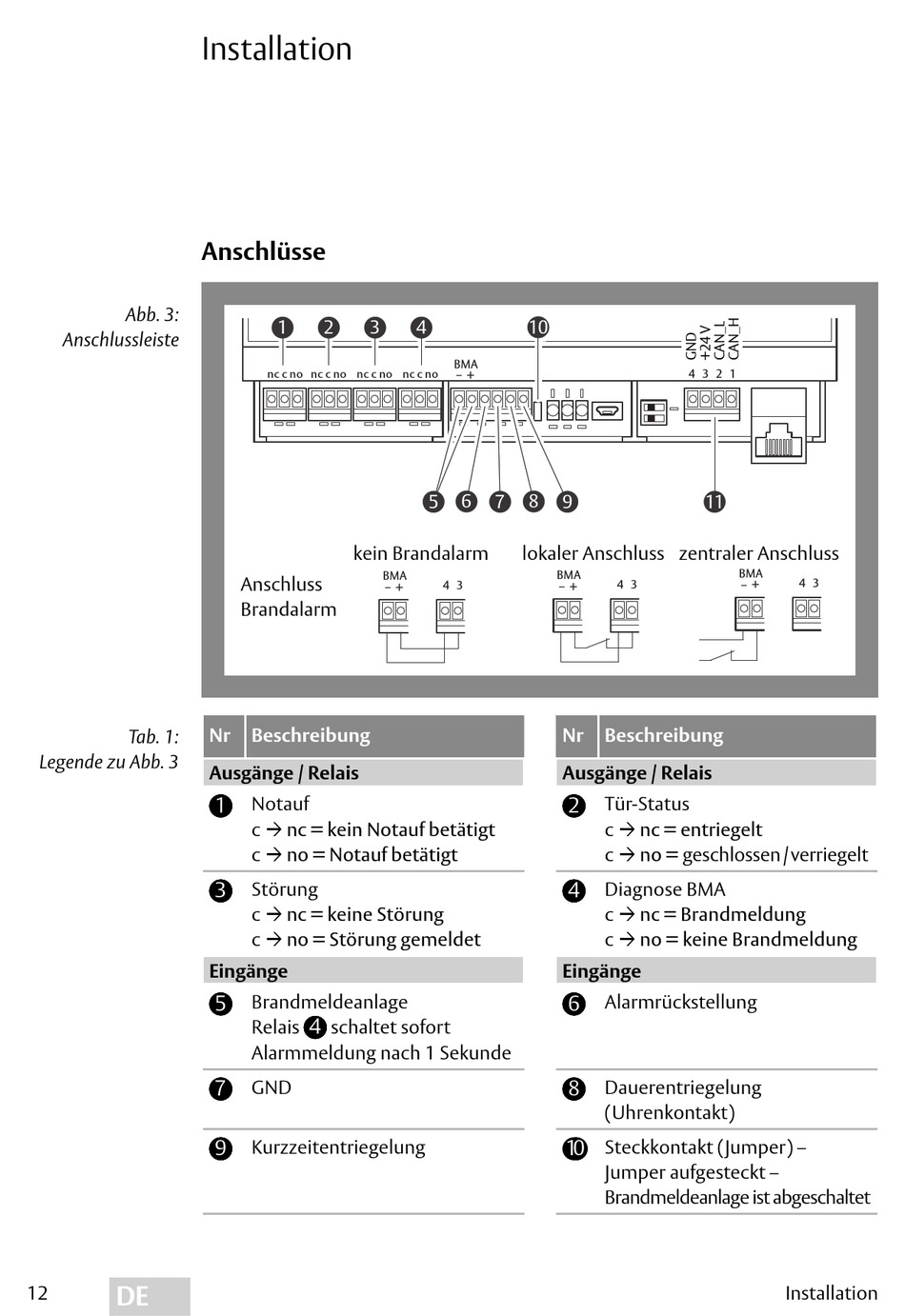

Abb. 3 :
Anschlussleiste
Tab. 1:
Legende zu Abb. 3
DE
12
Installation
Anschlüsse
1
2
3
nc c no
nc c no nc c no nc c no
kein Brandalarm
Anschluss
Brandalarm
Nr
Beschreibung
Ausgänge / Relais
1
Notauf
c
nc = kein Notauf betätigt
c
no = Notauf betätigt
3
Störung
c
nc = keine Störung
c
no = Störung gemeldet
Eingänge
5
Brandmeldeanlage
4
Relais
schaltet sofort
Alarmmeldung nach 1 Sekunde
7
GND
9
Kurzzeitentriegelung
4
10
BMA
– +
6
8
5
7
lokaler Anschluss zentraler Anschluss
BMA
4 3
– +
4 3 2 1
9
11
BMA
4 3
– +
Nr
Beschreibung
Ausgänge / Relais
2
Tür-Status
c
nc = entriegelt
c
no = geschlossen / verriegelt
4
Diagnose BMA
c
nc = Brandmeldung
c
no = keine Brandmeldung
Eingänge
6
Alarmrückstellung
8
Dauerentriegelung
(Uhrenkontakt)
1 0
Steckkontakt (Jumper) –
Jumper aufgesteckt –
Brandmeldeanlage ist abgeschaltet
BMA
4 3
– +
Installation
